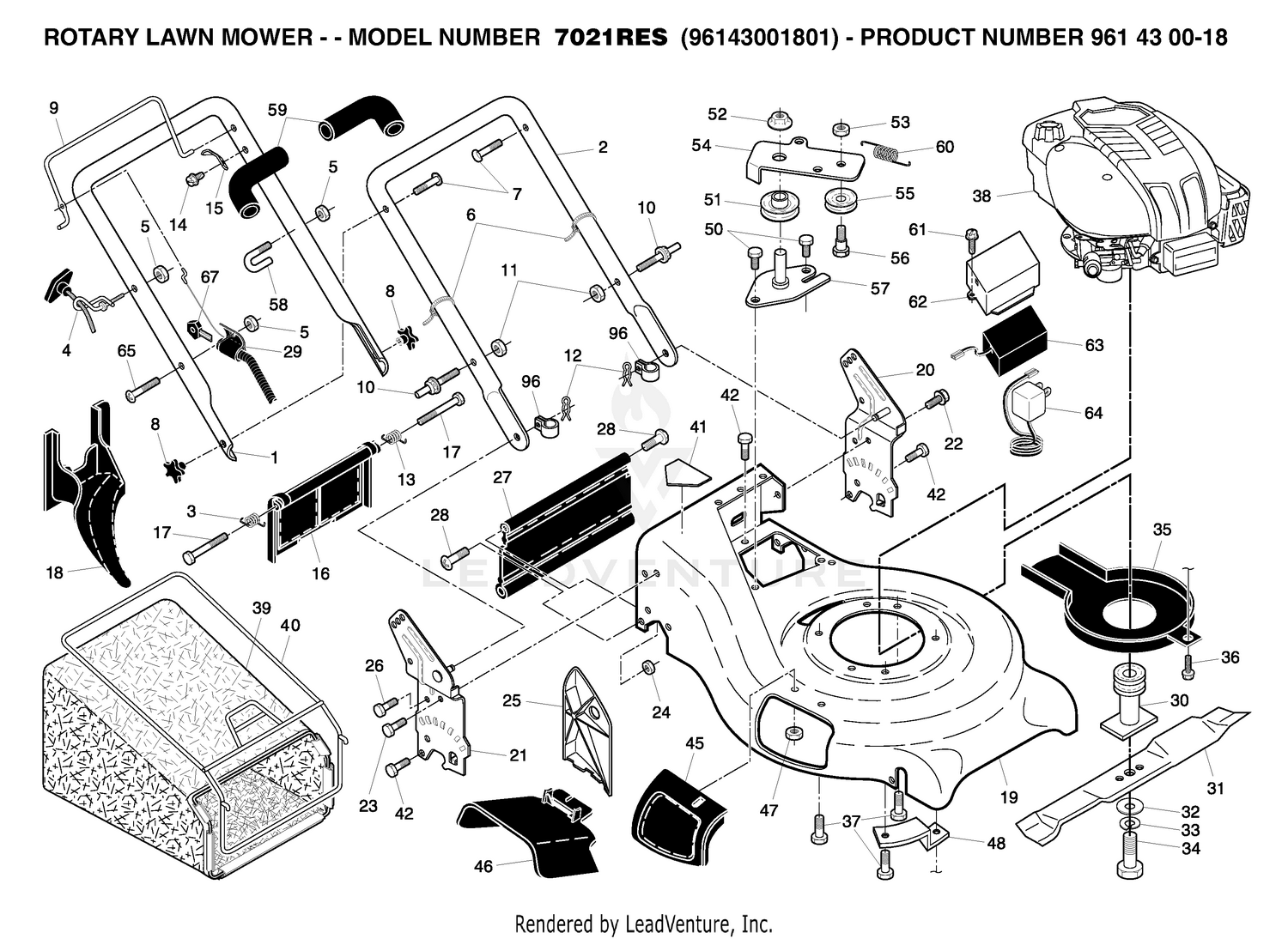

| Ref | Part Number | Description |
|---|
| 1 |
583444201 |
HANDLE.ASM.UP.OF/EZ.CR.GY.W/GR This part replaces 532199982. Price: $37.99 |
| 2 |
532197202 |
HANDLE.LOWER.21.GREY Price: $19.99 |
| 3 |
532186053 |
SPRING.LH.REAR.DOOR.21.RWGD Price: $8.99 |
| 4 |
586122501 |
KIT.ROPE.GUIDE.T-KNOB This part replaces 532194788. Price: $7.99 |
| 5 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 6 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $7.99 |
| 7 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 8 |
532185588 |
KNOB.HANDLE.STAR.HUSQ.GRAY Price: $5.99 |
| 9 |
532197019 |
BAIL.DSTRT.FL.AW.CREAS.ORANGE Price: $14.99 |
| 10 |
532188821 |
BOLT Price: $4.99 |
| 11 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 12 |
532051793 |
HAIRPIN COTTER Price: $5.99 |
| 13 |
532186052 |
SPRING.RH.REAR.DOOR.21.RWGD Price: $4.99 |
| 14 |
532750634 |
SCREW Price: $2.99 |
| 15 |
532850733 |
BRACKET.UPSTOP This part replaces 532125162. Price: $4.99 |
| 16 |
532190574 |
DOOR.REAR.PLASTIC.21.RWGD.BLAC Price: $36.99 |
| 17 |
532184193 |
BOLT Price: $4.99 |
| 18 |
532198170 |
PLUG.MULCHER.RGD.21. Price: $32.99 |
| 19 |
532403816 |
KIT.HSG.21.RGD.4PT.ORA Price: $121.99 |
| 20 |
532403296 |
LH HANDLE BRACKET ASSEMBLY Price: $11.99 |
| 21 |
532403297 |
BRKT.HANDLE.ASM.RWGD.21.RT.BLA Price: $11.99 |
| 22 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532150078. Price: $4.99 |
| 23 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 24 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 25 |
532161333 |
CLIPPING DEFLECTOR Price: $9.99 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 27 |
532192876 |
SKIRT.21.RWGD.BLACK Price: $6.99 |
| 28 |
532088652 |
HINGE SCREW Price: $3.99 |
| 29 |
532194953 |
CONTROL.COMBI.KEY.ASMR Price: $84.99 |
| 30 |
532421176 |
ADAPTER.BLADE/PULLEY.25M This part replaces 532189179. Price: $24.99 |
| 31 |
532189028 |
BLADE.21.PUSH/RWGD/FWG Price: $19.99 |
| 32 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 33 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 34 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 35 |
532188786 |
DEBRIS SHEILD Price: $6.99 |
| 36 |
532192325 |
SCREW.HEX.WSH Price: $4.99 |
| 37 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 39 |
532401683 |
GBAG.44710247.SILVER. Price: $99.99 |
| 40 |
532194644 |
FRAME.CATCHER.21.RGD.AG Price: $49.99 |
| 41 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532107339. Price: $3.99 |
| 42 |
532054583 |
SCREW Price: $4.99 |
| 45 |
532183058 |
DOOR.ASM.MULCH.21.RWD This part replaces 532190510. Price: $99.99 |
| 46 |
532169699 |
DEFLECTOR.21.MCUT.RWGD.GRAY This part replaces 532190512. Price: $8.99 |
| 47 |
532088349 |
NUT Price: $3.99 |
| 48 |
532188839 |
BRACKET.DEBRIS.SHIELD.BZP This part replaces 532190939. Price: $4.99 |
| 50 |
532057808 |
SCREW Price: $1.99 |
| 51 |
532193791 |
PULLEY.IDLER.V-BELT Price: $12.99 |
| 52 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 53 |
873930500 |
NUT.CENTERLOCK.5/16- This part replaces 532155552. Price: $3.99 |
| 54 |
532193792 |
ARM.IDLER.VIBRATORY.FINISH.EZ This part replaces 532196812. Price: $4.99 |
| 55 |
532166043 |
IDLER PULLEY Price: $27.99 |
| 56 |
532160829 |
SHOULDER BOLT Price: $4.99 |
| 57 |
532193315 |
BRACKET.IDLER.ASM.EZ Price: $5.99 |
| 58 |
532182003 |
CLIP Price: $5.99 |
| 59 |
532182748 |
GRIP.HANDLE.FOAM.WIDE.(1 SIDE) Price: $7.99 |
| 60 |
532406558 |
SPRING This part replaces 532182226. Price: $6.99 |
| 61 |
817411318 |
SCREW.HWH.13-16X1.12 Price: $2.99 |
| 62 |
532193476 |
BOX.BATTERY.21RD.,RWGD Price: $4.99 |
| 63 |
584353901 |
BATTERY.12V.22+RWGD.AGM This part replaces 532189589. Price: $84.99 |
| 64 |
597186301 |
Chargers This part replaces 532190097. Price: $32.99 |
| 65 |
532186159 |
SCREW.(COMBINATION CONTROL) Price: $2.99 |
| 67 |
532180331 |
KEY.MOLDED Price: $5.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
