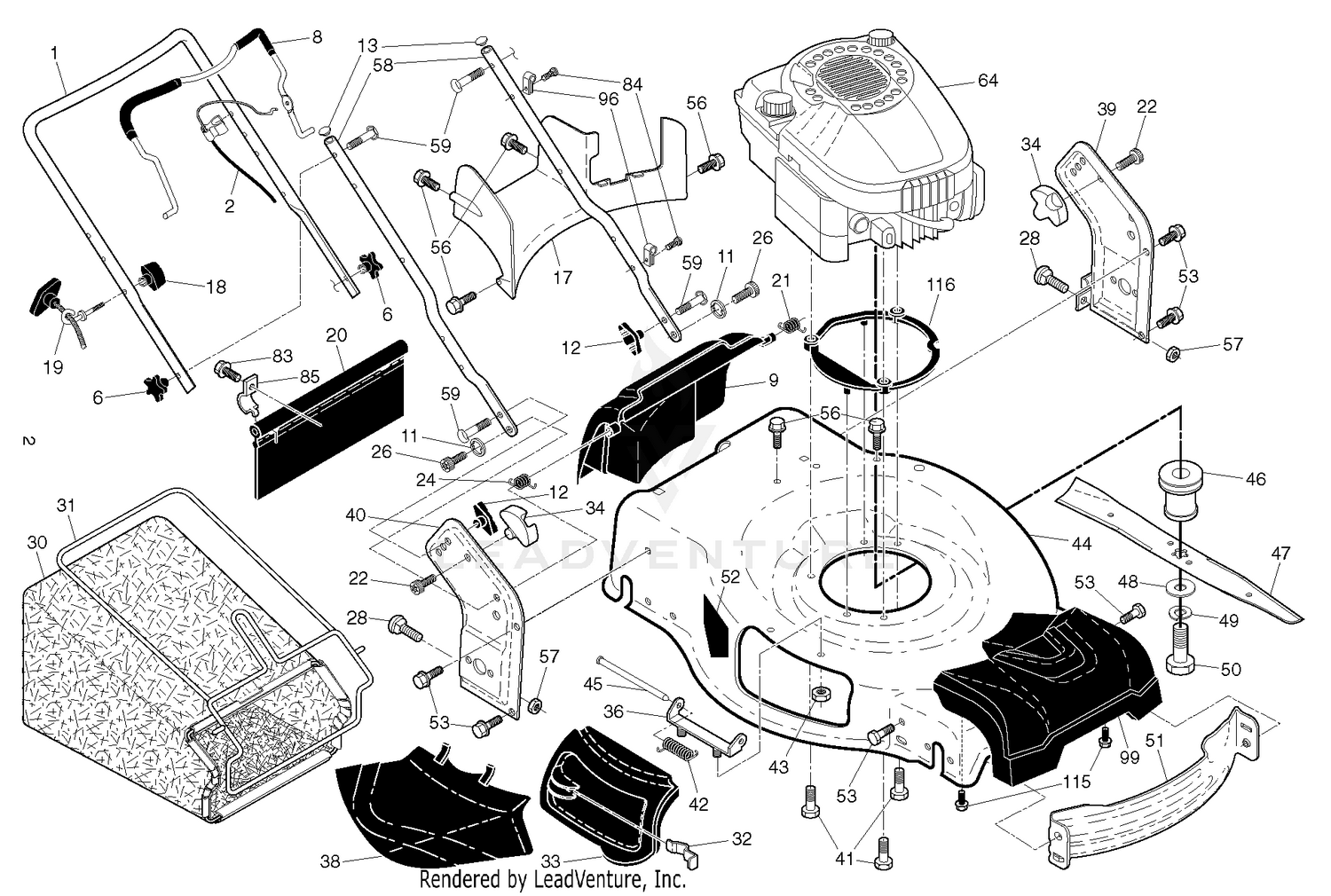

| Ref | Part Number | Description |
|---|
| 1 |
585854806 |
HANDLE.UP.3POS.BS.AW2.GREY Price: $49.99 |
| 2 |
532424983 |
CABLE.MZR.ZONE.CONTROL Price: $14.99 |
| 6 |
532182398 |
KNOB.HANDLE.PLASTIC.STAR.BLACK Price: $5.99 |
| 8 |
587689302 |
BAIL.OM.ERGO.BENT.MZR.ORAN.668 Price: $14.99 |
| 9 |
593304501 |
DOOR ASSY REAR;22+.HUSQVARNA N This part replaces 532431390. Price: $39.99 |
| 11 |
579482801 |
E-RING.12MM.SHAFT Price: $3.99 |
| 12 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $7.99 |
| 13 |
532437516 |
PLUG.PLASTIC.7/8".14-20.GAUGE Price: $3.99 |
| 17 |
581782101 |
BAFFLE.REAR.22+RGD.AWD.PLASTIC Price: $32.99 |
| 18 |
581912601 |
T-KNOB.NEW ROPE GUIDE Price: $3.99 |
| 19 |
581902101 |
GUIDE.ROPE.BLK.ZINC.CHROM Price: $3.99 |
| 20 |
532444501 |
SKIRT.REAR.22PLUS.RGD.LW(2 2MC Price: $11.99 |
| 22 |
532141841 |
SCREW.PAN.HEAD.#10 Price: $3.99 |
| 26 |
532419945 |
SCREW,DOOR/HANDLE.PIVOT Price: $4.99 |
| 28 |
586212501 |
BOLT.CARRIAGE.LN.5/16-18X.5/8 Price: $2.99 |
| 30 |
580943401 |
RB GBAG.B55110010.GENERIC.SERV This part replaces 580943408. Price: $39.99 |
| 31 |
585054702 |
FRAME.GBAG.22+.BLK Price: $17.99 |
| 32 |
532441192 |
LATCH.DOOR.ZINC Price: $3.99 |
| 33 |
594942002 |
DOOR.MULCH.22+.BLK This part replaces 532419927. Price: $5.99 |
| 34 |
532438134 |
BRACKET.GRASSBAG.ATTACHING.BLK Price: $4.99 |
| 36 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $4.99 |
| 38 |
532426129 |
DEFLECTOR.CLIPPING.22.BLACK Price: $9.99 |
| 41 |
532850999 |
SCREW Price: $4.99 |
| 42 |
532193000 |
SPRING.TORSION Price: $5.99 |
| 43 |
596041001 |
Hardware This part replaces 532438130. Price: $2.99 |
| 44 |
581708362 |
KIT.HSG.22+AW.MC.WO.668.CE SYM This part replaces 581708354. Price: $129.99 |
| 45 |
532175650 |
ROD.HINGE.21 Price: $4.99 |
| 46 |
581650901 |
ADAPTER.BLADE.25M.B&S.AWD Price: $14.99 |
| 47 |
587199603 |
BLADE.22".REAPER.BLACK. This part replaces 587199601. Price: $17.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532179617 |
BOLT.BLADE Price: $4.99 |
| 51 |
532430599 |
BAFFLE.FRONT.22.PLUS Price: $12.99 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $3.99 |
| 53 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 56 |
817411312 |
SCREW.HX.13X.750 Price: $4.99 |
| 57 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 58 |
593270403 |
HANDLE.LOWER.ASM.W/PLUG.22+.49 This part replaces 585908203. Price: $14.99 |
| 59 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 83 |
817021008 |
SCREW This part replaces 532750097. Price: $3.99 |
| 84 |
532428124 |
FASTENER.PUSH.O.250X0.783 Price: $1.99 |
| 85 |
532434530 |
BRACKET.SKIRT.22+.BZP Price: $3.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
| 99 |
585668701 |
COVER.ASSEMBLY.FRONT.22+AWD Price: $27.99 |
| 115 |
581330001 |
SCREW.SHOULDER.5/16X1.375 Price: $3.99 |
| 116 |
581745601 |
SPACER.AWD.B&S Price: $8.99 |
| 532423849 |
BAG |
OF HARDWARE.22+ Price: $3.99 532423849 |
