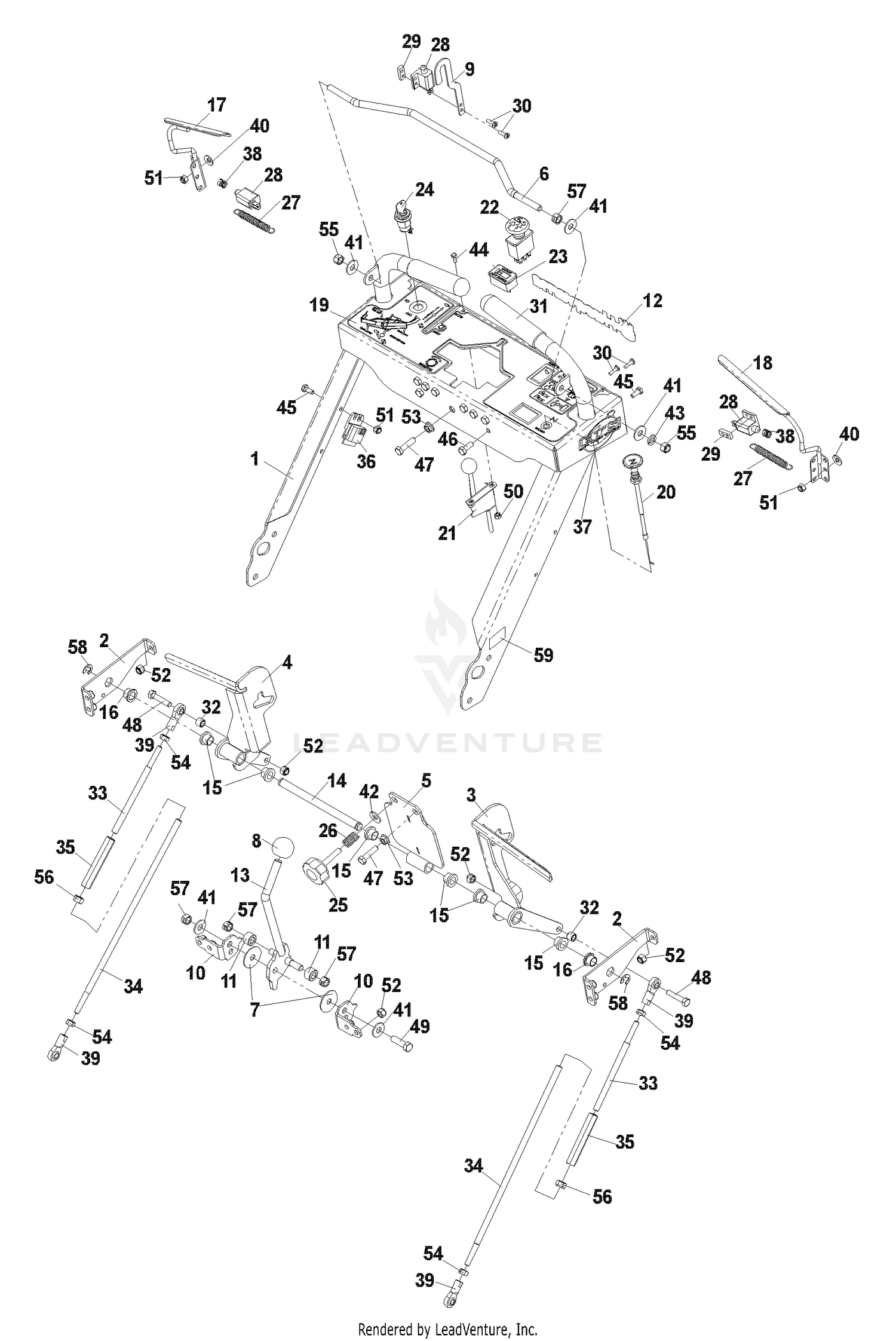

Handle Assembly

Handle Assembly

Parts (79)

RefPart NumberDescription
1 302-5 FITTING-GREASE Price: $0.59
1 539110578 HANDLE W/ DECALS Price: $279.99
2 539109809 BRACE Price: $8.99
2 69-6470 BUSHING-CASTOR Price: $5.82
3 539112289 DRIVE LEVER LT This part replaces 539109811. Price: $59.99
3 85-6410 DECAL-DANGER Price: $8.29
4 3256-35 WASHER-FLAT Price: $0.68
4 539112291 DRIVE LEVER RT This part replaces 539109813. Price: $54.99
5 104-2355 IDLER PULLEY ASM This part replaces 92-0633. Price: $216.74
5 539109816 TRACKING PLATE Price: $29.99
6 3216-6 SCREW-HH Price: $17.98
6 539109822 BAIL Price: $18.99
7 43-8480 DECAL-DANGER Price: $6.49
7 539102998 WASHER, FRICTION Price: $4.99
8 539100147 KNOB Price: $8.99
8 86-0700 DECAL-HOC, RH WING Price: $44.36
9 119-4162 SCREW-CARR This part replaces 323-13. Price: $1.73
9 539109817 NEUTRAL ARM Price: $5.99
10 539109614 FRICTION PLATE Price: $4.99
10 86-2010 PIN-HOC Price: $91.17
11 3296-15 NUT-LOCK, NI Price: $1.75
11 539109612 ROLLER Price: $3.77
12 539104787 DECAL, HUSQVARNA LOGO 9.25" Price: $10.99
12 66-1340 DECAL-DANGER, THROWN OBJECT Price: $9.07
13 539109820 GROUND SPEED LEVER Price: $27.99
13 86-0760 DECAL-BELT, RH Price: $37.54
14 32128-54 NUT-HF Price: $5.25
14 539109821 CROSS SHAFT Price: $12.99
15 539100032 BUSHING, FLANGED NYLON Price: $5.99
15 86-1440 WASHER-FLAT Price: $2.10
16 539110552 FLANGE BUSHING Price: $5.99
16 86-1960 V-BELT Price: $50.24
17 539109828 RIGHT OP Price: $20.99
17 92-0625 FLAT PULLEY ASM This part replaces 84-0920. Price: $75.60
18 539109826 LEFT OP Price: $20.99
18 86-2600-01 WASHER-GUIDE, BELT This part replaces 86-2600. Price: $5.77
19 539109823 DECAL, CONSOLE Price: $26.09
20 539109954 CHOKE CONTROL Price: $37.99
20 92-0623 DISCONTINUED Price: Call Us
21 3290-384 PIN-LYNCH Price: $18.43
21 597524002 THROTTLE This part replaces 539102732. Price: $37.99
22 582107601 SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 539101768. Price: $24.99
22 69-1510 SPACER Price: $4.48
23 3296-39 NUT-LOCK, NI Price: $2.29
23 539110862 DNO HOUR METER Price: $42.99
25 539103003 ADJUSTMENT KNOB Price: $4.99
26 539101224 SPRING Price: $19.99
27 539977250 SPRING Price: $3.99
28 539919098 SWITCH Price: $6.99
29 539102678 TAPPED PLATE Price: $12.99
30 596039001 Screws This part replaces 539976952. Price: $2.99
31 539105842 GRIP Price: $4.99
32 539102827 SPACER Price: $4.99
33 539109615 SHORT LINKAGE Price: $19.99
34 539110598 LINKAGE, LOWER Price: $54.99
35 539109149 TURNBUCKLE, 3/8 Price: $39.99
36 539101781 MODULE Price: $54.99
37 539106599 DECAL, ETS Price: $3.11
38 539110509 SPRING, SWITCH Price: $2.99
39 539102590 BALL JOINT, RIGHT HANDED Price: $19.99
40 597338501 Washers This part replaces 539990598. Price: $12.99
41 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
42 596134901 GSPH This part replaces 539990692. Price: $2.99
43 596238701 Washers This part replaces 539990118. Price: $3.99
44 596582801 Screws This part replaces 539990411. Price: $2.99
45 596582501 Bolts This part replaces 539990072. Price: $2.99
46 596030501 SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99
47 539990627 HCS 5/16C X 1 1/4 This part replaces 539100469. Price: $3.99
48 596582201 Bolts This part replaces 539976935. Price: $2.99
49 539976941 HCS 3/8C X 1 1/4 GR5 Price: $3.99
50 596040801 Hardware This part replaces 539976977. Price: $2.99
51 582478602 NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99
52 596583702 Nuts This part replaces 539990717. Price: $2.99
53 596039201 GSPW Hardware This part replaces 539990585. Price: $2.99
54 596040901 Hardware This part replaces 539990223. Price: $2.99
55 596240901 GSPW Nuts This part replaces 539976979. Price: $2.99
56 539990155 NUT 3/8F Price: $2.99
57 595305901 Nuts This part replaces 539990546. Price: $2.99
58 596671501 Washers This part replaces 539101949. Price: $2.99
