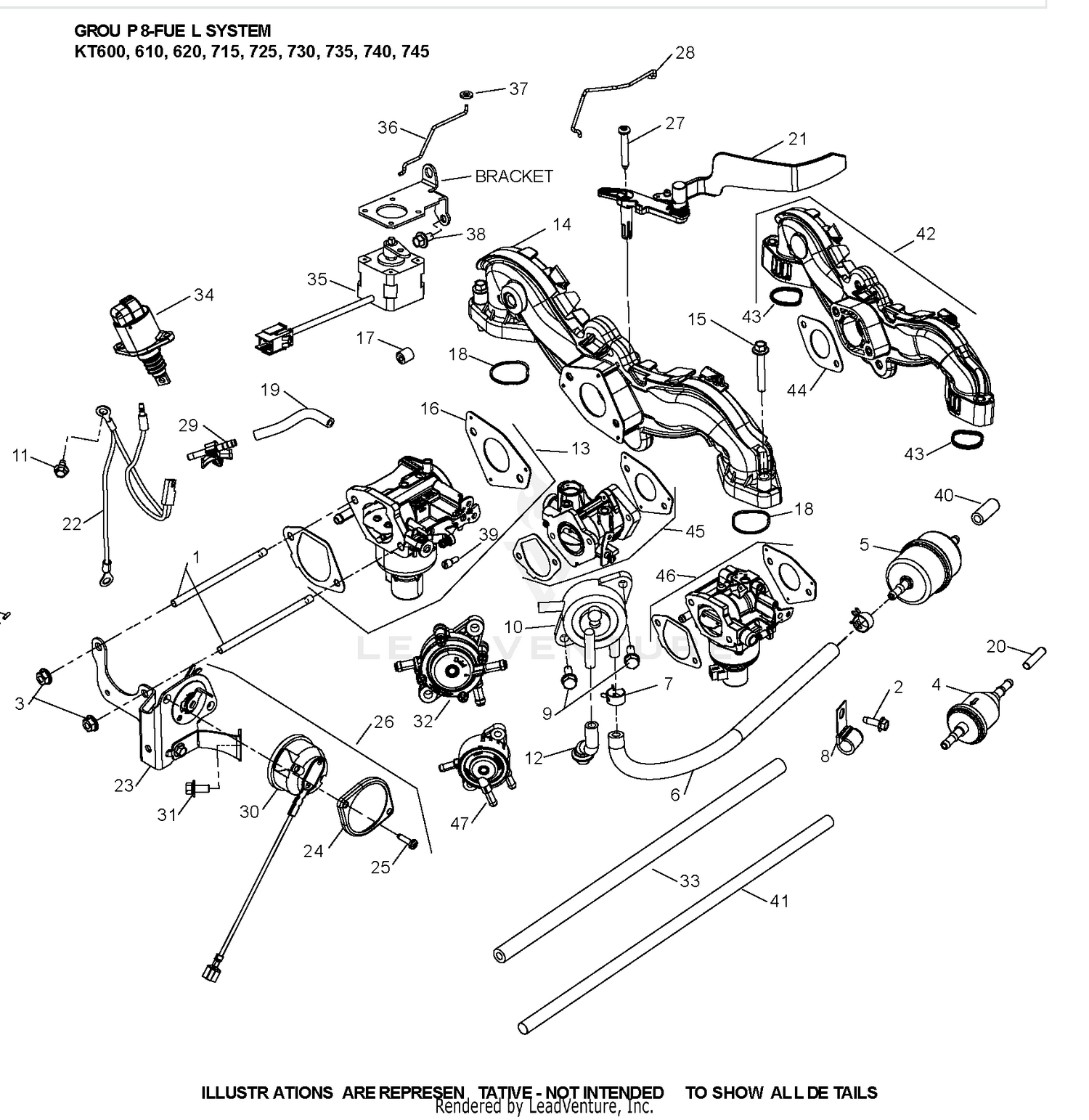

KT730-3063 Fuel System
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | KH-25-072-25-S | CARB MOUNTING STUD Price: $13.83 |
| 3 | KH-M-641060-S | HEX FLANGE NUT Price: $4.01 |
| 5 | 2405013S1C | FLTR-FUEL KOHLER This part replaces KH-24-050-13-S. Price: $15.89 |
| 6 | KH-25-111-81-S | FUEL HOSE LO PER Price: $17.20 |
| 7 | KH-25-237-37-S | HOSE CLAMP Price: $2.29 |
| 8 | KH-47-154-01-S | CLIP Price: $4.87 |
| 9 | KH-25-086-784-S | HEX HEAD SCREW This part replaces KH-24-086-12. Price: $2.34 |
| 11 | KH-25-086-400-S | SCREW Price: $2.29 |
| 15 | KH-M-651040-S | HEX SCREW FLANGE Price: $2.23 |
| 20 | KH-25-173-33-S | CAP-MASKING Price: $2.29 |
| 41 | KH-25-431-22-S | SLEEVE-ANTI ABRASION Price: $4.27 |
| 42 | KH-24-164-277-S | INTAKE MANIFOLD W/GASKETS Price: $65.61 |
| 43 | KH-24-153-37-S | O-RING, INTAKE PORT Price: $3.79 |
| 44 | KH-24-041-91-S | GASKET, CARBURETOR (PIM, CV) Price: $5.10 |
| 47 | KH-24-393-16 | Pump, Fuel-Pulse This part replaces KH-25-393-26-S. Price: $34.85 |
