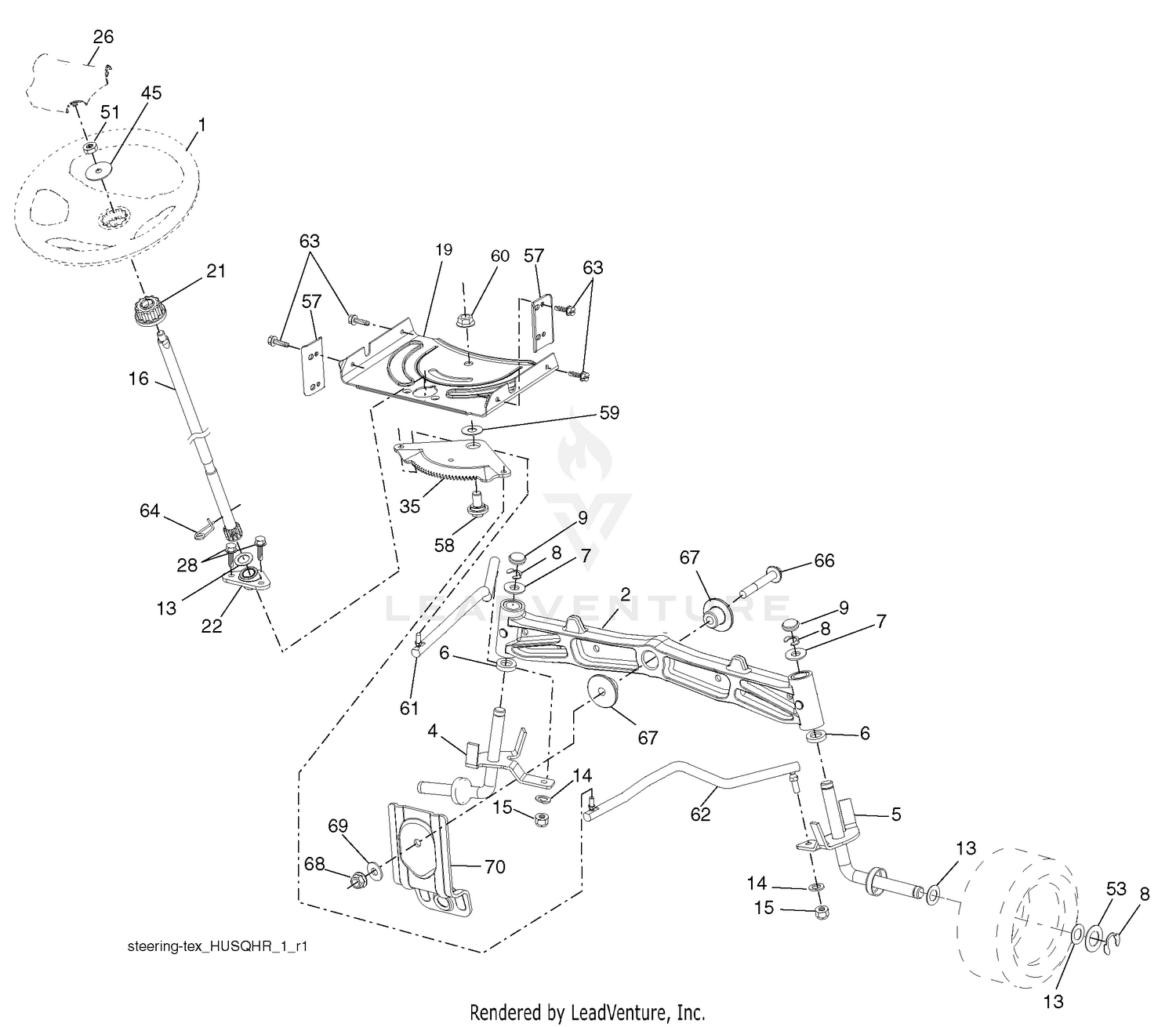

| Ref | Part Number | Description |
|---|
| 1 |
2411-53 |
BEARING-ROD END, LH Price: $35.54 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD This part replaces 532416480. Price: $69.99 |
| 2 |
3220-20 |
NUT-JAM Price: $0.92 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 3 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 4 |
46-8810 |
STOP-SPRING, LEAF Price: $9.17 |
| 4 |
596873601 |
SPINDLE.WELDED.LH.15"TEX.X431 This part replaces 532403087. Price: $14.99 |
| 5 |
538691201 |
SPINDLE.WLDMT.RH.15INTIRE.X431 This part replaces 532403088. Price: $19.99 |
| 5 |
94-1754 |
SWITCH & ROLLER BRACKET ASM Price: $246.41 |
| 6 |
3249-3 |
SCREW-PRH Price: $0.34 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 7 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 8 |
76-2170-03 |
DISCONTINUED This part replaces 76-2170. Price: Call Us |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 9 |
76-0420 |
PUMP CONTROL ROD Price: $70.97 |
| 10 |
322-7 |
SCREW-HH Price: $0.89 |
| 11 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 12 |
2411-52 |
BEARING-ROD END, RH Price: $35.54 |
| 13 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 14 |
61-2610 |
TRACTION ARM Price: $34.35 |
| 15 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
3220-2 |
NUT-JAM Price: $0.50 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 532408219. Price: $34.99 |
| 17 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 18 |
3210-7 |
SCREW-HH Price: $0.61 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 21 |
3217-29 |
NUT-HEX Price: $0.25 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532420537. Price: $14.99 |
| 23 |
42-2040 |
PIPE PLUG Price: $14.79 |
| 24 |
322-17 |
SCREW-HH Price: $2.62 |
| 25 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 26 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM This part replaces 532415987. Price: $8.99 |
| 27 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 28 |
51-3150 |
SHIM-ARM, SPRING Price: $5.24 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 29 |
29-6120-03 |
PUMP PLATE ASM This part replaces 29-6120. Price: $93.02 |
| 30 |
321-6 |
SCREW-HH Price: $0.25 |
| 31 |
61-2940-03 |
PUMP LEVER ASM This part replaces 61-2940. Price: $60.56 |
| 32 |
251-259 |
BEARING-BALL Price: $13.67 |
| 33 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 34 |
94-1755 |
DISCONTINUED Price: Call Us |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 51 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
