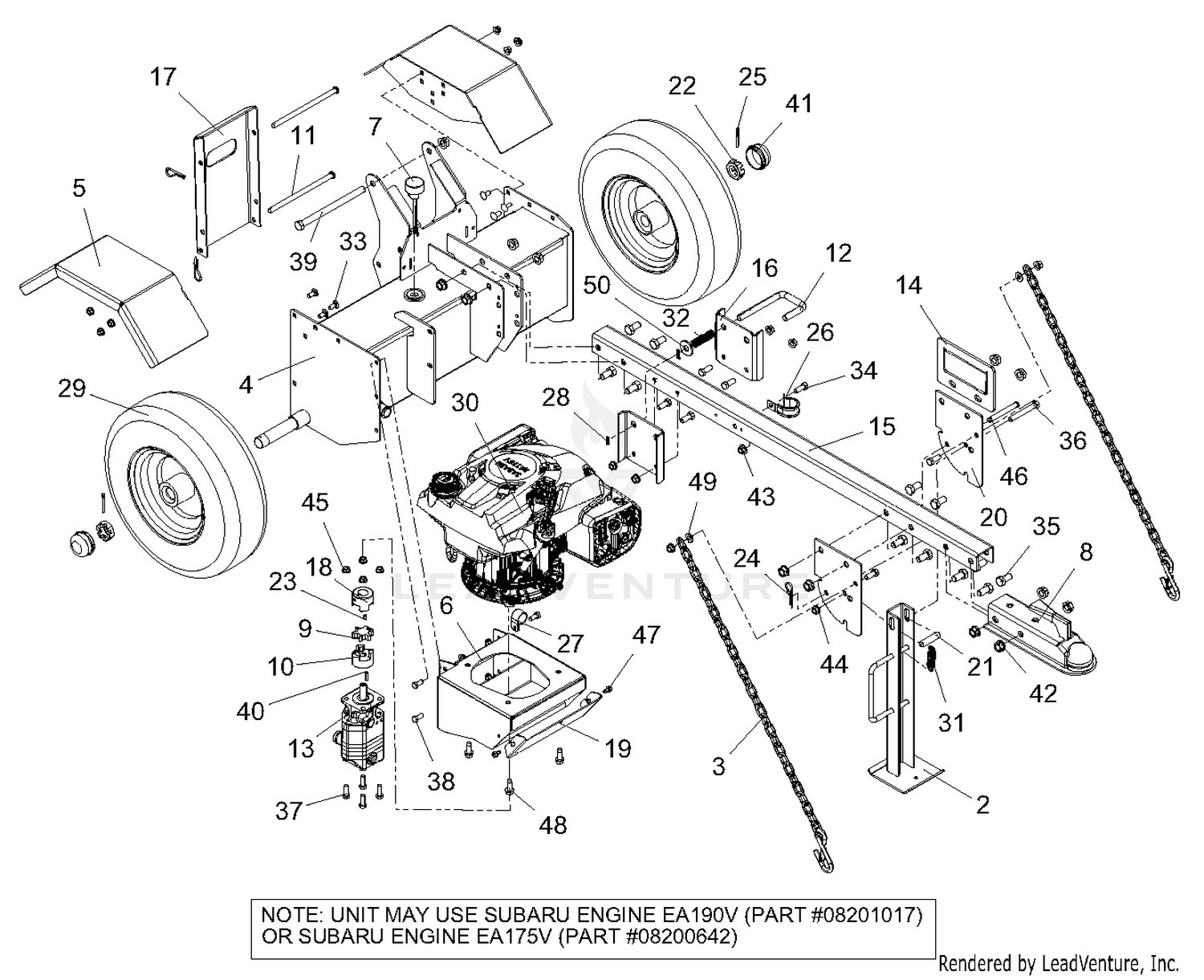

| Ref | Part Number | Description |
|---|
| 2 |
03938151 |
WLDMT, JACK STAND Price: Call Us |
| 3 |
04649800 |
CHAIN, SAFETY 3/16"-30LINK Price: $36.45 |
| 5 |
03857153 |
WLDMT, FENDER Price: $94.95 |
| 6 |
04580153 |
WLDMT,ENGINE/PUMP MOUNT Price: $134.95 |
| 7 |
00463000 |
BREATHER, DIPSTICK Price: $32.95 |
| 8 |
03846600 |
HITCH, BALL-2" Price: Call Us |
| 9 |
04586500 |
SPIDER - URETHANE This part replaces 03856200. Price: $5.45 |
| 10 |
04586600 |
COUPLER - DRIVE 1/2" This part replaces 03856300. Price: $22.45 |
| 11 |
03857200 |
PIN, LOCK Price: Call Us |
| 12 |
03857500 |
LOCK, BEAM Price: Call Us |
| 13 |
03926900 |
PUMP,SPLITTER-11 GPM Price: Call Us |
| 14 |
04378651 |
HANDLE, SPLITTER DRAW BAR Price: $14.95 |
| 16 |
04577651 |
GUIDE, LOCK DOWN Price: $15.45 |
| 17 |
51701500 |
REAR STAND W/DECALS (GRAVELY) This part replaces 04579653. Price: $42.30 |
| 18 |
04586800 |
COUPLER - DRIVE, 7/8" This part replaces 04586400. Price: $24.45 |
| 19 |
04587853 |
COVER, COUPLING Price: $22.45 |
| 20 |
04635751 |
MOUNT, SPRING LOADED JACK Price: $25.45 |
| 21 |
05533500 |
SPCR, WHEEL .385X.500X2.00 Price: $8.45 |
| 22 |
06513100 |
NUT-SL 1.0-14 Price: $5.45 |
| 24 |
06712900 |
HAIRPIN, #7 CLIP .094X2.31 YWZ Price: $2.95 |
| 26 |
06900526 |
CLAMP, CUSHIONED STEEL 1.25 Price: $15.95 |
| 27 |
06917900 |
CLAMP, COUSHIONED STEEL REV Price: $13.45 |
| 28 |
06944800 |
CLIP, SPRING Price: $0.95 |
| 29 |
07101019 |
ASM, TIRE/WHEEL 4.8/4-8 GREY This part replaces 07100806. Price: $109.95 |
| 30 |
08200642 |
ENGINE, SUBARU EA175V Price: Call Us |
| 31 |
08300435 |
SPRG, TENSION .063X.625X2.50 Price: $8.45 |
| 32 |
08325900 |
SPRG, COMP .058X.65X2.13 WLD15 Price: $7.95 |
| 33 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC This part replaces 06215700. Price: $2.45 |
| 34 |
05901711 |
BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 35 |
05901715 |
BLT, HEX .50-13X1.00 G5 ZCC This part replaces 05947100. Price: $2.45 |
| 36 |
05901814 |
BLT, HEX .38-16X3.00 G5 ZCC This part replaces 05957800. Price: $2.45 |
| 37 |
05901701 |
BLT-HEX .31-18X1.00 G5 ZCC This part replaces 05946900. Price: $1.45 |
| 38 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 39 |
05902023 |
BLT, HEX .50-13X7.50 G5 ZCC This part replaces 05978200. Price: $7.45 |
| 40 |
06606100 |
KEY-SQ .188X.75X.188 Price: $3.45 |
| 41 |
05117700 |
CAP-DUST This part replaces M135582. Price: Call Us |
| 42 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC This part replaces 06530008. Price: $0.95 |
| 43 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 44 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 45 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 46 |
02747500 |
PIN-CLEV .371X3.25 YWZC Price: $5.95 |
| 47 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07400034. Price: $0.45 |
| 48 |
07417500 |
SCR-TAP .38-16X1.00 HWH TR ZCC This part replaces 07414100. Price: $3.45 |
| 49 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
