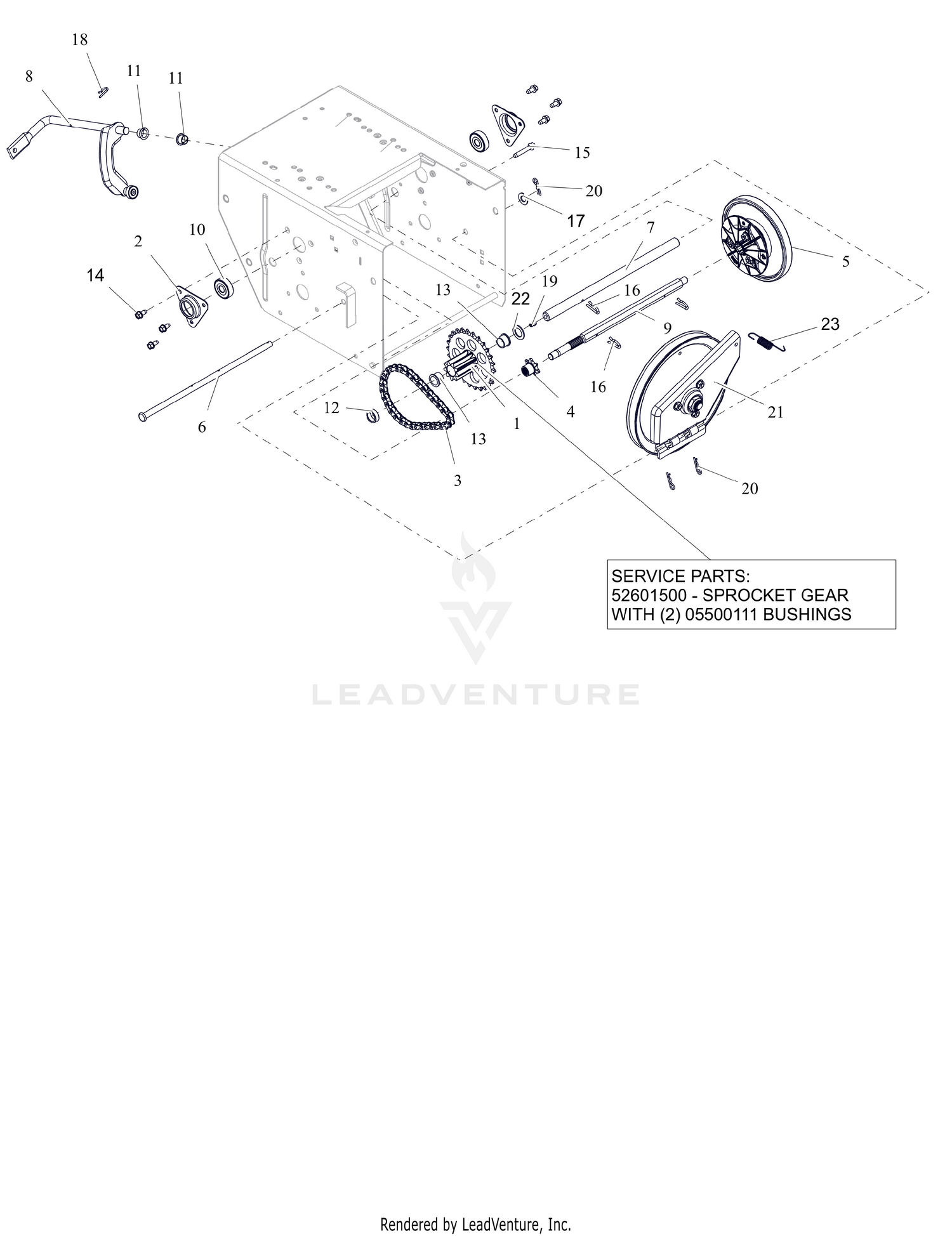

| Ref | Part Number | Description |
|---|
| 1 |
30312500 |
PINION, SPROCKET This part replaces 00190600. Price: $22.45 |
| 2 |
00383000 |
FLANGE, BEARING Price: $11.45 |
| 3 |
02466200 |
CHAIN - #41, 32 PITCHES Price: $7.45 |
| 4 |
09478400 |
SPROCKET- PINION 7T W/SPLINE This part replaces 04092600. Price: $1.95 |
| 5 |
04861600 |
DISC, FRICTION DRIVE-ASSEMBLY Price: $31.95 |
| 6 |
09429400 |
PIN, PIVOT Price: $7.45 |
| 7 |
04991500 |
SHAFT, PINION Price: $23.45 |
| 8 |
04993700 |
ARM, SHIFT - ASSEMBLY Price: $36.95 |
| 9 |
05199800 |
SHAFT, HEX HEAT TREATED SPLINE This part replaces 04995700. Price: $17.45 |
| 10 |
05435200 |
BRG-BALL .437X1.375X.437 Price: $8.95 |
| 11 |
05500026 |
BUSHING, POLYLINER-.50 SPLIT Price: $2.45 |
| 12 |
05500035 |
BSHG-SLV, .635X.880X.305 Price: $3.45 |
| 13 |
05500111 |
BSHG-FLG .625X.750X.500X.875 Price: $1.95 |
| 14 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 15 |
07400140 |
SCR,TAP .25-20X1.50 HWH TR ZCC Price: $3.45 |
| 16 |
06714500 |
PIN, SPRING CLIP Price: $2.45 |
| 17 |
06401013 |
WSHR,FLT .406X.812X.065 ZCC Price: $0.95 |
| 18 |
06944800 |
CLIP, SPRING Price: $0.95 |
| 19 |
07061300 |
ZERK,FITTING .25X.125 DRIVE IN Price: $3.95 |
| 20 |
06700222 |
PIN, HAIR #213 .08X1.19 ZCC Price: $0.45 |
| 21 |
52602700 |
PLATE, SWING ASSEMBLY-DEEP Price: $101.95 |
| 22 |
06401117 |
WSHR, FLT .630X1.005X.062 ZCC Price: $0.45 |
