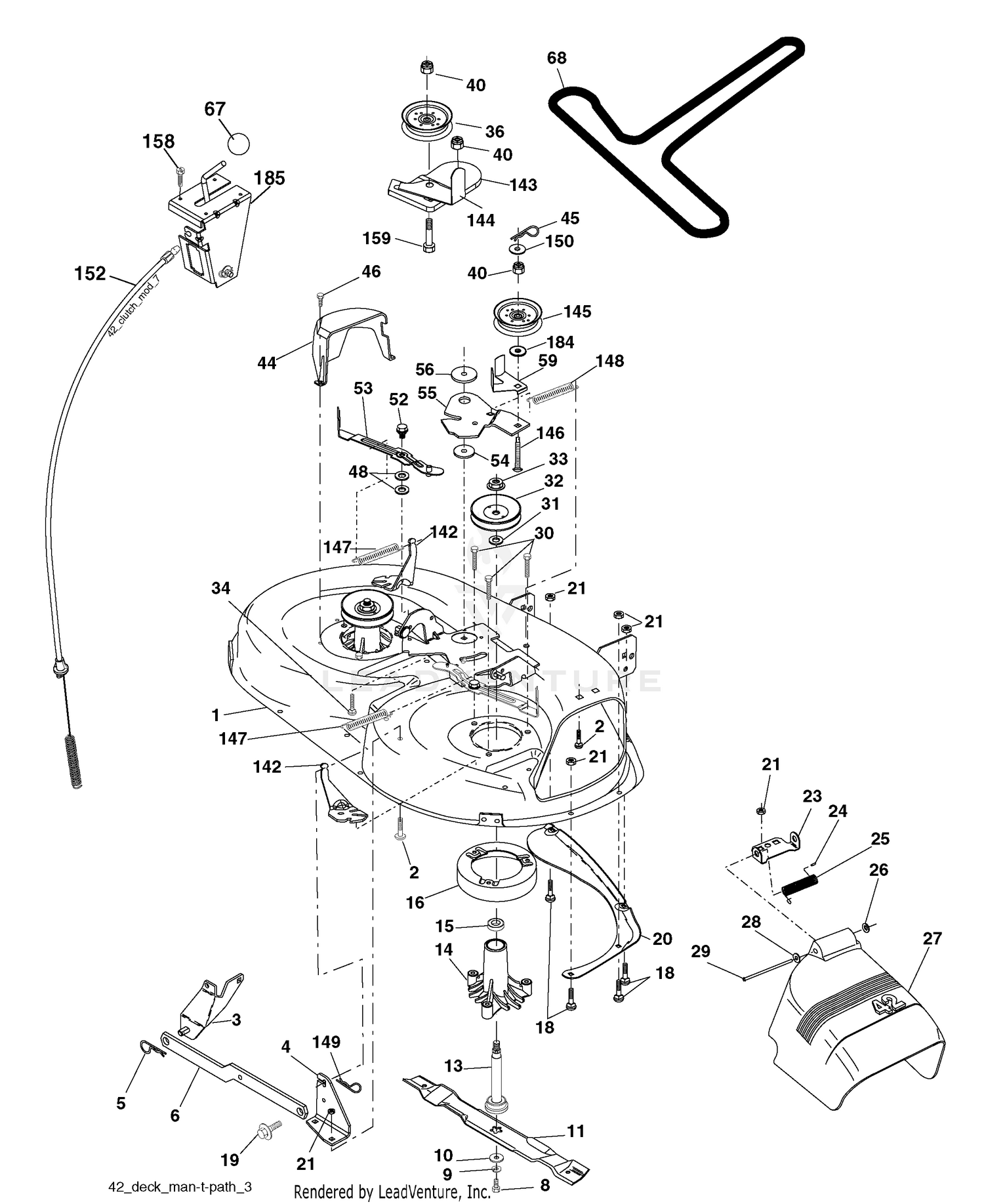

| Ref | Part Number | Description |
|---|
| 1 |
165892 |
Mower Deck Assembly, 42" Price: Call Us |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 010 |
105-3727 |
INJECTION PUMP ASM Price: $2,972.62 |
| 10 |
140296 |
Washer, Hardened (The following Blades are available) Price: Call Us |
| 11 |
134149 |
Blade, Mulching 42" Std (for mulching mowers only) Price: Call Us |
| 11 |
138971 |
Blade Mower 42" Hi-Lift (for bagging and discharging) Price: Call Us |
| 11 |
139775 |
Blade Mulching 42" Premium (For better wear when mulching) Price: Call Us |
| 13 |
137645 |
Shaft As sem bly, Mandrel, Vented Price: Call Us |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 020 |
98-9462 |
ELEMENT-PUMP Price: $282.73 |
| 20 |
159770 |
Baffl e, Vortex Price: Call Us |
| 21 |
73680500 |
Nut Price: Call Us |
| 23 |
177563 |
Bracket, Defl ector Mower 42" Price: Call Us |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Defl ector 2 52 Price: Call Us |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 27 |
130968X428 |
Shield, Defl ector 42" Blk Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 030 |
98-9421 |
VALVE-DELIVERY Price: $116.98 |
| 30 |
173984 |
Screw Thdrol Price: Call Us |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
153535 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 34 |
72110612 |
Bolt Carr SH 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 040 |
98-9424 |
SPRING-VALVE, DELIVERY Price: $21.66 |
| 40 |
73900600 |
Nut Lock 3/8-16 Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 050 |
98-9425 |
GASKET-VALVE, DELIVERY Price: $10.58 |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 unc Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 060 |
98-9652 |
HOLDER-VALVE, DELIVERY Price: $111.74 |
| 67 |
171598 |
Knob Round Price: Call Us |
| 68 |
144959 |
Belt, 42" Mower Price: Call Us |
| 070 |
98-9447 |
O-RING Price: $18.23 |
| 080 |
98-9434 |
FLANGE-SLEEVE Price: $17.25 |
| 090 |
98-9443 |
PIN-JOINT Price: $13.13 |
| 100 |
98-9423 |
O-RING Price: $6.07 |
| 110 |
98-9452 |
SCREW This part replaces 105-2892. Price: $7.23 |
| 130 |
98-9422 |
TAPPET ASM Price: $275.51 |
| 140 |
98-9426 |
PIN-GUIDE, TAPPET Price: $7.65 |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
158634 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
165888 |
Pulley Idler Flat Price: Call Us |
| 146 |
171977 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
105-3732 |
PIN-CLAMP Price: $8.96 |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 160 |
98-9428 |
SPRING-PLUNGER Price: $32.36 |
| 170 |
98-9427 |
SEAT-SPRING, UPPER Price: $16.02 |
| 180 |
98-9429 |
SEAT-SPRING, LOWER Price: $50.60 |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 185 |
188234 |
Head Asm Cable Clutch Price: Call Us |
| 190 |
98-9433 |
SHIM Price: $2.13 |
| 200 |
105-3733 |
RACK-CONTROL Price: $54.30 |
| 210 |
105-3734 |
PLATE Price: $44.59 |
| 220 |
98-9442 |
SCREW Price: $26.58 |
| 230 |
98-9432 |
SLEEVE-CONTROL Price: $107.77 |
| 240 |
98-9464 |
BOLT-JOINT Price: $20.48 |
| 250 |
98-9445 |
GASKET Price: $1.84 |
| 260 |
98-9430 |
SCREW Price: $19.45 |
