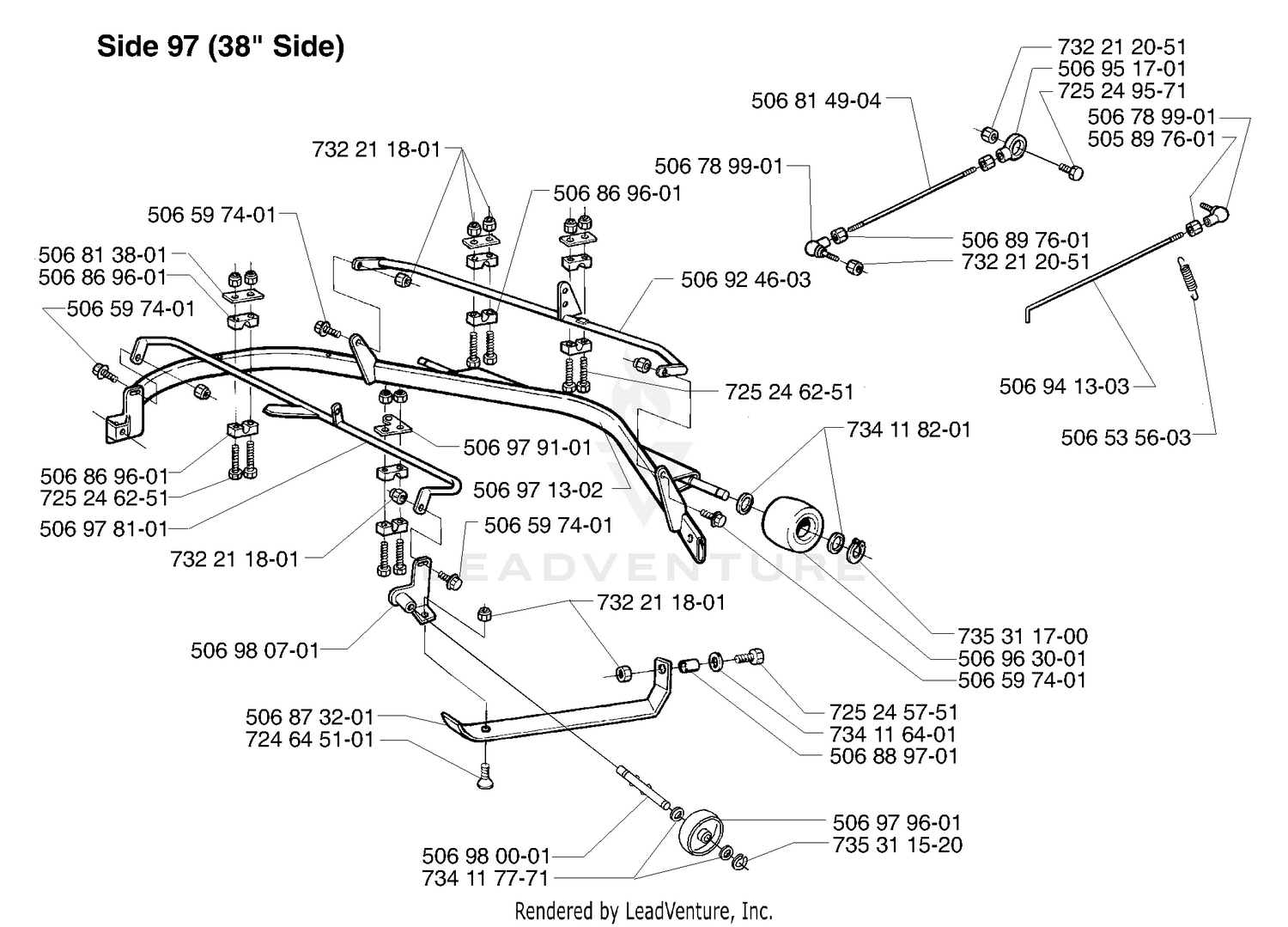

Deck Frame (38" Side)
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 505897601 | 506897601 | NUT This part replaces 505897601. Price: $3.99 |
| 506535603 | 506535603 | SPRING Price: $4.99 |
| 506597401 | 506597401 | BOLT Price: $5.99 |
| 506789901 | 506789901 | LINK Price: $89.99 |
| 506813801 | 506813801 | PLATE Price: $5.99 |
| 506814904 | 506814904 | Rod Price: $12.14 |
| 506869601 | 506869601 | BEARING Price: $8.99 |
| 506873201 | 506873201 | Rail Price: $36.11 |
| 506889701 | 506889701 | SPACER Price: $5.25 |
| 506897601 | 506897601 | NUT Price: $3.99 |
| 506941303 | 506941303 | Rod Price: $21.55 |
| 506951701 | 506951701 | LINK Price: $39.99 |
| 506963001 | 506963001 | DECK ROLLER, FRONT Price: $54.99 |
| 506971302 | 506971302 | Hand Guard Price: $149.63 |
| 506978101 | 506978101 | PIPE Price: $169.99 |
| 506979101 | 506979101 | Washer Price: $5.40 |
| 506979601 | 506979601 | WHEEL Price: $19.99 |
| 506980001 | 506980001 | SHAFT Price: $17.99 |
| 506980701 | 506980701 | Bracket Price: $74.16 |
| 724645101 | 725645301 | SCREW This part replaces 724645101. Price: $3.99 |
| 725245751 | 725245751 | SCREW Price: $4.99 |
| 725246251 | 725246251 | SCREW Price: $4.99 |
| 725249571 | 725249571 | SCREW Price: $6.99 |
| 732211801 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 732212051 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 734116401 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 734117771 | 734117771 | BUSHING Price: $3.99 |
| 734118201 | 734118201 | WASHER Price: $4.99 |
| 735311520 | 735311520 | RETAINING RING Price: $2.99 |
