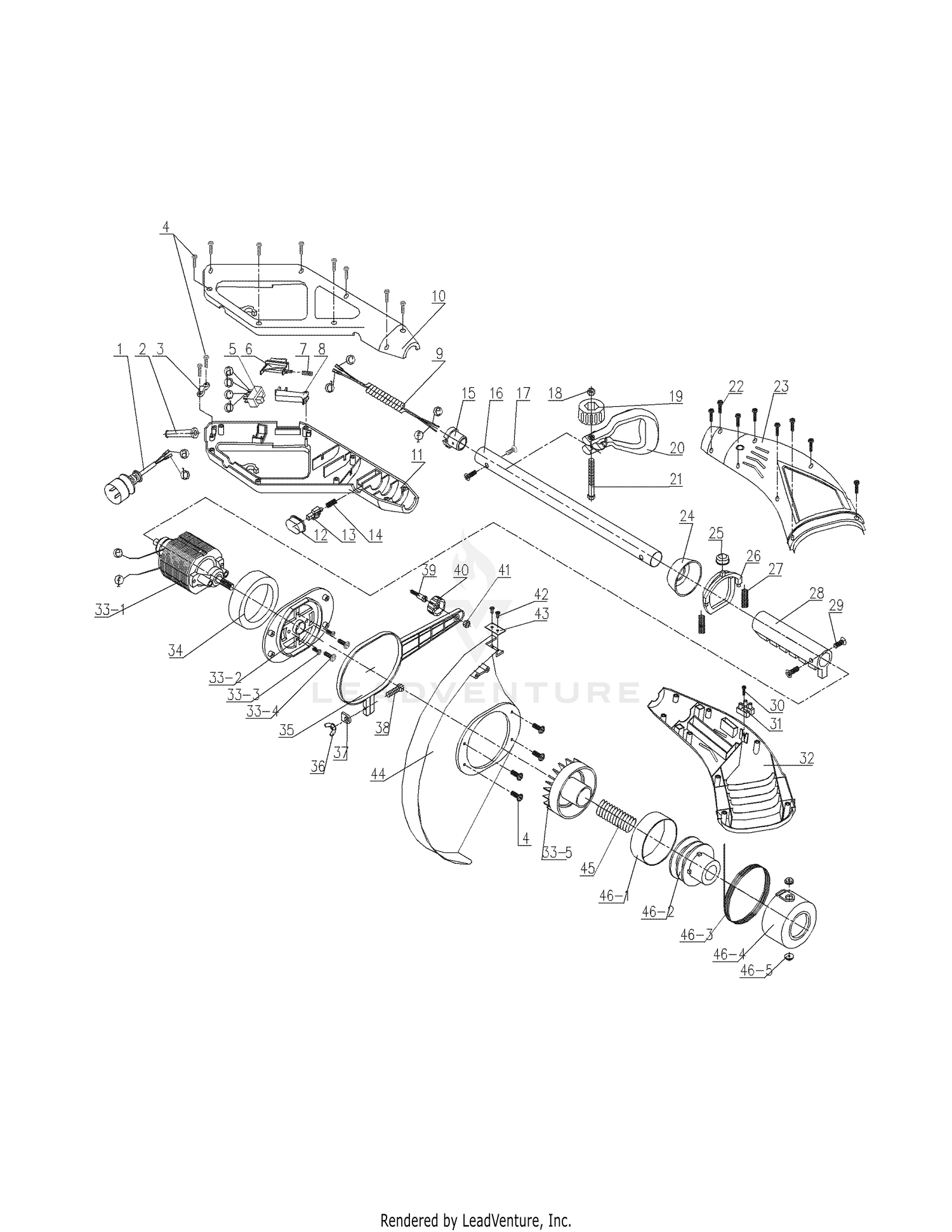

General Assembly
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | MC-6011-202A02 | CORD:POWER Not Available Price: |
| 2 | MC-6199-202A01 | GUARD:CORD Not Available Price: |
| 3 | MC-6043-202A01 | GASK Not Available Price: |
| 4 | MC-6SDABB04-14 | SCREW Not Available Price: |
| 5 | MC-6022-202A01 | SW Not Available Price: |
| 6 | MC-6134-202A01 | TRIG Not Available Price: |
| 7 | MC-6024-202A01 | SPRING Not Available Price: |
| 8 | MC-6134-202A02 | TRIG Not Available Price: |
| 9 | MC-6010-202A01 | WIRE Not Available Price: |
| 10 | MC-6068-202A04 | UPPER HANDGRIP (R)-MTD RED Price: Call Us |
| 11 | MC-6068-202A03 | UPPER HANDGRIP (L)-MTD RED Price: Call Us |
| 12 | MC-6056-202A03 | BUTTON Not Available Price: |
| 13 | MC-6021-202A01 | LEVER Not Available Price: |
| 14 | MC-6024-202A02 | SPRING Not Available Price: |
| 15 | MC-6131-202A01 | PIPE:JOIN Not Available Price: |
| 16 | MC-6129-202A01 | TUBE:CENTR Not Available Price: |
| 17 | MC-6SDABB04-06 | SCREW Not Available Price: |
| 18 | MC-6NGB-06 | NUT Not Available Price: |
| 19 | MC-6056-230302 | KNOB Not Available Price: |
| 20 | MC-6196-202601 | HANDLE Not Available Price: |
| 21 | MC-6SHDB-06-52 | SCREW Not Available Price: |
| 22 | MC-6SDABB04-18 | SCREW Not Available Price: |
| 23 | MC-6038-202A03 | HOUSING:R Not Available Price: |
| 24 | MC-6059-202A01 | JACKET Not Available Price: |
| 25 | MC-6056-202A04 | BUTTON Not Available Price: |
| 26 | MC-6239-202A01 | RING:FIXED Not Available Price: |
| 27 | MC-6024-202A03 | SPR Not Available Price: |
| 28 | MC-6131-202A02 | RING:EXPAN Not Available Price: |
| 29 | MC-6SVABB04-10 | SCREW Not Available Price: |
| 30 | MC-6SDABA03-16 | SCREW Not Available Price: |
| 31 | MC-6041-840001 | BLOCK:TERM Not Available Price: |
| 32 | MC-6038-202A04 | HOUSING:L Not Available Price: |
| 34 | MC-6131-202A04 | RING:CUSHO Not Available Price: |
| 35 | MC-6114-202A02 | RING CUSHO Not Available Price: |
| 36 | MC-6NBB-06 | NUT Not Available Price: |
| 37 | MC-6043-815501 | PLATE:CORD P Not Available Price: |
| 38 | MC-6SXDB-06-20 | SCREW Not Available Price: |
| 39 | MC-6115-202A01 | SHAFT PIN Not Available Price: |
| 40 | MC-6137-202A01 | WHEEL Not Available Price: |
| 41 | MC-6NAB-05 | NUT Not Available Price: |
| 42 | MC-6RAE03-6.5 | RIVET Not Available Price: |
| 43 | MC-6250-202503 | BLADE Not Available Price: |
| 44 | MC-6262-202A02 | SHIELD Not Available Price: |
| 45 | MC-6024-202A04 | SPRING Not Available Price: |
