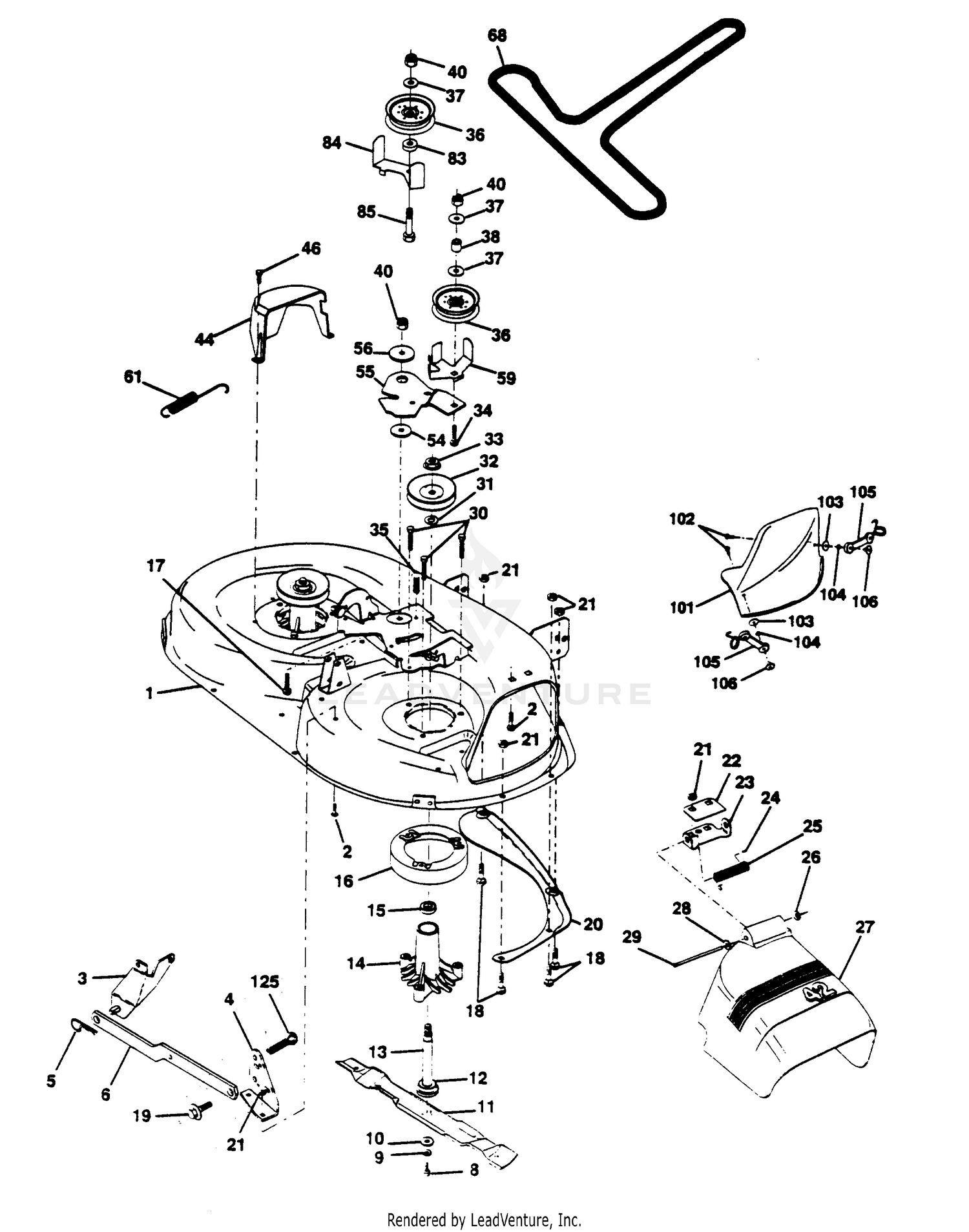

| Ref | Part Number | Description |
|---|
| 1 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 1 |
532144393 |
Deck Asm Mower 42" (AYP part number) Price: $139.99 |
| 2 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 2 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 3 |
5-4042 |
DISCONTINUED Price: Call Us |
| 3 |
532138017 |
Bracket Asm Fr Sway Bar (AYP part number) Price: $7.99 |
| 4 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 4 |
532138440 |
Bracket Asm Deck Sway Bar 42" (AYP part number) Price: $3.99 |
| 5 |
532124670 |
Retainer Spring (AYP part number) Price: $5.99 |
| 5 |
54045 |
Pivot Bracket Price: Call Us |
| 6 |
5-4033 |
DISCONTINUED Price: Call Us |
| 6 |
532178024 |
BAR SWAY DECK This part replaces 532130832. Price: $5.99 |
| 7 |
5-4041 |
DISCONTINUED Price: Call Us |
| 8 |
253-122 |
SEAL-OIL Price: $6.83 |
| 8 |
532850857 |
Bolt 3/8-24x1 25 Gr8 Patched (AYP part number) Price: $1.99 |
| 9 |
5-4035 |
DISCONTINUED Price: Call Us |
| 9 |
539990118 |
SLW 3/8 STD This part replaces 810030600. Price: $1.99 |
| 10 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 10 |
532140296 |
Washer Hard Blade Mower Vented (AYP part number) Price: $2.99 |
| 11 |
254-78 |
BEARING-CONE Price: $12.22 |
| 11 |
532134149 |
Blade Price: $12.99 |
| 12 |
253-117 |
SEAL-OIL Price: $5.72 |
| 12 |
532129895 |
Bearing Ball #6204 (Mandrel) (AYP part number) Price: $6.99 |
| 13 |
5-4038 |
WEAR SLEEVE Price: $16.36 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $17.99 |
| 14 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 14 |
532128774 |
Housing Mandrel Vented(machd) Price: $22.99 |
| 15 |
5-4040 |
DISCONTINUED Price: Call Us |
| 15 |
532110485 |
Bearing Ball Mandrel (AYP part number) Price: $7.99 |
| 16 |
5-4034 |
DISCONTINUED Price: Call Us |
| 16 |
532174493 |
STRIPPER.MANDREL.ROUND.BLACK This part replaces 532140329. Price: $3.99 |
| 17 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 17 |
872110618 |
Bolt Rdhd Sqnk 3/8-16 X 2-1/4 (AYP part number) Price: $2.99 |
| 18 |
5-4048 |
DISCONTINUED Price: Call Us |
| 18 |
872140505 |
Bolt Rdhd Sqnk 5/16-18 X 5/8 (AYP part number) Price: $2.99 |
| 19 |
323-7 |
SCREW-HH Price: $0.65 |
| 19 |
532132827 |
Bolt Shoulder 5/16 - 18 (AYP part number) Price: $2.99 |
| 20 |
532159770 |
BAFFLE.VORTEX This part replaces 532136888. Price: $12.99 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
532134753 |
Stiffener Bracket 42" deck (AYP part number) Price: $5.99 |
| 23 |
532177563 |
BRKT, DEFL. MOWER This part replaces 532131267. Price: $2.99 |
| 24 |
532105304 |
Cap Sleeve 80x 112 Blk Mower (AYP part number) Price: $2.99 |
| 25 |
532123713 |
Spring Torsion Deflector 2 52 (AYP part number) Price: $3.99 |
| 26 |
532110452 |
Nut Push Phos & Oil (AYP part number) Price: $1.99 |
| 27 |
532130968 |
Shield Deflector Mower 42" Blk" (AYP part number) Price: $22.99 |
| 28 |
819111016 |
Washer 11/32 X 5/8 X 16 Ga (AYP part number) Price: $5.99 |
| 29 |
532131491 |
Rod Hinge 42" 6 75 Wlg (AYP part number) Price: $1.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532138776. Price: $1.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $1.99 |
| 32 |
532129861 |
Pulley Mandrel 42" (AYP part number) Price: $17.99 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $4.99 |
| 34 |
872110622 |
Bolt Rdhd 3/8-16uncx1-3/4 Gr5 (AYP part number) Price: $0.99 |
| 35 |
532133835 |
Fastner Christmas Tree (AYP part number) Price: $3.99 |
| 36 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532131494. Price: $14.99 |
| 37 |
819131316 |
Washer 13/32 X 13/16 X 16 Ga (AYP part number) Price: $2.99 |
| 38 |
532132823 |
Spacer Spring Stop Idler Price: $4.99 |
| 40 |
873680600 |
Nut Crownlock 3/8-16 UNC Price: $1.99 |
| 44 |
532140088 |
Guard Mandrel LH Black (AYP part number) Price: $14.99 |
| 46 |
532137729 |
Screw Hex Thd Cut 1/4-20x5/8 T (AYP part number) Price: $2.99 |
| 54 |
532178515 |
WASHER This part replaces 532133943. Price: $2.99 |
| 55 |
532151785 |
CAM ROLLER KIT This part replaces 532140084. Price: $27.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $2.99 |
| 59 |
532141043 |
Guard TUV Idler (AYP part number) Price: $3.99 |
| 61 |
532131950 |
Spring Ext. Elect. Clutch 38/42" Price: $4.99 |
| 68 |
532144200 |
V-Belt Mower Price: $32.99 |
| 83 |
532120958 |
Washer Sintered (AYP part number) Price: $4.99 |
| 84 |
532156084 |
KEEPER.BELT.IDLER This part replaces 532144394. Price: $3.99 |
| 85 |
872110618 |
BOLT CARRIAGE This part replaces 872140618. Price: $2.99 |
| 101 |
532136418 |
Cover Mulching 42" Black Price: Call Us |
| 102 |
871081010 |
SCREW This part replaces 871161010. Price: $3.99 |
| 103 |
819061216 |
Washer #10 (AYP part number) Price: $2.99 |
| 104 |
810071000 |
Washer Lock #10 (AYP part number) Price: $2.99 |
| 105 |
532160793 |
LATCH ASSY This part replaces 532130758. Price: $7.99 |
| 106 |
532002029 |
NUT.WELD.#10-24 (2 2) This part replaces 532125004. Price: $2.99 |
| 125 |
876020816 |
Pin Cotter 1/4 x 1 plated (AYP part number) Price: $3.99 |
