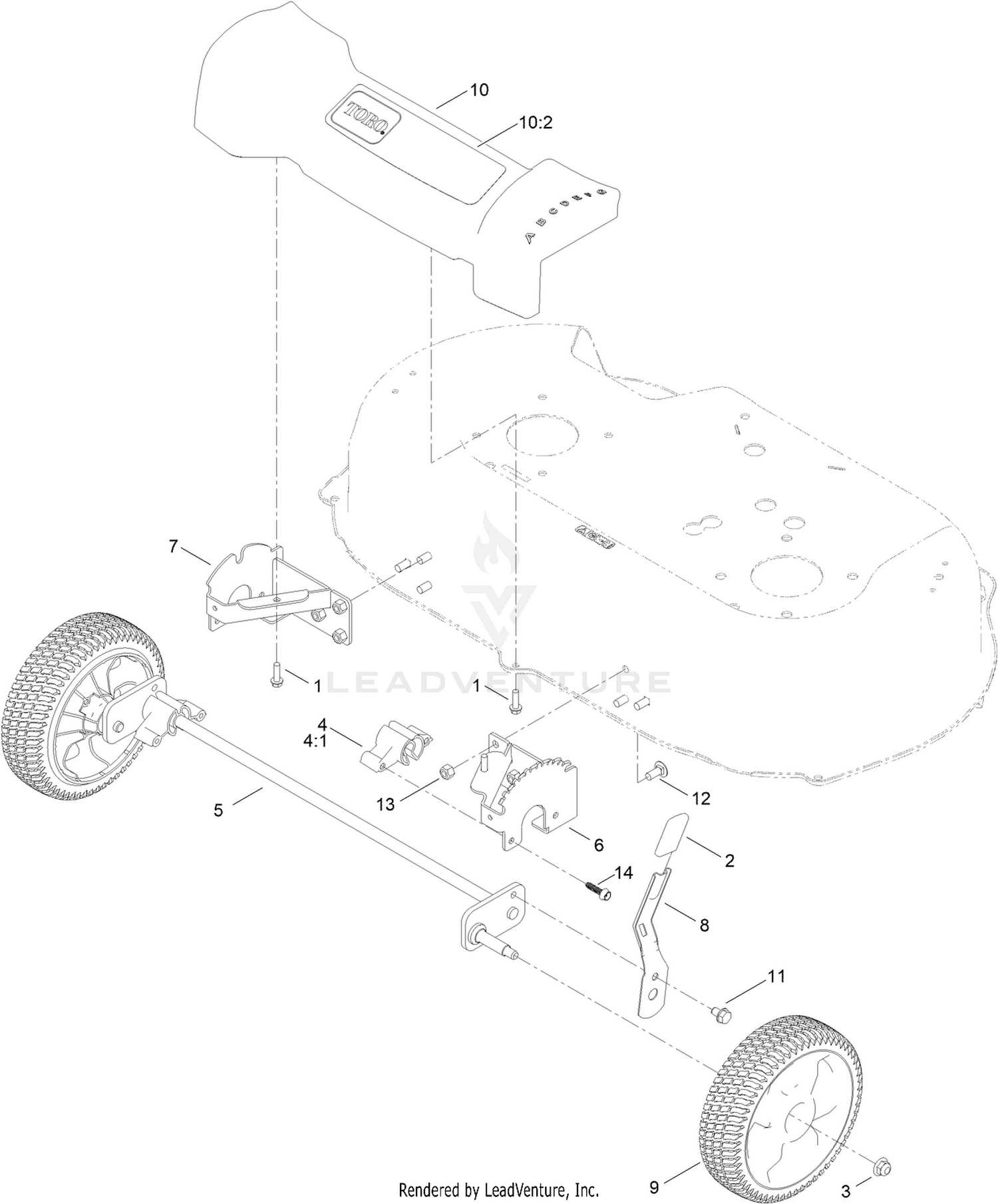

Front Wheel and Height-of-Cut Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 46-8091 | SCREW-HWH Price: $3.59 |
| 2 | 120-9535 | GRIP-LEVER Price: $1.79 |
| 3 | 119-4042 | NUT-HF, NI Price: $0.69 |
| 4 | 147-0519 | BUSHING-PIVOT, FRONT Price: $4.09 |
| 5 | 139-1753 | FRONT AXLE ASM Price: $41.99 |
| 6 | 120-7037-03 | PLATE-HOC, LH Price: $23.99 |
| 7 | 120-7038-03 | PLATE-HOC, RH Price: $23.99 |
| 8 | 120-7043 | ARM-SPRING Price: $12.99 |
| 10 | 125-5027 | FRONT COVER ASM Price: $46.99 |
| 11 | 700057 | SCREW-HWH Price: $1.89 |
| 12 | 3230-23 | SCREW-CARR Price: $0.89 |
| 13 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
