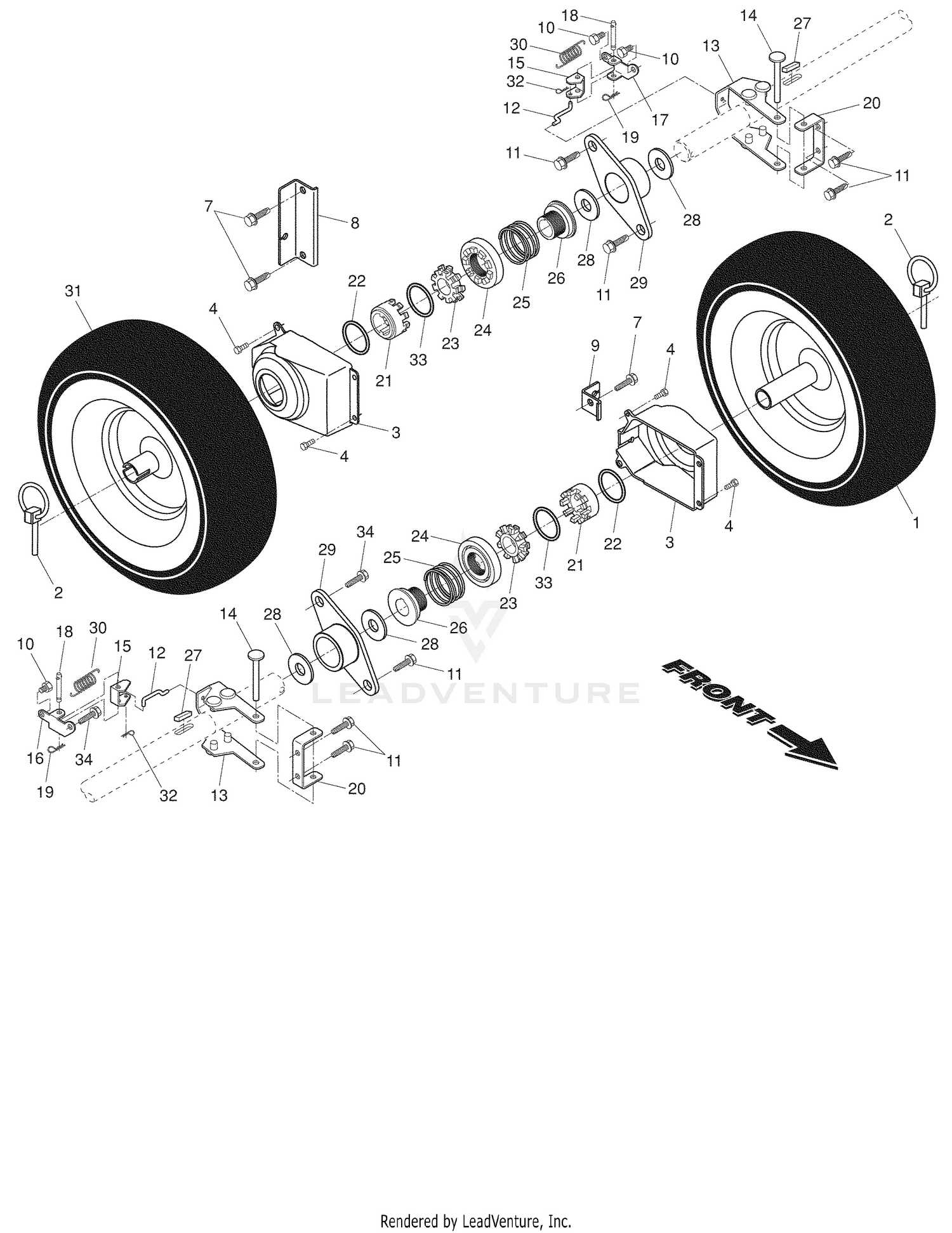

| Ref | Part Number | Description |
|---|
| 1 |
532439408 |
WHEEL.16X4.8.LH.1.0O.PS.BLACK This part replaces 532199501. Price: $139.99 |
| 1 |
70-1480 |
RELAY Price: $105.19 |
| 2 |
3218-2 |
NUT-JAM Price: $0.25 |
| 2 |
532155443 |
PIN KLIK, 1/4 Price: $3.99 |
| 3 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 3 |
532405161 |
COVER, POWER STEERING Price: $8.99 |
| 4 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 4 |
93-2169-01 |
BRACKET-RELAY This part replaces 93-2169. Price: $26.63 |
| 5 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 6 |
66-2750 |
DISCONTINUED Price: Call Us |
| 7 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 7 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 8 |
33115-040 |
SCREW-HH Price: $1.22 |
| 8 |
532185603 |
BRACKET, STEERING CABLE RH This part replaces 532187859. Price: $6.99 |
| 9 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 9 |
532415263 |
BRACKET.STEER.CABLE.LH.BZP Price: $3.99 |
| 10 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 10 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 11 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 11 |
66-8800 |
RELAY Price: $87.56 |
| 12 |
33113-016 |
SCREW-HH Price: $0.34 |
| 12 |
532405077 |
LINK.STEER.YOKE Price: $7.99 |
| 13 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 13 |
532445266 |
YOKE.WELDMENT.STEER.BLACK This part replaces 532199519. Price: $17.99 |
| 14 |
532182015 |
PIN, STEERING LEVER Price: $2.99 |
| 14 |
88-1270 |
DISCONTINUED Price: Call Us |
| 15 |
33113-030 |
SCREW-HH Price: $0.54 |
| 15 |
532194944 |
BELLCRANK.STEER.YZP This part replaces 532199518. Price: $3.99 |
| 16 |
532194939 |
BRACKET.STEER.PIVOT.LH.YZ This part replaces 532199512. Price: $4.99 |
| 16 |
94-1325 |
TIE-MOUNT, PUSH Price: $3.20 |
| 17 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 17 |
532194943 |
BRACKET.STEER.PIVOT.RH This part replaces 532199511. Price: $3.99 |
| 18 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 18 |
532181847 |
PIN, STEERING BELLCRANK Price: $4.99 |
| 19 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 19 |
93-2123-03 |
DISCONTINUED This part replaces 93-2123. Price: Call Us |
| 20 |
2412-104 |
CLAMP-R Price: $2.37 |
| 20 |
532184197 |
BRACKET.STEER.PNT.BLACK Price: $4.99 |
| 21 |
581645001 |
DRIVER.WHEEL This part replaces 532192126. Price: $27.99 |
| 21 |
93-2343 |
DISCONTINUED Price: Call Us |
| 22 |
532182466 |
RING, WIRE RETAINER Price: $3.99 |
| 22 |
93-2344 |
DISCONTINUED Price: Call Us |
| 23 |
532187622 |
LOBE WHEEL Price: $32.99 |
| 23 |
93-2340 |
WIRE HARNESS Price: $1,039.80 |
| 24 |
3290-415 |
RIVET Price: $0.28 |
| 24 |
581644901 |
SLIDE.CLUTCH.SNOW This part replaces 532194941. Price: $34.99 |
| 25 |
532179139 |
SPRING, CLUTCH SLIDE Price: $4.99 |
| 26 |
581645101 |
LOBE.AXLE This part replaces 532194940. Price: $8.99 |
| 26 |
92-5753 |
CLAMP-HOSE Price: $2.10 |
| 27 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 27 |
93-2036 |
CLAMP - AIR HOSE Price: $8.96 |
| 28 |
532007396 |
WASHER RACE BEARING THRUST This part replaces 532174697. Price: $3.99 |
| 28 |
68-3270 |
BUMPER-RUBBER Price: $37.99 |
| 29 |
532179830 |
BEARING, AXLE Price: $17.99 |
| 29 |
93-2270 |
HYD HOSE ASM Price: $91.88 |
| 30 |
117-9471 |
KIT-SERVICE,GR3250-D STEERING This part replaces 93-2269. Price: $105.67 |
| 30 |
532193885 |
SPRING LATCH Price: $3.99 |
| 31 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 31 |
532198267 |
KIT.WHEEL.HD.RH.16".GREY.SNOW This part replaces 532199502. Price: $149.99 |
| 32 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 32 |
93-7276 |
DECAL-DANGER Price: $15.13 |
| 33 |
812000045 |
RING Price: $5.99 |
| 33 |
93-6668 |
DECAL-BATTERY Price: $18.99 |
| 34 |
93-2035 |
HOSE - AIR CLEANER Price: $81.72 |
| 35 |
93-2256 |
HYD HOSE ASM Price: $52.48 |
| 36 |
93-2255 |
HYD HOSE ASM Price: $52.69 |
| 37 |
2412-39 |
CLAMP-R Price: $1.70 |
| 38 |
94-4519 |
TUBE-CONVOLUTE Price: $2.24 |
