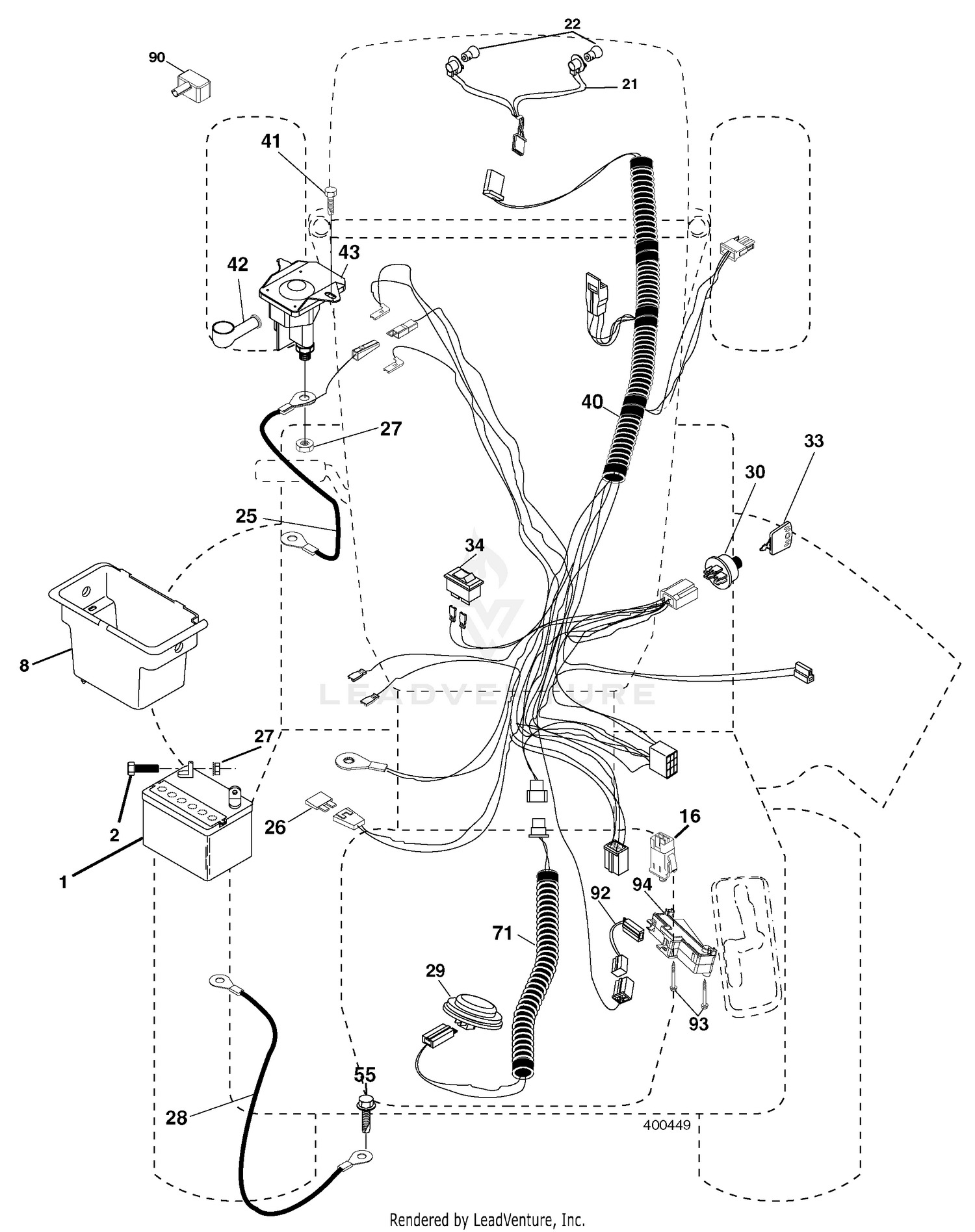

| Ref | Part Number | Description |
|---|
| 1 |
144927 |
Battery Price: Call Us |
| 2 |
74760412 |
Bolt Hex Head 1/4-20 x 3/4 Price: Call Us |
| 8 |
193228 |
Box Battery Price: Call Us |
| 10 |
108-6571 |
CRANKCASE ASM Price: $1,485.35 |
| 16 |
176138 |
Switch Interlock Push-In Price: Call Us |
| 20 |
98-9398 |
CAP-SEALING Price: $6.08 |
| 21 |
183759 |
Harness Socket Light W/4152J Price: Call Us |
| 22 |
4152J |
Bulb Light Price: Call Us |
| 25 |
401662 |
Cable Starter Price: Call Us |
| 26 |
175158 |
Fuse Price: Call Us |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 28 |
198885 |
Cable, Ground Price: Call Us |
| 29 |
401545 |
Switch, Seat Price: Call Us |
| 30 |
193350 |
Switch, Ignition Price: Call Us |
| 30 |
98-7539 |
CAP-SEALING Price: $6.44 |
| 33 |
140401 |
Key, Ignition Price: Call Us |
| 34 |
110712X |
Switch Light / Reset Price: Call Us |
| 40 |
400449 |
Harness Ignition Price: Call Us |
| 40 |
98-9687 |
PLUG This part replaces 98-7540. Price: $2.86 |
| 41 |
17720408 |
Screw Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 42 |
131563 |
Cover, Terminal Price: Call Us |
| 43 |
192507 |
Solenoid Price: Call Us |
| 50 |
105-3779 |
PLUG Price: $8.05 |
| 55 |
17490512 |
Screw Thdrol 5/16-18 x 3/4 TYTT Price: Call Us |
| 60 |
98-9597 |
PLUG Price: $17.66 |
| 70 |
98-7487 |
PLUG Price: $3.18 |
| 71 |
400451 |
Harness Ignition Dash Price: Call Us |
| 80 |
98-9379 |
PLUG-EXPANSION This part replaces 98-7489. Price: $0.76 |
| 90 |
180449 |
Cover Terminal Battery Price: Call Us |
| 90 |
98-9668 |
PLUG-EXPANSION Price: $2.17 |
| 92 |
196615 |
Harness Pigtail Price: Call Us |
| 93 |
192540 |
Screw Plastite 10-14 x 2.0 Price: Call Us |
| 100 |
98-9375 |
PIN-STRAIGHT Price: $0.41 |
| 110 |
98-9377 |
PIN-STRAIGHT Price: $1.00 |
| 120 |
105-3795 |
PIN-STRAIGHT Price: $0.99 |
| 130 |
98-9387 |
PIN-PIPE Price: $2.92 |
| 140 |
98-9539 |
PIN-PIPE Price: $1.15 |
| 150 |
98-9599 |
PLUG Price: $6.08 |
| 160 |
98-9630 |
PIN-SPRING, START Price: $1.47 |
| 170 |
98-9675 |
PLUG Price: $8.54 |
| 180 |
98-9656 |
BUSHING-GOVERNOR, GEAR Price: $29.04 |
| 190 |
98-7507 |
PLUG Price: $2.64 |
| 200 |
98-7428 |
GASKET Price: $0.68 |
| 220 |
99-3447 |
PLUG Price: $3.11 |
| 230 |
106-7056 |
GASKET Price: $1.48 |
