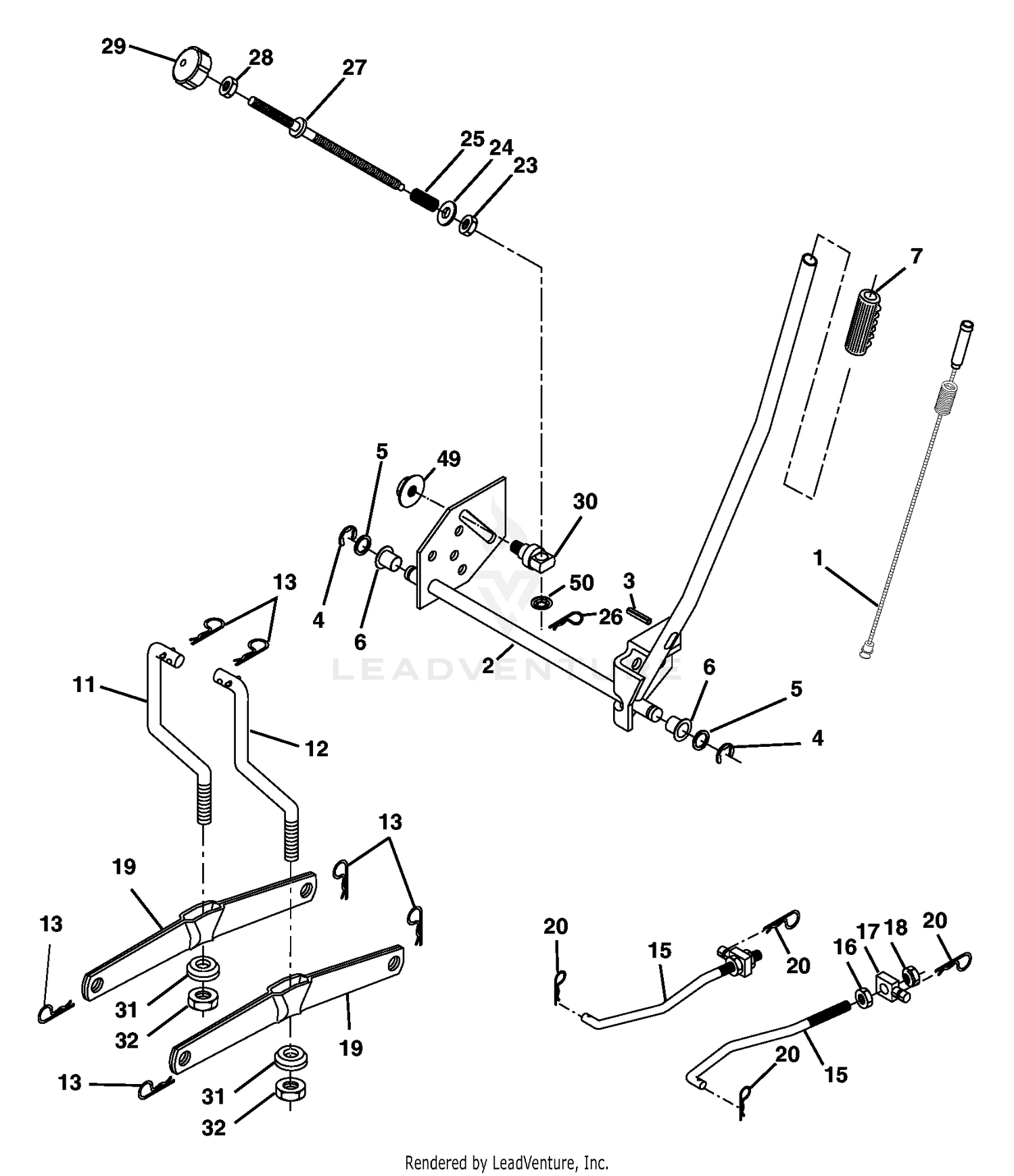

Mower Lift

Mower Lift

Parts (33)

RefPart NumberDescription
1 105-4292 NIPPLE-PIPE Price: $12.59
1 184432 Plunger Asm. Price: Call Us
2 104-0497 COVER Price: $111.48
2 159476 Shaft Asm Lift RH w/Inf Price: Call Us
3 188822 Pin Groove 2" Price: Call Us
4 12000002 E Ring #5133-62 Price: Call Us
5 104-4897 GASKET Price: $16.54
5 19211621 Washer 21/32 x 1 x 21 Ga. Price: Call Us
6 120183X Bearing Nylon Blk 629 Id Price: Call Us
6 98-4525 BRACKET-CLEANER, AIR Price: $52.87
7 104-0498 VALVE-VACUATOR Price: $14.68
7 175830 Grip Handle Price: Call Us
8 108-3810 FILTER-AIR Price: $23.84
11 139865 Link Lift LH Fixed Length Price: Call Us
12 139866 Link Lift RH Fixed Length Price: Call Us
13 4939M Retainer Spring Price: Call Us
15 173288 Link Front Price: Call Us
16 73350800 Nut Jam Hex 1/2-13 unc Price: Call Us
17 175689 Trunnion Price: Call Us
18 73800800 Nut Lock W/Wsh 1/2-13 unc Price: Call Us
19 139868 Arm Suspension Rear Price: Call Us
20 163552 Retainer Spring Price: Call Us
23 110807X Nut Special Price: Call Us
24 19131016 Washer 13/32 x 5/8 x 16 Ga. Price: Call Us
25 164024 Spring Infin. Height Price: Call Us
26 169484 Retainer Clip Price: Call Us
27 164543 Rod Adjust Lift Price: Call Us
28 73350600 Nut Hex Jam 3/8-16 unc Price: Call Us
29 138057 Knob Infin. 3/8-16 unc Price: Call Us
30 150233 Trunnion Infi. Height Price: Call Us
31 169865 Bearing Pvt Lift Price: Call Us
32 73540600 Nut Crownlock 3/8 - 24 Price: Call Us
49 145212 Nut Hexflange Lock Price: Call Us
