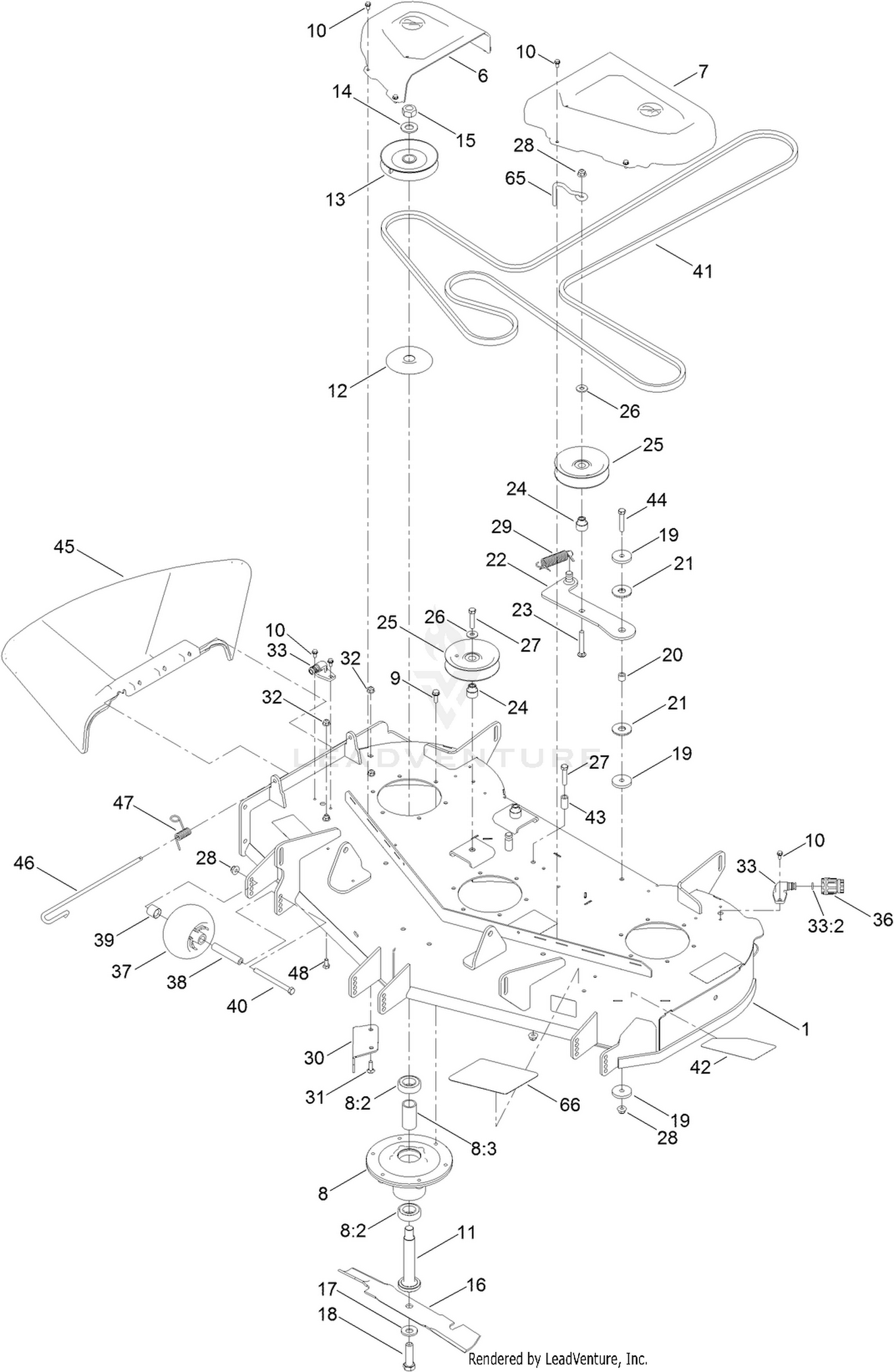

| Ref | Part Number | Description |
|---|
| 1 |
133-7066 |
DECK ASM Price: $851.06 |
| 6 |
133-9283 |
COVER-BELT, RH Price: $12.93 |
| 7 |
133-9282 |
COVER-BELT, LH Price: $14.23 |
| 8 |
139-2357 |
SPINDLE ASM Price: $74.46 |
| 9 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 10 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 11 |
115-2642 |
SHAFT-SPINDLE Price: $34.39 |
| 12 |
138-7221 |
SHIELD-BEARING Price: $3.29 |
| 13 |
138-7224 |
PULLEY Price: $37.48 |
| 14 |
7-4150 |
WASHER Price: $1.19 |
| 15 |
3219-7 |
NUT-HEX Price: $1.53 |
| 16 |
117-7277-03 |
BLADE-HI FLO, 16.50 INCH Price: $22.97 |
| 17 |
125-1736 |
WASHER-BELLEVILLE Price: $3.89 |
| 18 |
51-4060 |
SCREW-BLADE Price: $7.39 |
| 19 |
110-9981 |
WASHER-PLAIN Price: $13.99 |
| 20 |
138-7225 |
SPACER Price: $2.83 |
| 21 |
114-0463 |
WASHER-FRICTION, COMPOSITE Price: $4.79 |
| 22 |
138-7226 |
IDLER ARM ASM Price: $30.72 |
| 23 |
3231-31 |
SCREW-CARR Price: $1.29 |
| 24 |
138-7227 |
BUSHING-IDLER Price: $2.04 |
| 25 |
132-4718 |
PULLEY-IDLER, FLAT Price: $22.69 |
| 26 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 27 |
323-9 |
SCREW-HH Price: $1.29 |
| 28 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 29 |
138-7228 |
SPRING-EXTENSION Price: $2.61 |
| 30 |
117-7418-03 |
BAFFLE-CUTOFF Price: $14.30 |
| 31 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 32 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 33 |
133-9289 |
FITTING-WASHOUT Price: $3.86 |
| 36 |
95-3270 |
CONNECTOR-HOSE Price: $22.99 |
| 37 |
1-603299 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 38 |
138-7229 |
TUBE-SPANNER Price: $3.74 |
| 39 |
104-0892 |
SPACER-AXLE, REAR Price: $3.30 |
| 40 |
323-23 |
SCREW-HH Price: $2.07 |
| 41 |
133-7075 |
V-BELT Price: $117.10 |
| 42 |
139-3254 |
DECAL - DECK Price: $4.92 |
| 43 |
138-7230 |
SPACER-FENDER Price: $3.16 |
| 44 |
323-10 |
SCREW-HH Price: $0.89 |
| 45 |
133-1212 |
DEFLECTOR-DISCHARGE Price: $51.81 |
| 46 |
138-7231 |
PIN-CHUTE Price: $6.01 |
| 47 |
138-7232 |
SPRING-TORSION Price: $1.69 |
| 48 |
322-2 |
SCREW-HH Price: $0.69 |
| 65 |
136-5615 |
GUIDE-BELT, IDLER Price: $4.18 |
