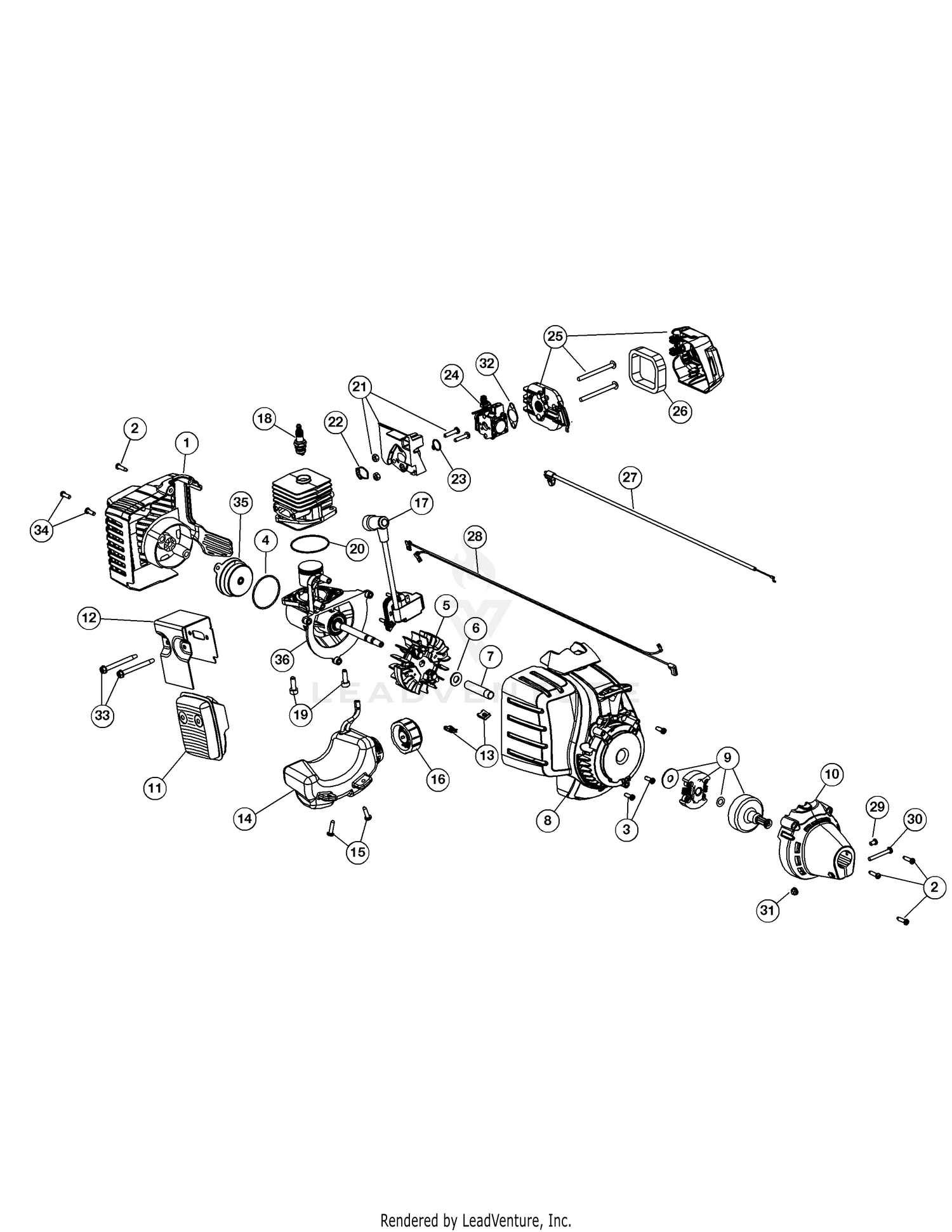

| Ref | Part Number | Description |
|---|
| 1 |
753-06177 |
Rear Cover Assembly (Incl. 2 & 34) Price: $16.43 |
| 2 |
791-181345 |
Cover Screw Price: $3.75 |
| 3 |
1964 |
SCREW:10-32X.5 This part replaces 791-181862. Price: $3.89 |
| 4 |
753-06174 |
O-Ring Price: $2.54 |
| 5 |
753-06175 |
Flywheel Assembly Price: $16.80 |
| 6 |
753-06247 |
Washer Price: $3.05 |
| 7 |
753-06218 |
Spacer Price: $2.57 |
| 8 |
753-06522 |
Starter Housing (Incl. 3 & 13) Not Available Price: |
| 9 |
753-05860 |
Clutch Assembly Price: $22.50 |
| 10 |
753-06181 |
CLUTCH COVER Not Available Price: |
| 11 |
753-08745 |
Muffler Assembly This part replaces 753-06418. Price: $23.25 |
| 12 |
753-06419 |
Muffler Gasket Price: $5.06 |
| 13 |
791-182366 |
U-shaped Nut Price: $4.90 |
| 14 |
753-06183 |
Fuel Tank Assembly (Incl. 15 & 16) Price: $11.96 |
| 15 |
791-181930 |
Tank Screw Price: $5.95 |
| 16 |
791-182612 |
Fuel Cap Price: $17.64 |
| 17 |
753-06303 |
Module Assembly Price: $46.59 |
| 18 |
753-06847 |
Spark Plug This part replaces 753-06193. Price: $6.35 |
| 19 |
791-182723 |
Crankcase Bolt Price: $4.02 |
| 20 |
753-06275 |
Crankcase O-Ring Price: $2.52 |
| 21 |
753-06189 |
Insulator Assembly (Incl. 22 & 23) Price: $6.65 |
| 22 |
753-06184 |
Insulator O-Ring Price: $2.93 |
| 23 |
753-06185 |
Carburetor O-Ring Price: $2.93 |
| 24 |
753-06190 |
Carburetor Price: $31.13 |
| 25 |
753-06415 |
AIRCLEANER COVER ASSEMBLY Not Available Price: |
| 26 |
753-06417 |
Aircleaner Filter Price: $2.30 |
| 27 |
753-06188 |
Throttle Cable Price: $6.73 |
| 28 |
753-06187 |
WIRE LEADS Not Available Price: |
| 29 |
791-182519 |
Anti-rotation Screw Price: $4.37 |
| 30 |
9689A |
Clamp Screw This part replaces 753-04003. Price: $9.81 |
| 31 |
712-0161 |
Clamp Nut Price: $4.02 |
| 32 |
753-06253 |
Air Cleaner Gasket Price: $2.98 |
| 33 |
753-06294 |
Muffler Screw Price: $2.52 |
| 34 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 35 |
753-06173 |
Electric Starter Cover Assembly Not Available Price: |
