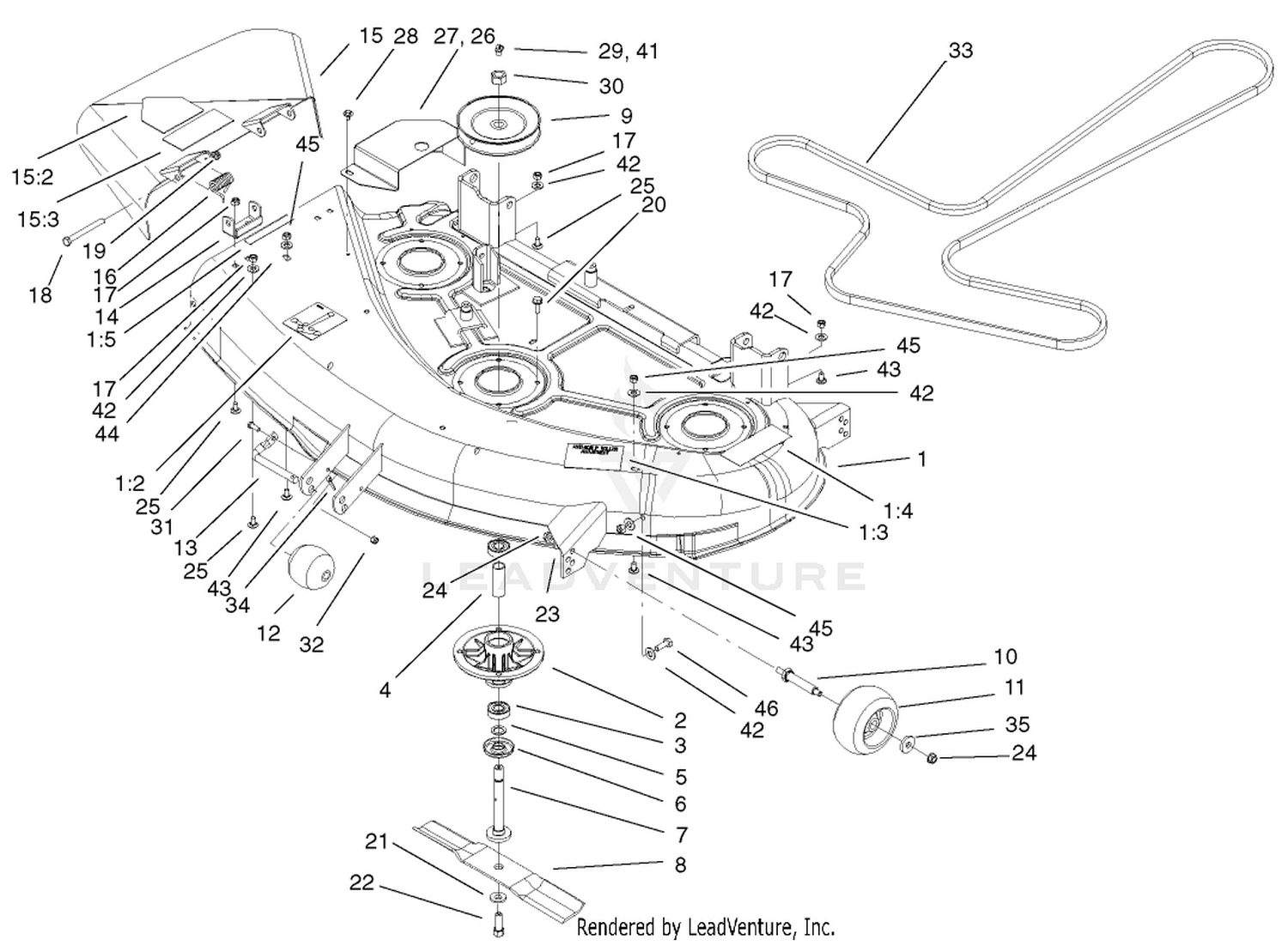

| Ref | Part Number | Description |
|---|
| 1 |
105-1948 |
DISCONTINUED Price: Call Us |
| 2 |
88-4510 |
HOUSING-SPINDLE Price: $71.13 |
| 3 |
109966 |
BEARING-BALL Price: $14.99 |
| 4 |
94-7959 |
SPACER-BEARING Price: $24.61 |
| 5 |
80-4380 |
SPACER Price: $4.08 |
| 6 |
80-4360 |
SHIELD-BEARING Price: $12.11 |
| 7 |
94-7547 |
SHAFT-CENTER, SPINDLE Price: $60.75 |
| 8 |
54-0010-03 |
BLADE Price: $22.97 |
| 9 |
100-7321 |
PULLEY ASM Price: $111.00 |
| 10 |
126-2928 |
KIT, ANTI-SCALP ROLLER AXLE This part replaces 99-2842. Price: $18.59 |
| 11 |
1-603299 |
ROLLER-SCALP, ANTI This part replaces 68-2730. Price: $21.99 |
| 12 |
29-4820 |
ROLLER Price: $14.88 |
| 13 |
118960-03 |
SHAFT-ROLLER Price: $25.18 |
| 14 |
29-5590-03 |
BRACKET-PIVOT Price: $23.25 |
| 15 |
100-8003 |
DEFLECTOR/DECAL ASM Price: $207.21 |
| 16 |
40-6230 |
SPRING Price: $37.99 |
| 17 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 18 |
3211-15 |
SCREW-HH Price: $7.99 |
| 19 |
3296-5 |
NUT-HEX Price: $3.09 |
| 20 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 21 |
3290-465 |
WASHER-BELLEVILLE Price: $2.89 |
| 22 |
26-0671 |
SCREW-HH Price: $7.99 |
| 23 |
98-5975 |
WASHER-BELLEVILLE Price: $3.09 |
| 24 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 25 |
3230-18 |
SCREW-CARR Price: $4.09 |
| 26 |
104-3646-01 |
COVER-BELT, LH Price: $41.76 |
| 27 |
104-3645-01 |
COVER-BELT, RH Price: $41.76 |
| 28 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 29 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 30 |
3219-6 |
NUT-HEX Price: $2.78 |
| 31 |
321-4 |
SCREW-HH Price: $0.99 |
| 32 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 34 |
3272-21 |
PIN-COTTER Price: $3.09 |
| 35 |
1-373034 |
WASHER Price: $3.19 |
| 41 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 42 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 43 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 44 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 45 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
