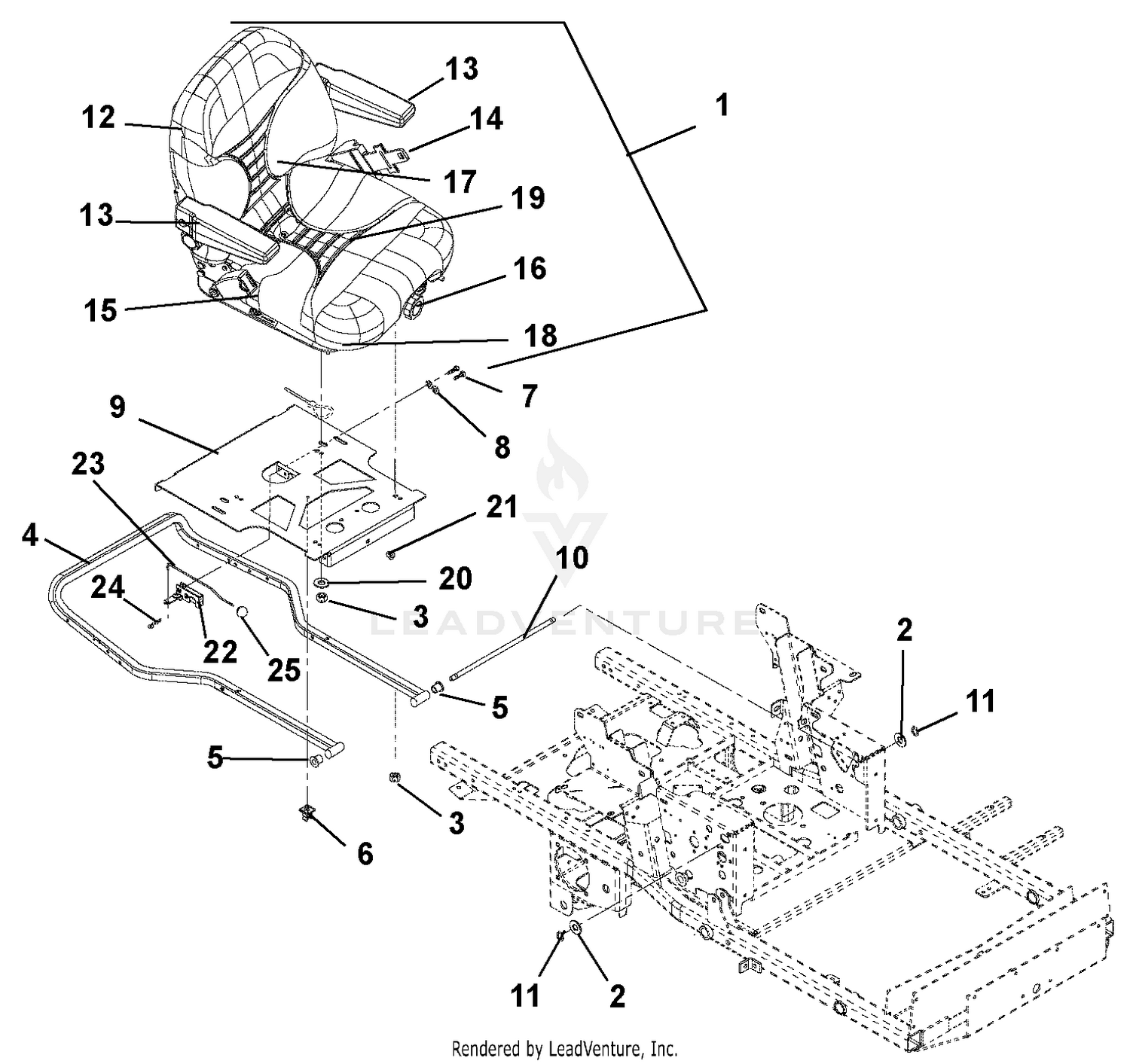

| Ref | Part Number | Description |
|---|
| 1 |
09680600 |
SEAT- FULL SUSPENSION This part replaces 04247900. Price: $744.95 |
| 2 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC This part replaces 06441900. Price: $0.95 |
| 3 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 4 |
09293353 |
WMT, HOOD FRAME Price: $214.45 |
| 5 |
05521100 |
BSHG-FLG .515X.750X.745X1.00NY Price: $2.45 |
| 6 |
00367900 |
ROUTING CLIP (1/2" ID) Price: $1.45 |
| 7 |
05901639 |
BLT,HEX .25-20X1.00 G5 ZCC This part replaces 05947700. Price: $1.45 |
| 8 |
06401009 |
WSHR-LK-REG .250X.062 ZCC This part replaces 06308400. Price: $0.45 |
| 9 |
04044851 |
PLATE, SEAT 200 XDZ WITH LATCH Price: $81.95 |
| 10 |
09245400 |
ROD - SEAT FRAME PIVOT Price: $101.95 |
| 11 |
05717100 |
RG-RTNG-EXT .500X.050 (SNAP) Price: $2.45 |
| 12 |
59208800 |
KIT-BACK CUSHION-LIGHT GRAY Price: $333.95 |
| 13 |
79211800 |
KIT, PLUSH 5300 ARMREST - PAIR Price: $153.95 |
| 14 |
59211400 |
KIT, RETRACTABLE SAFETY BELT Price: $117.95 |
| 15 |
59208900 |
KIT-SEAT CUSHION-LIGHT GRAY Price: $203.95 |
| 16 |
59208000 |
KIT-SEAT KNOB Price: $26.95 |
| 17 |
59208100 |
KIT-SEAT BACK PANEL Price: $138.95 |
| 18 |
59207900 |
KIT-SEAT SLIDE Price: $172.45 |
| 19 |
59207800 |
KIT-SPRING AND SADDLE Price: $144.45 |
| 20 |
06401104 |
WSHR, FLT .340X1.125X.135 ZCC This part replaces 06446300. Price: $3.95 |
| 21 |
05500020 |
BUSHING, POLYLINER-.38 SNAPIN Price: $2.45 |
| 22 |
04054600 |
LATCH-ROTARY-PUSH TO CLOSE Price: $21.45 |
| 23 |
04058100 |
ROD-SEAT LATCH RELEASE Price: $17.45 |
| 24 |
06700221 |
PIN-HAIR INT .06X.18X.77 This part replaces 06703300. Price: $0.45 |
