Home / OPE / Riding Products / 30657, LT3340 Heavy-Duty Triple Turf Mower Traction Unit, (SN 405598031-999999999) / Main Frame, Chassis, Front Wheel and Battery Assembly

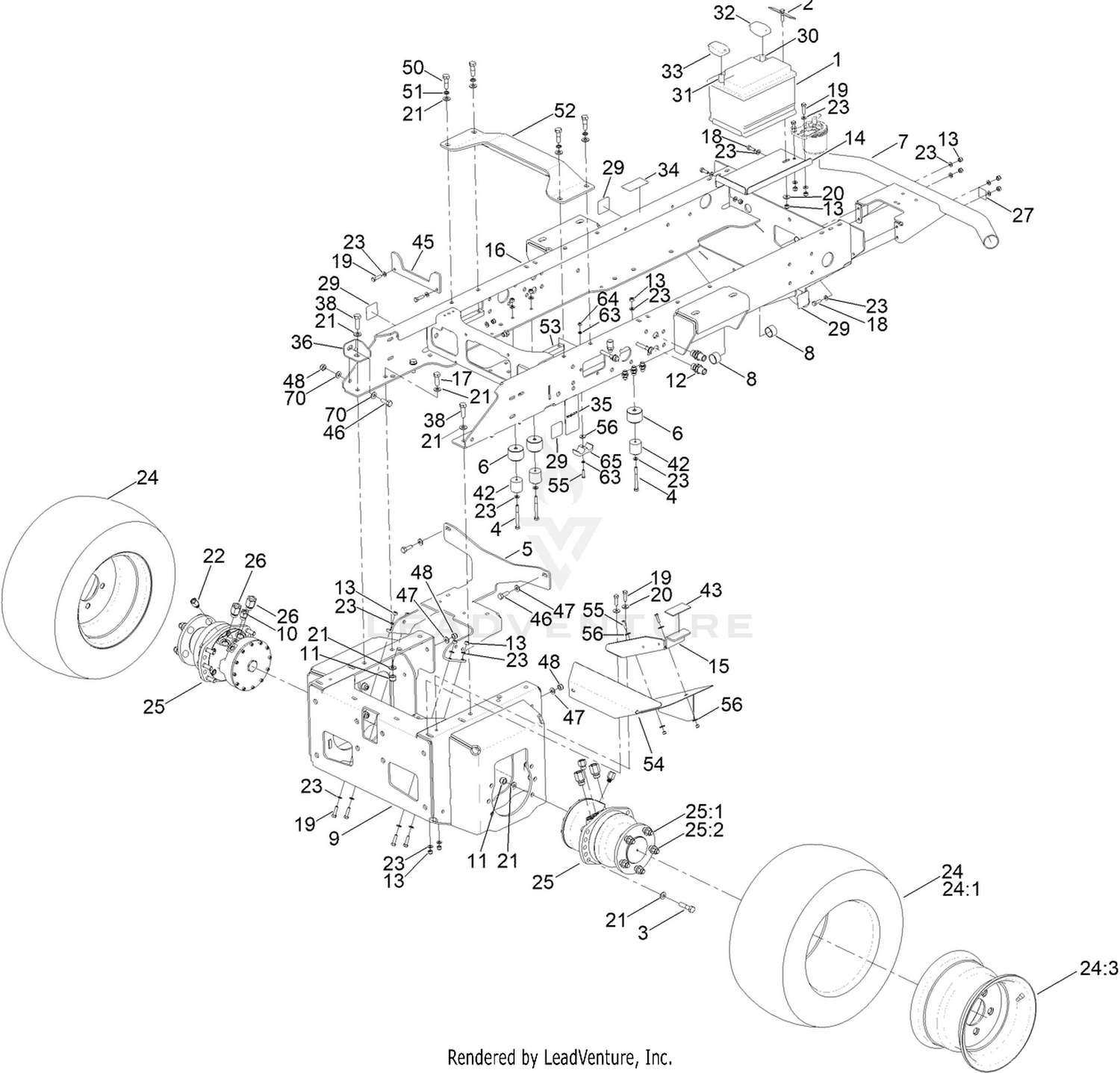

Main Frame, Chassis, Front Wheel and Battery Assembly

Main Frame, Chassis, Front Wheel and Battery Assembly

Parts (51)

RefPart NumberDescription
1 70-09-015 BATTERY Price: $137.52
2 70-01-340 BATTERY RETAINER W/ASSY Price: $50.28
3 09552 BOLT M12 X 50 HEX HD Price: $1.40
4 ZBH1H080U BOLT M8*80 Price: $1.38
5 111-6791-03 BRACKET-MANIFOLD, CUTTER Price: $124.40
6 111-5305 BUMP STOP Price: $20.82
7 111-3110-03 BUMPER REAR WELDED ASSY Price: $184.47
8 65-07-051 BUSHING Price: $8.47
9 111-2105-03 CHASSIS FRONT W/A Price: $797.81
10 111-3509 ADAPTOR 3/8" BSP - T1FQLD Price: $15.31
11 ZNN1L000U HEX.NUT NYLOC M12 Price: $1.40
13 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
14 111-2599-03 PLATE BATTERY MOUNT Price: $33.08
15 111-3217-03 PLATFORM SUPPORT FRONT LH Price: $53.28
16 111-7788-03 CHASSIS-REAR W/A Price: $755.49
17 ZDH1L035U HEX.HD.SET SCW.M12*35 Price: $1.38
18 03162 STEEL BOLT Price: $1.39
19 09369 SETSCREW M8 X 30 Price: $1.40
20 09267 WASHER 5/16 X 7/8 X 15G GALV Price: $1.39
21 HY09485 WASHER M12 PLAIN Price: $1.40
22 111-3538 ADAPTOR 1/4" BSP M - T1FQLD Price: $14.71
23 ZWP1H000U WASHER (M8) Price: $1.40
24 111-6878 WHEEL ASM Price: $428.56
25 134-3969 HYD MOTOR ASM Price: $1,936.17
26 111-3529 ADAPTOR 1/2" BSP M TO 8FQLH Price: $16.54
27 70-13-072 DECAL - JACKING POINT Price: $4.88
29 950832 DECAL Price: $5.78
30 70-09-171 TERMINAL Q R & VE Price: $13.80
31 122-1276 NEGATIVE BATTERY CABLE ASM This part replaces 70-09-172. Price: $75.81
32 111-3690 BATTERY CABLE +VE Price: $56.00
33 70-09-170 CABLE BATTERY - VE Price: $48.58
34 950889 DECAL WARNING HOT SURFACE Price: $22.13
35 111-3901 DECAL-TRANSMISSION, OIL Price: $4.30
36 111-7092-03 BRACKET-CHASSIS, UNIVERSAL Price: $14.82
38 ZDH1L040U HEX.HD.SET SCW M12*40 Price: $1.31
42 61-07-003 RUBBER BUFFER Price: $9.55
43 HY910808 STRIP - NEOPRENE Price: $15.11
45 111-5538-03 LOCATION-PLATE Price: $9.05
46 09392 SETSCREW M10 X 30 HEX HD Price: $1.31
47 09479 WASHER M10 X 21 X 1.45 THK (P) Price: $1.39
48 ZNN1J000U HEX.NUT NYLOC M10 Price: $1.42
50 63-11-010 HEX HD.BOLT M12*40HT/10.9 Price: $6.59
51 09599 WASHER Price: $1.42
52 111-7065-03 BRACE Price: $85.19
53 111-7094 BRACE-CHASSIS Price: $25.23
54 111-7252-03 DEFLECTOR-GRASS, CUTTER (LH) Price: $40.45
55 09364 SETSCREW M6 X 25 Price: $1.34
56 09262 WASHER 1/4 X 3/4 GALV ROOFING Price: $1.40
63 09472 WASHER-PLAIN Price: $1.25
64 09438 NUT M6 X 1.5 PLAIN Price: $1.39
65 56-7974 CLAMP-TUBE Price: $2.17
