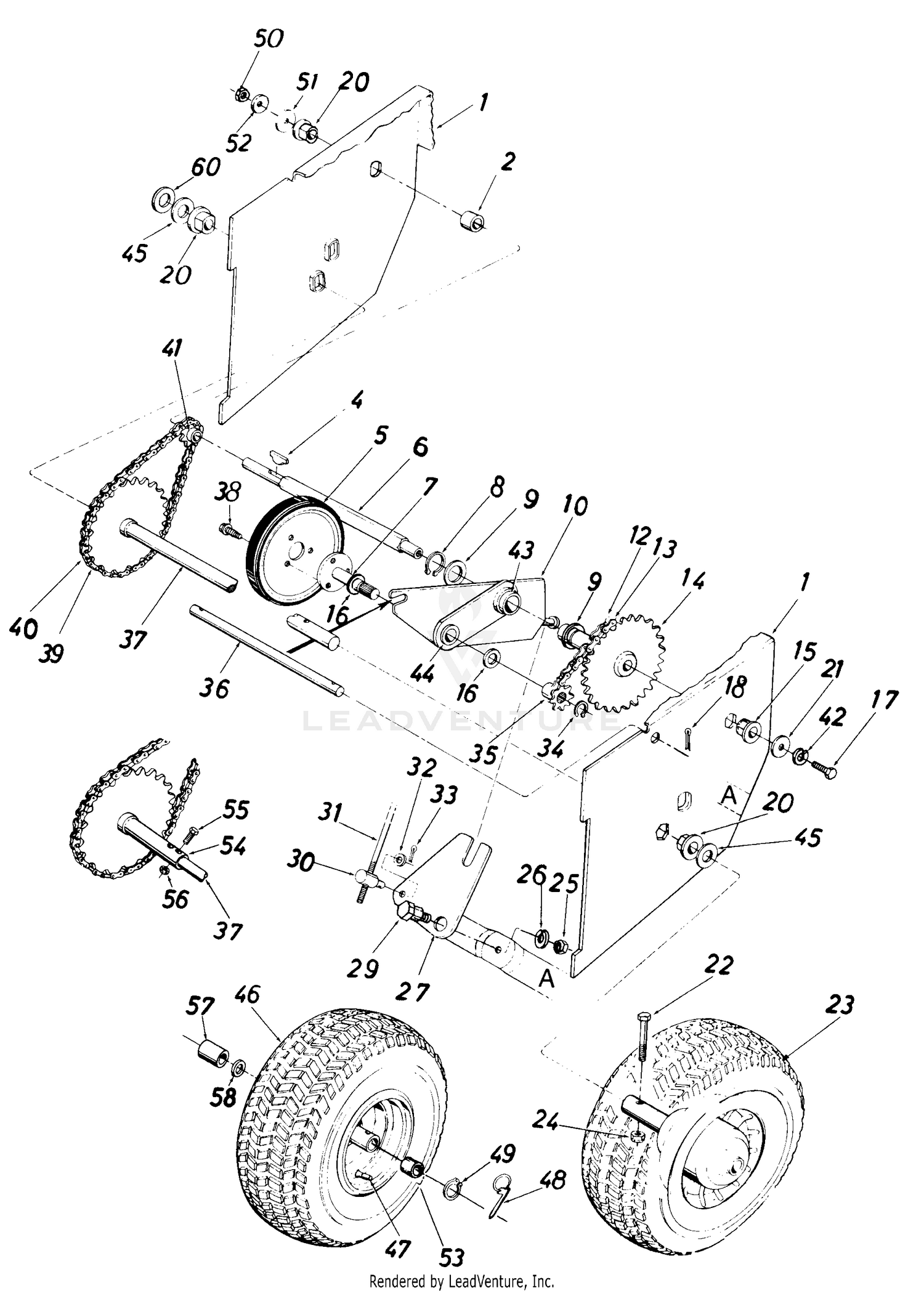

| Ref | Part Number | Description |
|---|
| 1 |
784-5197 |
FRAME ASSEMBLY Not Available Price: |
| 2 |
750-0499 |
Spacer .50" I.D. x 75" O.D. x.78" Lg. Price: $20.80 |
| 4 |
914-0129 |
KEY-HI-PRO #4-3/32X5/8 DIA Not Available This part replaces 714-0129. Price: |
| 5 |
05080AP |
Friction Wheel Ass'y. This part replaces 05080. Price: $28.61 |
| 6 |
738-0496 |
HEX SHAFT Not Available Price: |
| 7 |
05883 |
PLATE ASSEMBLY Not Available Price: |
| 8 |
716-0102 |
Snap Ring 1.00" Dia. Shaft Price: $4.40 |
| 9 |
736-0163 |
Fl-Wash. 1.00" x 1.63" O.D. x .03 Price: $4.05 |
| 10 |
05880 |
BRACKET AS Not Available Price: |
| 15 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 16 |
736-0290 |
FLAT WASHER Price: $6.32 |
| 17 |
710-0538 |
Hex Lock Bolt 5/16-18 x .62" Lg. Price: $4.02 |
| 18 |
714-0507 |
Cotter Pin 3/32" Dia. x .75" Lg. Price: $3.93 |
| 20 |
941-0490 |
Flange Brg. w/Flats .75" I.D. This part replaces 741-0490. Price: $11.60 |
| 21 |
736-0231 |
Fl-Wash. 34" I.D. x 1.12" O.D. x .125 Price: $4.02 |
| 25 |
912-3008 |
Jam Nut, 3/8-16 This part replaces 712-0342. Price: $4.08 |
| 26 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 29 |
738-0281 |
Shld. Bolt .625" Dia. x .170" Lg. Price: $9.16 |
| 30 |
911-0677 |
Engagement Ferru This part replaces 711-0677. Price: $15.59 |
| 31 |
747-0356 |
ROD-SHIFT Not Available Price: |
| 32 |
736-0264 |
Fl-Wash. .34" I.D. x .64" O.D. x .06 Price: $5.99 |
| 33 |
714-0507 |
Cotter Pin 3/32" Dia. x 75" Lg. Price: $3.93 |
| 34 |
716-0397 |
RETAINING RING Not Available This part replaces 716-0145. Price: |
| 35 |
713-0280 |
SPROCKET-7T Not Available Price: |
| 36 |
738-0497 |
Shaft 50" Dia. x 9.50" Lg. Price: Call Us |
| 38 |
710-0600 |
SCREW 5/16-24 x .500 Not Available Price: |
| 41 |
748-0204 |
CENTER SPROCKET #41-8T Not Available Price: |
| 42 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 43 |
741-04488 |
Bearing This part replaces 741-0476. Price: $8.17 |
| 44 |
748-0184 |
FLANGE BEARING .630 ID Not Available Price: |
| 47 |
934-0255 |
TUBELESS VALVE This part replaces 734-0255. Price: $3.83 |
| 50 |
712-0200A |
Hex Ins. L-Nut 1/2-20 Thd. This part replaces 712-0200. Price: $3.85 |
| 51 |
736-0179 |
Fl-Wash. 1/2" I.D. x .93" O.D. This part replaces 736-0257. Price: $4.02 |
| 52 |
736-0253 |
Bell-Wash. .50 I.D. x 1.0 O.D. x .075 Price: $3.58 |
