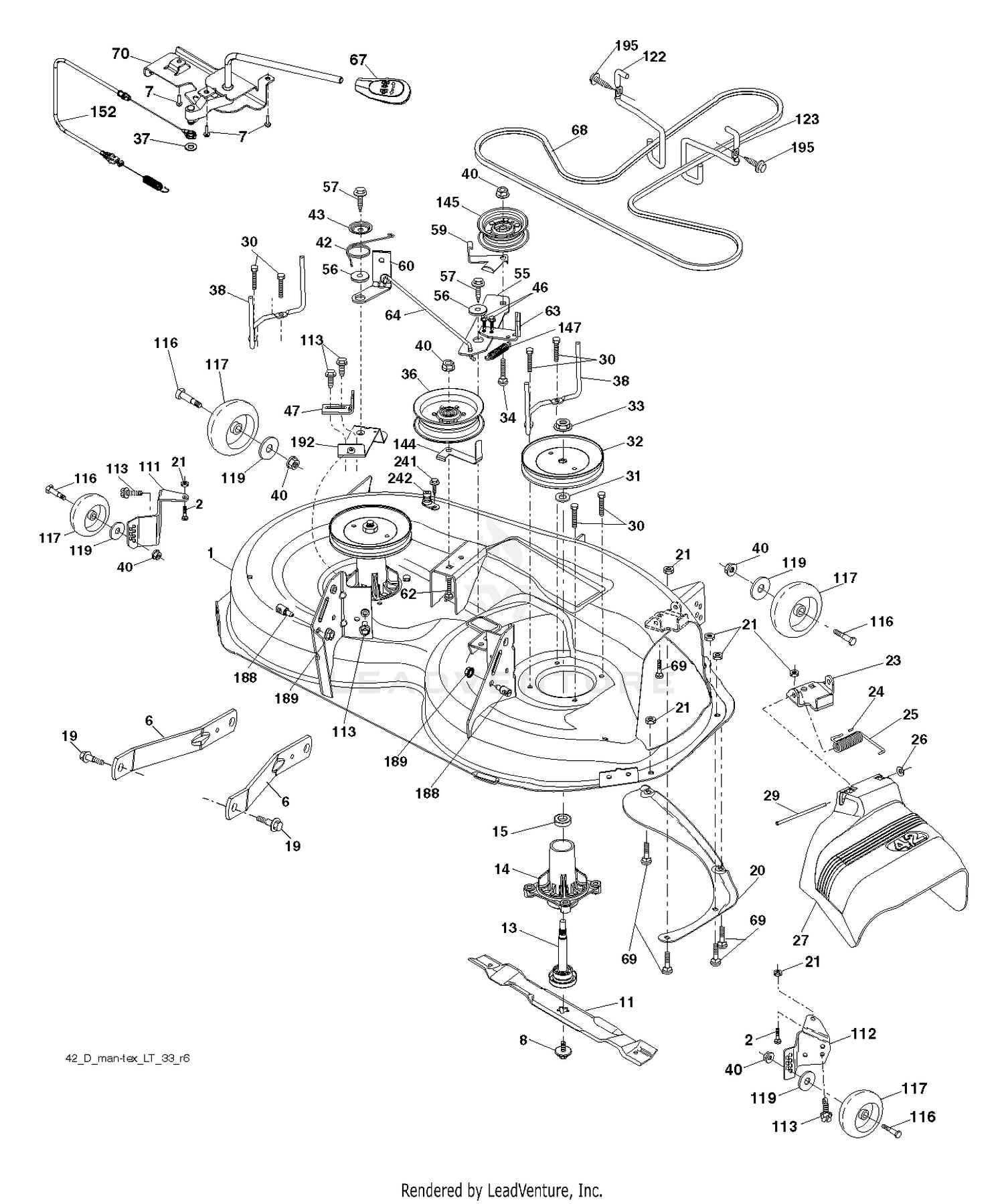

| Ref | Part Number | Description |
|---|
| 1 |
112-1403 |
ADAPTER ASM Price: $437.59 |
| 1 |
532199606 |
DECK.WELDMENT.42".2GWB.BLACK This part replaces 532196495. Price: $229.99 |
| 2 |
130-7823 |
ARM-LIFT This part replaces 112-1408. Price: $286.60 |
| 2 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE This part replaces 872140506. Price: $1.99 |
| 3 |
110-3362 |
BAR-PIVOT Price: $71.83 |
| 4 |
112-7695-03 |
HANDLE Price: $53.91 |
| 5 |
112-7686 |
LATCH Price: $40.54 |
| 6 |
532195186 |
ARM.SUSPENSION.MOWER.R Price: $8.99 |
| 7 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 7 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 8 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 9 |
323-7 |
SCREW-HH Price: $0.65 |
| 10 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 12 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 13 |
112-0038 |
SPACER Price: $7.34 |
| 13 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192872. Price: $32.99 |
| 14 |
532187281 |
HOUSING.MANDREL.4PT. Price: $22.99 |
| 14 |
99-7984 |
KNOB-SOFT GRIP, PUSH-ON Price: $11.31 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 15 |
75-5270 |
SPACER-KNOB, SEAT This part replaces 99-2058. Price: $4.61 |
| 16 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 17 |
144-7093 |
LINK ASM This part replaces 110-8105. Price: $105.96 |
| 18 |
92-2651 |
WASHER Price: $1.83 |
| 19 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 20 |
323-10 |
SCREW-HH Price: $0.89 |
| 20 |
532159770 |
BAFFLE.VORTEX Price: $12.99 |
| 21 |
132-4389 |
HANGER This part replaces 108-2941-03. Price: $129.61 |
| 21 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 22 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $3.99 |
| 23 |
84-2350 |
SPACER-LONG Price: $10.04 |
| 24 |
323-14 |
SCREW-HH Price: $1.34 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
323-15 |
SCREW-HH Price: $1.53 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 27 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC Price: $27.99 |
| 29 |
323-12 |
SCREW-HH Price: $1.14 |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
323-47 |
SCREW-HH Price: $1.22 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 31 |
121-1760 |
SPACER Price: $1.45 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
532195945 |
PULLEY.MANDREL.5.438.P This part replaces 532197473. Price: $7.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
114-4320 |
ROD-HANDLE Price: $9.07 |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 36 |
532196106 |
PULLEY.IDLER.2006 This part replaces 532197379. Price: $14.99 |
| 37 |
110-1364 |
CHAIN-PROOF, 12 LINK Price: $8.22 |
| 37 |
819131316 |
WASHER Price: $2.99 |
| 38 |
532432520 |
KEEPER.BELT.MANDREL.PULLEY Price: $5.99 |
| 39 |
115-2090 |
PAD-WEAR Price: $43.56 |
| 40 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 40 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 41 |
47-2910 |
WASHER-THRUST Price: $12.99 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $2.99 |
| 42 |
66-9300 |
SCREW-HHF Price: $4.69 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $2.99 |
| 43 |
92-2739 |
PIN-CLEVIS Price: $8.48 |
| 44 |
100-5024 |
PIN-CLEVIS Price: $7.44 |
| 45 |
119-8969 |
NUT-HEX Price: $1.29 |
| 46 |
120-3499-03 |
BRACKET-STOP This part replaces 120-3499. Price: $23.48 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 47 |
121-9062-03 |
TUBE-TONGUE This part replaces 121-9062. Price: $85.05 |
| 47 |
532197250 |
BRKT.CLUTCH.CABLE Price: $2.99 |
| 48 |
121-9065-03 |
HITCH ASM This part replaces 121-9065. Price: $39.94 |
| 49 |
325-22 |
SCREW-HH Price: $4.26 |
| 50 |
325-7 |
SCREW-HH Price: $1.53 |
| 51 |
3218-5 |
NUT-JAM Price: $0.27 |
| 52 |
3233-14 |
SCREW-CARR Price: $1.95 |
| 53 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 55 |
532437110 |
IDLER.ARM.42" Price: $4.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 59 |
532141043 |
GUARD, BELT Price: $3.99 |
| 60 |
532197402 |
ARM BRAKE MOWER This part replaces 532197261. Price: $11.99 |
| 62 |
872110616 |
BOLT Price: $3.99 |
| 63 |
532199478 |
ARM.BRAKE.ZINC This part replaces 532199477. Price: $12.99 |
| 64 |
532199918 |
LINKAGE.BRAKE.ASM.ZINC This part replaces 532199790. Price: $12.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $7.99 |
| 68 |
532429636 |
BELT.DECK.DRIVE.42" Price: $32.99 |
| 69 |
872140505 |
BOLT Price: $2.99 |
| 70 |
532199779 |
CLUTCH.ASM.MANUAL Price: $54.99 |
| 111 |
532404784 |
BRKT.WHEEL.GAUGE.LH.42" Price: $8.99 |
| 112 |
532404785 |
BRKT.WHEEL.GAUGE.RH.42" Price: $7.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $3.99 |
| 116 |
532004898 |
BOLT This part replaces 532124842. Price: $1.99 |
| 117 |
589527401 |
WHEEL.GAUGE.RALLY.NARROW This part replaces 532188606. Price: $2.99 |
| 119 |
734117201 |
WASHER This part replaces 819121414. Price: $1.99 |
| 144 |
532199204 |
KEEPER.BELT.MOWER Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 147 |
532401971 |
RETURN SPRING Price: $3.99 |
| 152 |
532435111 |
CABLE.CLUTCH.MANUAL. Price: $19.99 |
| 188 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 189 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 241 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $5.99 |
