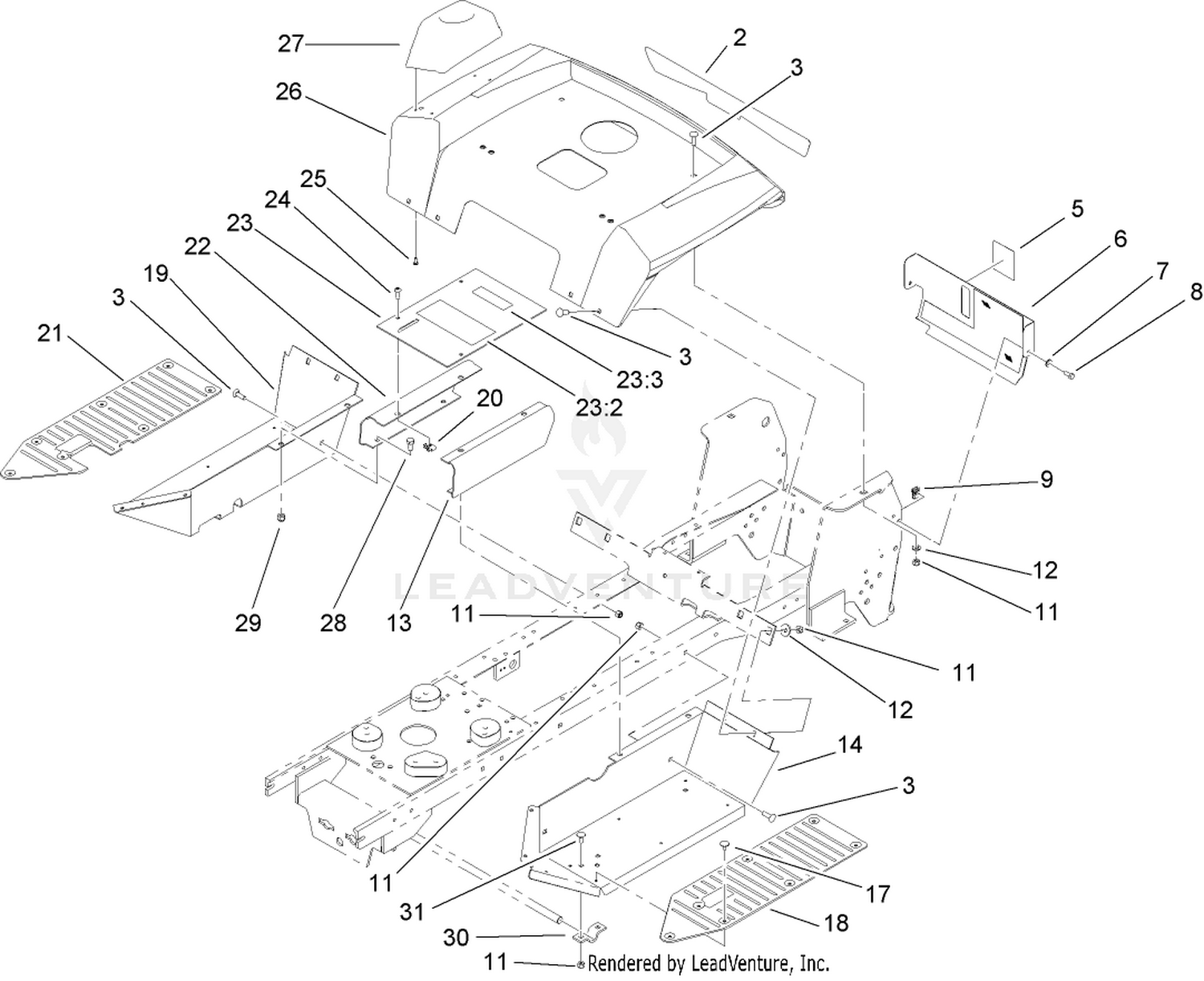

Fender and Footrest Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 106-5845 | DECAL-FENDER, REAR Price: $22.67 |
| 3 | 3230-31 | SCREW-CARR Price: $1.02 |
| 5 | 92-6727 | DECAL-LEVEL, FUEL Price: $6.35 |
| 6 | 99-6765-03 | DISCONTINUED Price: Call Us |
| 7 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 8 | 321-4 | SCREW-HH Price: $0.99 |
| 9 | 609900 | NUT-SPEED Price: $7.99 |
| 11 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 12 | 94-2869 | WASHER Price: $0.88 |
| 13 | 106-5594-03 | CHANNEL-SADDLE, LH Price: $38.01 |
| 14 | 92-6746-01 | DISCONTINUED Price: Call Us |
| 17 | 3290-479 | FASTENER-PANEL Price: $2.61 |
| 18 | 92-6688 | FOOTPAD-LH Price: $26.79 |
| 19 | 92-6747-01 | DISCONTINUED Price: Call Us |
| 20 | 107069 | CLIP Price: $1.79 |
| 21 | 92-6687 | FOOTPAD-RH Price: $26.79 |
| 22 | 106-5593-03 | CHANNEL-SADDLE, RH Price: $38.01 |
| 23 | 107-9214 | DISCONTINUED Price: Call Us |
| 24 | 92-7020 | SCREW-HH Price: $1.36 |
| 25 | 32144-20 | SCREW-HWH Price: $2.62 |
| 26 | 106-5583-01 | DISCONTINUED Price: Call Us |
| 27 | 104-0838 | DISCONTINUED Price: Call Us |
| 28 | 323-4 | SCREW-HH Price: $1.02 |
| 29 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 30 | 106288 | CLAMP Price: $8.76 |
