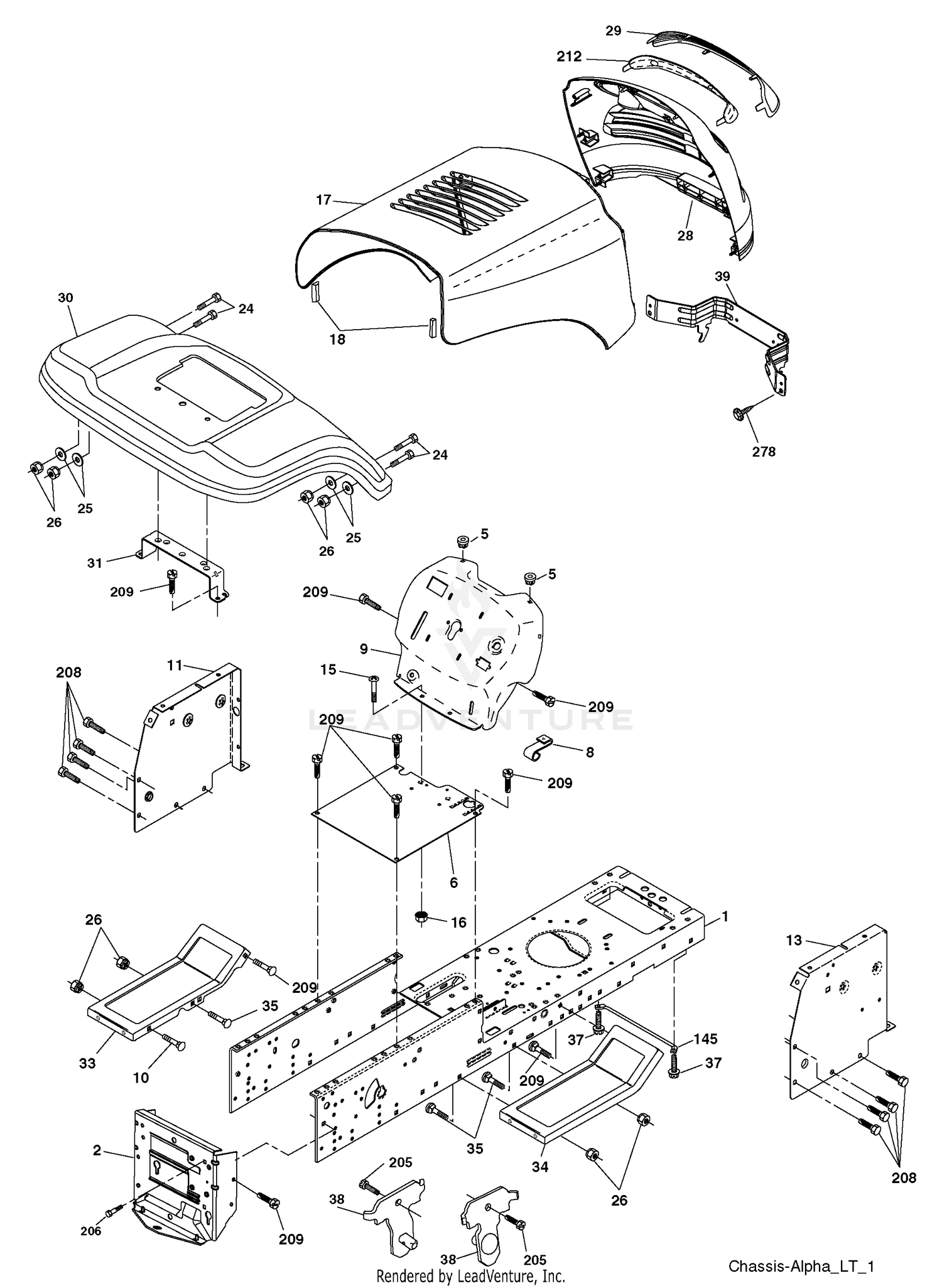

| Ref | Part Number | Description |
|---|
| 1 |
174620 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar, Stretch Price: Call Us |
| 5 |
155272 |
Bumper, Hood/Dash Price: Call Us |
| 6 |
184419 |
Saddle Price: Call Us |
| 8 |
155138 |
Clip Retainer Slide-On Price: Call Us |
| 9 |
193518X013 |
Dash Price: Call Us |
| 010 |
112-7000 |
PISTON ASM This part replaces 100-9181. Price: $594.20 |
| 010 |
99-5435 |
DISCONTINUED Price: Call Us |
| 10 |
72140608 |
Bolt, Carriage 3/8-16 x 1 Price: Call Us |
| 11 |
174996 |
Panel Dash LH Price: Call Us |
| 13 |
172105X010 |
Panel Slkscr Dash RH Price: Call Us |
| 15 |
74180512 |
Screw Mach TRHD 5/16-18 unc x 3/4 Price: Call Us |
| 16 |
73510500 |
Nut Keps 5/16-18 unc Price: Call Us |
| 17 |
187559X550 |
Hood Price: Call Us |
| 18 |
184921 |
Bumper Hood Price: Call Us |
| 020 |
100-9182 |
PISTON RING ASM (STD) Price: $207.83 |
| 020 |
99-5436 |
DISCONTINUED Price: Call Us |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 unc Price: Call Us |
| 29 |
187567X599 |
Lens Grille Bar Price: Call Us |
| 030 |
115-8544 |
PIN-PISTON This part replaces 98-7464. Price: $12.02 |
| 30 |
192525X550 |
Fender Price: Call Us |
| 31 |
136619 |
Bracket Fender Repl 109873X Price: Call Us |
| 33 |
179716X550 |
Footrest Pnt LH Price: Call Us |
| 34 |
179717X550 |
Footrest Pnt RH Price: Call Us |
| 35 |
72110606 |
Bolt Rdhd Sht Sqnk 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket Asm. Pivot Mower Price: Call Us |
| 39 |
187568 |
Bracket Pivot Price: Call Us |
| 040 |
98-7465 |
CLIP-PIN, PISTON Price: $1.15 |
| 050 |
120-5837 |
CONNECTING ROD ASM This part replaces 98-7466. Price: $636.87 |
| 060 |
98-7467 |
DISCONTINUED Price: Call Us |
| 070 |
120-5184 |
BOLT-CONNECTING ROD This part replaces 98-7468. Price: $2.86 |
| 080 |
115-8547 |
METAL-CRANKPIN (-0.20MM) This part replaces 98-7470. Price: $30.50 |
| 080 |
115-8548 |
METAL-CRANKPIN (-0.40MM) This part replaces 98-7471. Price: $20.98 |
| 080 |
98-7469 |
METAL-CRANKPIN (STD) Price: $51.49 |
| 090 |
98-7472 |
CRANKSHAFT-COMPLETE Price: $1,292.46 |
| 100 |
110-3729 |
BALL This part replaces 98-7473. Price: $0.69 |
| 110 |
98-7474 |
SLEEVE-CRANKSHAFT Price: $51.84 |
| 120 |
98-7475 |
GEAR-CRANKSHAFT Price: $167.20 |
| 130 |
98-7451 |
KEY-FEATHER Price: $1.72 |
| 140 |
98-7476 |
SLINGER-OIL Price: $12.10 |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 150 |
98-7477 |
COLLAR-CRANKSHAFT Price: $53.13 |
| 160 |
98-7478 |
O-RING Price: $2.39 |
| 170 |
98-7479 |
NUT-CRANKSHAFT Price: $23.66 |
| 180 |
98-7481 |
METAL-CRANKSHAFT (STD) Price: $45.98 |
| 180 |
98-7482 |
METAL-CRANKSHAFT (-0.20MM) Price: $18.75 |
| 180 |
98-7483 |
METAL-CRANKSHAFT (-0.40MM) Price: $55.04 |
| 190 |
98-7484 |
METAL-CRANKSHAFT (STD) Price: $34.20 |
| 190 |
99-6862 |
METAL-CRANKSHAFT (-0.20MM) Price: $63.26 |
| 190 |
99-6863 |
METAL-CRANKSHAFT (-0.40MM) Price: $63.74 |
| 200 |
127-0416 |
METAL-SIDE (+0.2MM) This part replaces 98-9414. Price: $21.04 |
| 200 |
98-9413 |
BEARING-THRUST (STD) This part replaces 99-6864. Price: $16.90 |
| 200 |
98-9415 |
BEARING-THRUST (0.4MM) Price: $9.77 |
| 205 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 210 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 98-9689. Price: $18.42 |
| 210 |
127-0438 |
METAL-SIDE (+0.40MM) This part replaces 99-6869. Price: $12.65 |
| 210 |
98-9688 |
BEARING-THRUST (STD) This part replaces 99-6867. Price: $16.90 |
| 212 |
187569 |
Insert Lens Reflect Price: Call Us |
| 278 |
191611 |
Screw 10 x 3/4 Single Lead Hex Price: Call Us |
| 278 |
5479J |
Plug Button Blk 359 Dia Choke Price: Call Us |
