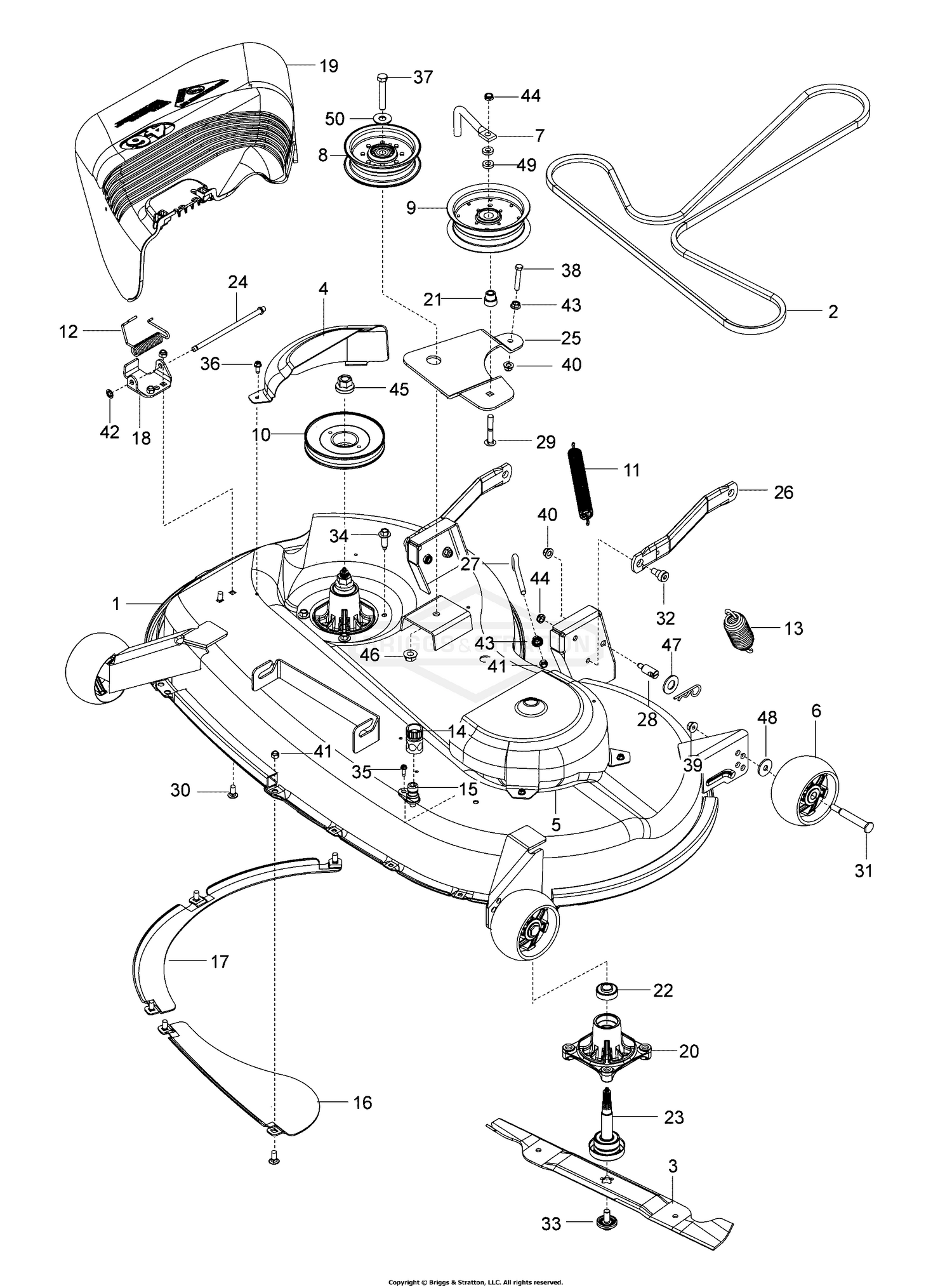

| Ref | Part Number | Description |
|---|
| 2 |
84005851 |
BELT Price: $172.72 |
| 3 |
704425 |
Blade Mower Hi-Lift Price: $36.73 |
| 4 |
84005852 |
GUARD, Pulley, Right Price: $38.51 |
| 5 |
84005853 |
GUARD, Pulley, Left Price: $59.99 |
| 6 |
84004085 |
WHEEL, Gauge Price: $13.29 |
| 7 |
84005854 |
GUIDE, Belt Price: $10.29 |
| 8 |
707999 |
PULLEY Price: $71.01 |
| 9 |
84005855 |
PULLEY, Idler Price: $59.91 |
| 10 |
84005856 |
PULLEY, Blade Price: $51.59 |
| 11 |
84005857 |
SPRING, Idler Pulley Price: $15.72 |
| 12 |
708194 |
Spring, Torsion Price: $6.56 |
| 13 |
84005700 |
SPRING Price: $15.08 |
| 14 |
705234 |
Coupling Quick Connect Price: $7.28 |
| 15 |
705231 |
Port Washout Price: $14.76 |
| 16 |
705153 |
Baffle Center Front Price: $41.72 |
| 17 |
705154 |
Baffle Front RH Price: $46.53 |
| 18 |
705056 |
Bracket, Deflector Price: $8.98 |
| 19 |
705435 |
Shield, Deflector Price: $167.28 |
| 21 |
84005858 |
BUSHING, Pulley Price: $12.29 |
| 22 |
84004240 |
BEARING, Mandrel Price: Call Us |
| 23 |
84005711 |
SPINDLE ASSEMBLY This part replaces 84005642. Price: $96.40 |
| 24 |
705009 |
ROD, HINGE Price: $7.02 |
| 25 |
84005859 |
ARM, Idler Price: $43.99 |
| 26 |
84005849 |
HANGER, Deck Price: $19.19 |
| 27 |
84005702 |
EYE BOLT Price: $6.99 |
| 28 |
705088 |
Stud Fastner W/'D'anti-Rotatio Price: $11.50 |
| 29 |
709419 |
BOLT, Round Head Square Neck, 3/8-16 x 2-1/4 Price: $4.69 |
| 30 |
84005866 |
BOLT, 5/16-18 X 3/4 GR. 5 ZD Price: $4.49 |
| 31 |
708232 |
Bolt, Shoulder Price: $6.79 |
| 32 |
84005714 |
SCREW, 3/8-16 X 3/8 SKT HD Price: $55.63 |
| 33 |
84004233 |
SCREW, 7/16-20 X 1 Hex Hd. Price: Call Us |
| 34 |
84004234 |
BOLT, .313-18 X 1.19 Price: Call Us |
| 35 |
84005951 |
SCREW, 10-24 X 5/8 Price: $6.99 |
| 36 |
705013 |
SCREW, 1/4-20X5/8 Price: $7.78 |
| 37 |
84005952 |
CAPSCREW, 7/16-14 X 2-1/2 Price: $9.79 |
| 38 |
705360 |
Bolt Full Thd 5/16-18 x 1-1/4 Price: $4.68 |
| 39 |
84004161 |
NUT, 3/8-16, Lock Price: $10.09 |
| 40 |
84005875 |
LOCKNUT, 5/16-18 HEX FLANGE NYLOC Price: Call Us |
| 41 |
705350 |
NUT, LOCK 5/16-18 UNC Price: $4.89 |
| 42 |
704991 |
NUT, PUSH Price: $6.90 |
| 43 |
84005908 |
NUT, 5/16-18 HEX WHIZ LOCK Price: $6.60 |
| 44 |
84005879 |
LOCKNUT, 3/8-16 HEX JAM NYLOC Price: $6.99 |
| 45 |
705134 |
NUT, TOPLOCK, FLANGED Price: $10.40 |
| 46 |
705354 |
Nut Lock Flange 7/16-14 Gr. 5 Price: $5.69 |
| 47 |
84005920 |
WASHER, 1- 5/16 13 GAUGE Price: $6.99 |
| 48 |
708748 |
WASHER Price: $7.79 |
| 49 |
84005953 |
WASHER, 3/8 Price: $6.99 |
