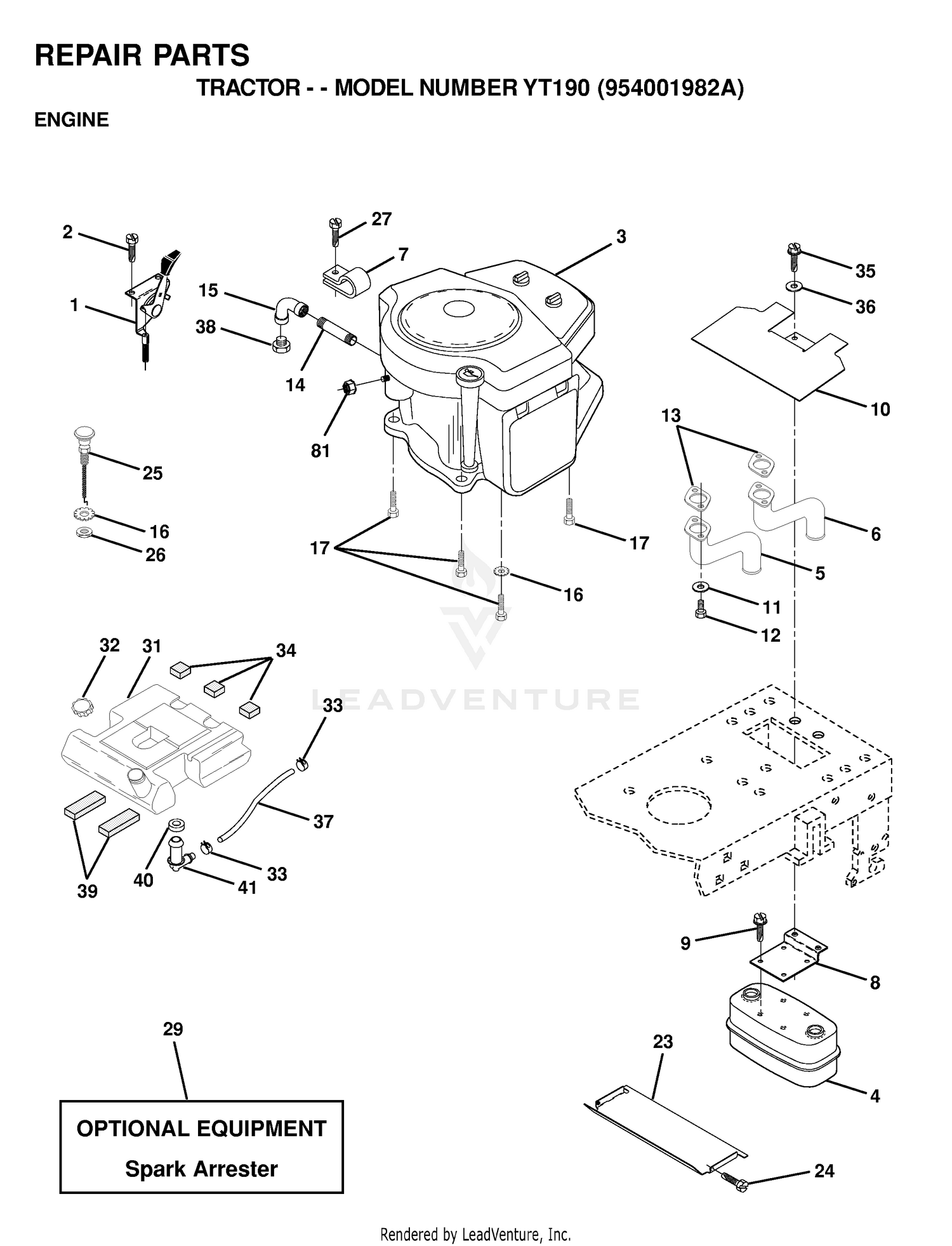

| Ref | Part Number | Description |
|---|
| 1 |
127-3075 |
FUEL/OIL FILTER ASM Price: $238.05 |
| 1 |
532132748 |
CONTROL.THROT.RH.BLK.FLG.44.75 Price: $20.99 |
| 2 |
127-3076 |
FUEL/OIL FILTER BRACKET ASM Price: $104.97 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 3 |
125-8752 |
FILTER-FUEL/OIL Price: $96.10 |
| 4 |
125-7216 |
BOLT Price: $3.48 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE This part replaces 532137978. Price: $39.99 |
| 5 |
127-3091 |
LIFTER-ENGINE Price: $4.94 |
| 5 |
532144069 |
EXHAUST ASM. LEFT Price: $39.99 |
| 6 |
127-3105 |
STAY-BRACKET, FILTER Price: $138.74 |
| 6 |
532144068 |
EXHAUST ASM. RIGHT Price: $22.99 |
| 7 |
125-7215 |
BOLT Price: $3.48 |
| 7 |
532138129 |
CLAMP Price: $3.99 |
| 8 |
125-7216 |
BOLT Price: $3.48 |
| 8 |
532122439 |
BRACKET MUFFLER Price: $6.27 |
| 9 |
127-3077 |
FUEL PIPE ASM Price: $97.23 |
| 9 |
596437001 |
Screws This part replaces 817190408. Price: $2.99 |
| 10 |
532145552 |
SHIELD HEAT LT Price: $5.99 |
| 12 |
125-7191 |
CLAMP-HOSE Price: $15.78 |
| 12 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 13 |
127-2981 |
BAND Price: Call Us |
| 13 |
532272250 |
GASKET (B&S 692282) Price: $14.99 |
| 14 |
138-7845 |
RETURN PIPE ASM This part replaces 127-3120. Price: $253.71 |
| 14 |
813280336 |
Nipple, Pipe 3/8 NPT x 4-1/2 Price: $2.42 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
127-3172 |
CLAMP-HOSE Price: $5.74 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 17 |
127-3078 |
FUEL PIPE ASM Price: $124.55 |
| 17 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 817490624. Price: $6.99 |
| 20 |
125-7191 |
CLAMP-HOSE Price: $15.78 |
| 21 |
127-3119 |
FUEL PIPE ASM Price: $258.51 |
| 22 |
127-2950 |
CLIP-HOSE Price: $6.01 |
| 23 |
532128953 |
HEAT SHIELD Price: $3.08 |
| 24 |
817021008 |
SCREW Price: $3.99 |
| 25 |
127-3087 |
BAND-CLIP Price: $2.45 |
| 25 |
532138672 |
CONTROL.CHOKE.51.00.BLK.W/BEND Price: $22.99 |
| 26 |
127-3079 |
FUEL PIPE ASM Price: $82.85 |
| 26 |
873610600 |
NUT Price: $2.99 |
| 27 |
127-2950 |
CLIP-HOSE Price: $6.01 |
| 27 |
817541008 |
SCREW Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
125-6900 |
LABEL-CAUTION, FUEL OIL Price: $5.51 |
| 31 |
532151346 |
FUEL TANK 3.5G This part replaces 532141070. Price: $84.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 35 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 36 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 37 |
587044854 |
HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532008543. Price: $14.99 |
| 39 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 40 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
