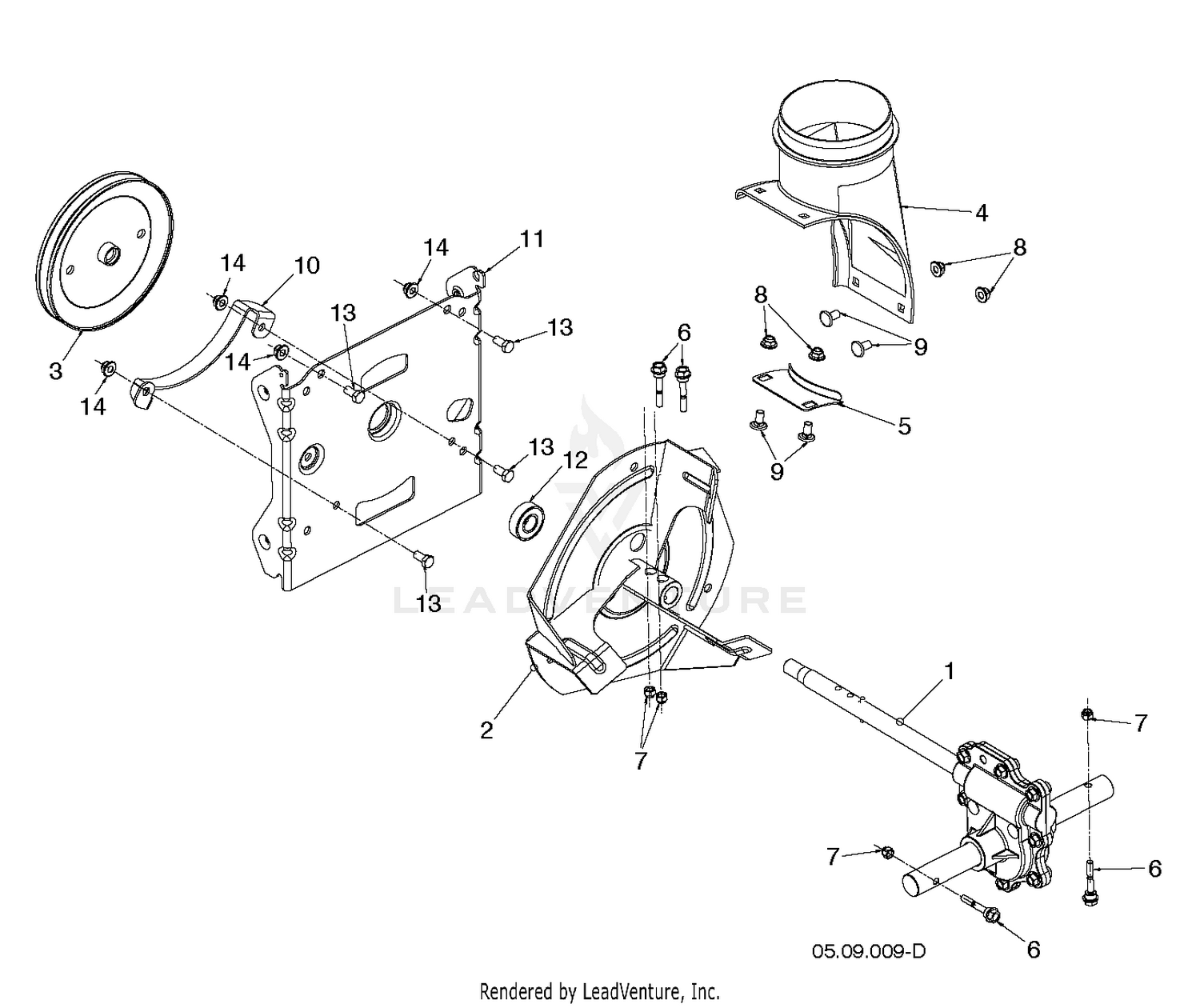

| Ref | Part Number | Description |
|---|
| 1 |
598831601 |
Service Kit This part replaces 586714801. Price: $199.99 |
| 1 |
76-4950 |
NUT-FLANGE Price: $12.75 |
| 2 |
586607203 |
IMPELLER STEEL.SNOW IMPELLER.S This part replaces 586607202. Price: $44.99 |
| 2 |
76-4940 |
PULLEY-PUMP Price: $196.38 |
| 3 |
586715201 |
PULLEY SCREW ON 7.3 Price: $14.99 |
| 3 |
94-3220 |
DISCONTINUED Price: Call Us |
| 4 |
585056901 |
CHUTE.DISCHARGE.BASE Price: $9.99 |
| 4 |
94-3225 |
SCREW-HH Price: $2.10 |
| 5 |
597433002 |
Brackets This part replaces 532184095. Price: $3.99 |
| 5 |
76-4930 |
WASHER Price: $0.93 |
| 6 |
588077502 |
BOLT SHEAR HX HD 1/4-20 CLEAR This part replaces 585511801. Price: $1.00 |
| 6 |
94-3165 |
NUT-HEX Price: $2.34 |
| 7 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 7 |
74-8610 |
PIN-SPRING Price: $2.73 |
| 8 |
585691301 |
NUT HEX FLG NYLOCK BLK 5_16-1 Price: $5.99 |
| 8 |
74-8630 |
BUSHING-FLANGE Price: $6.93 |
| 9 |
585691201 |
BOLT CARR WAFER BLK 5_16-18 X Price: $3.99 |
| 9 |
94-3224 |
WASHER-PLATE Price: $0.57 |
| 10 |
581632002 |
BRACKET.BELT.KEEPER.LOWER.BLAC Price: $5.99 |
| 10 |
94-3164 |
WASHER-SPRING Price: $1.20 |
| 11 |
581592503 |
NEEDS DESCRIPTION This part replaces 581592502. Price: $24.99 |
| 11 |
94-3221 |
SCREW-HH Price: $9.64 |
| 12 |
532198791 |
BEARING Price: $9.99 |
| 12 |
74-8650 |
PACER Price: $2.36 |
| 13 |
596031601 |
Screws This part replaces 532163183. Price: $2.99 |
| 13 |
74-8670 |
FUEL INLET ASM Price: $66.08 |
| 14 |
74-8680 |
GASKET Price: $5.51 |
| 15 |
48-7880 |
NUT-HEX This part replaces 94-3251. Price: $0.25 |
| 16 |
3255-10 |
WASHER-LOCK / EXT This part replaces 74-8710. Price: $0.25 |
| 17 |
98-8806 |
SOLENOID VALVE This part replaces 93-5856. Price: $251.17 |
| 18 |
94-3274 |
O-RING Price: $4.19 |
| 19 |
94-3219 |
DISCONTINUED Price: Call Us |
| 20 |
94-3222 |
KEY Price: $5.03 |
| 21 |
74-8870 |
DISCONTINUED Price: Call Us |
| 22 |
94-3249 |
TUBE-OUTLET Price: $52.36 |
| 23 |
94-3250 |
SCREW Price: $78.40 |
| 24 |
94-3161 |
DISCONTINUED Price: Call Us |
| 25 |
94-3223 |
SCREW-HH Price: $11.01 |
