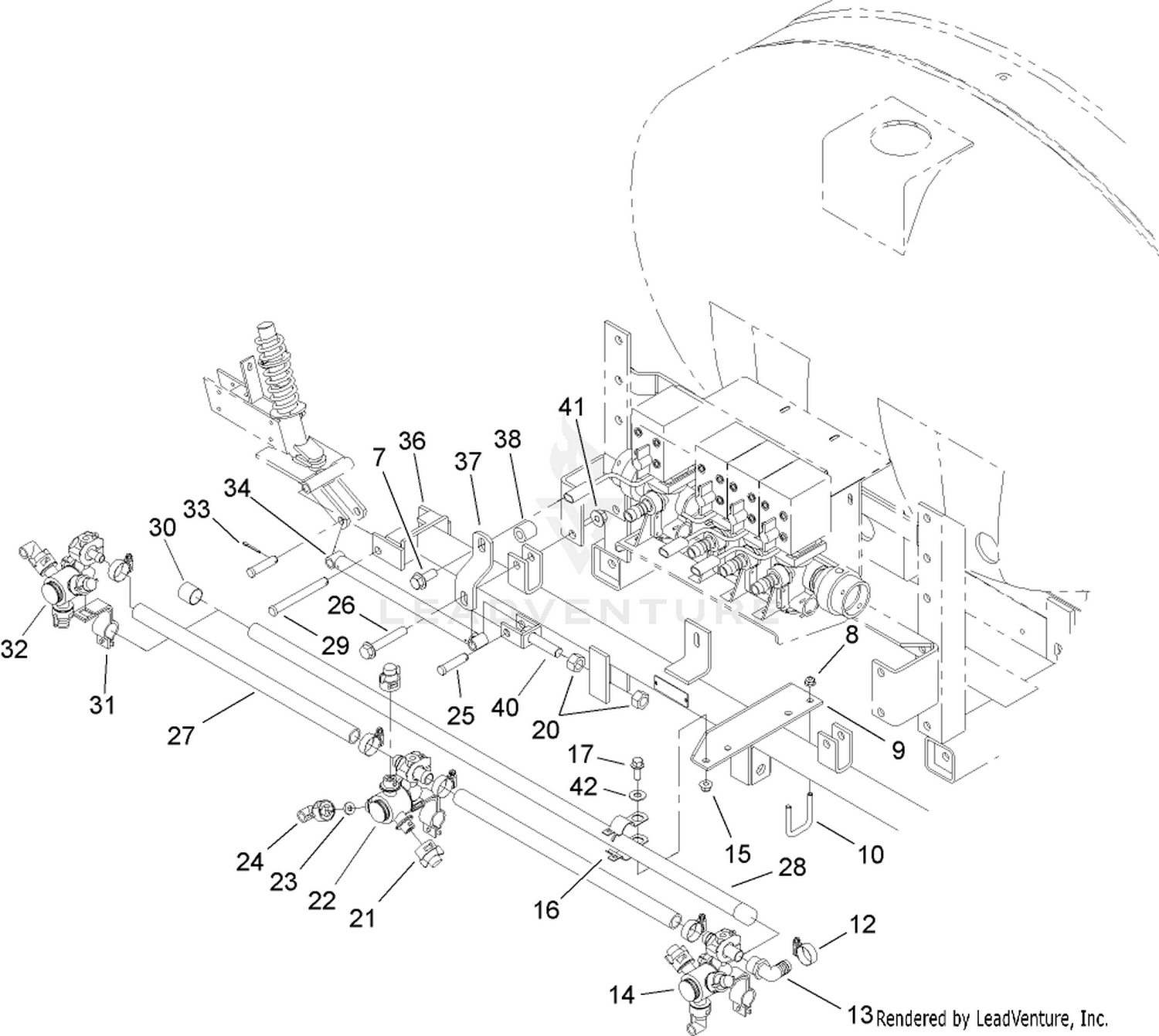

| Ref | Part Number | Description |
|---|
| 7 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 8 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 9 |
106-5085-03 |
PLATE-BOOM, CENTER Price: $19.41 |
| 10 |
301950 |
U-BOLT-SQUARE Price: $9.77 |
| 12 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 13 |
95-9314 |
DISCONTINUED Price: Call Us |
| 14 |
104-8790 |
BODY-TURRET, DOUBLE Price: $81.75 |
| 15 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 16 |
40494 |
CLAMP ASM Price: $26.94 |
| 17 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 20 |
3217-11 |
NUT-HEX Price: $0.95 |
| 21 |
95-9187 |
CAP-BLANK Price: $10.69 |
| 22 |
108-3727 |
DOUBLE TURRET BODY ASM This part replaces 104-8789. Price: $57.64 |
| 23 |
40998 |
SEAT-GASKET Price: $1.26 |
| 24 |
95-9186 |
CAP Price: $7.89 |
| 25 |
42195 |
PIN-CLEVIS Price: $6.11 |
| 26 |
3234-40 |
SCREW-HF Price: $3.38 |
| 27 |
40506 |
HOSE-JUMPER Price: $36.80 |
| 28 |
40493-03 |
PIPE-BOOM, CENTER Price: $70.39 |
| 29 |
283-83 |
PIN-CLEVIS Price: $9.52 |
| 30 |
92-8420 |
CAP-BOOM Price: $1.92 |
| 31 |
95-9185 |
CLAMP Price: $32.89 |
| 32 |
108-3725 |
LH SINGLE BODY TURRET ASM This part replaces 104-8787. Price: $57.64 |
| 33 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 34 |
42240-03 |
STRUT ASM Price: $54.18 |
| 36 |
42227-03 |
MAIN FRAME TUBE ASM Price: $672.98 |
| 37 |
104-8761-03 |
STRAP-SUPPORT, BOOM Price: $39.87 |
| 38 |
42257 |
SPACER-TUBULAR Price: $11.54 |
| 40 |
42237 |
ADJUSTABLE CLEVIS ASM Price: $69.25 |
| 41 |
32128-49 |
NUT-HHF Price: $1.04 |
