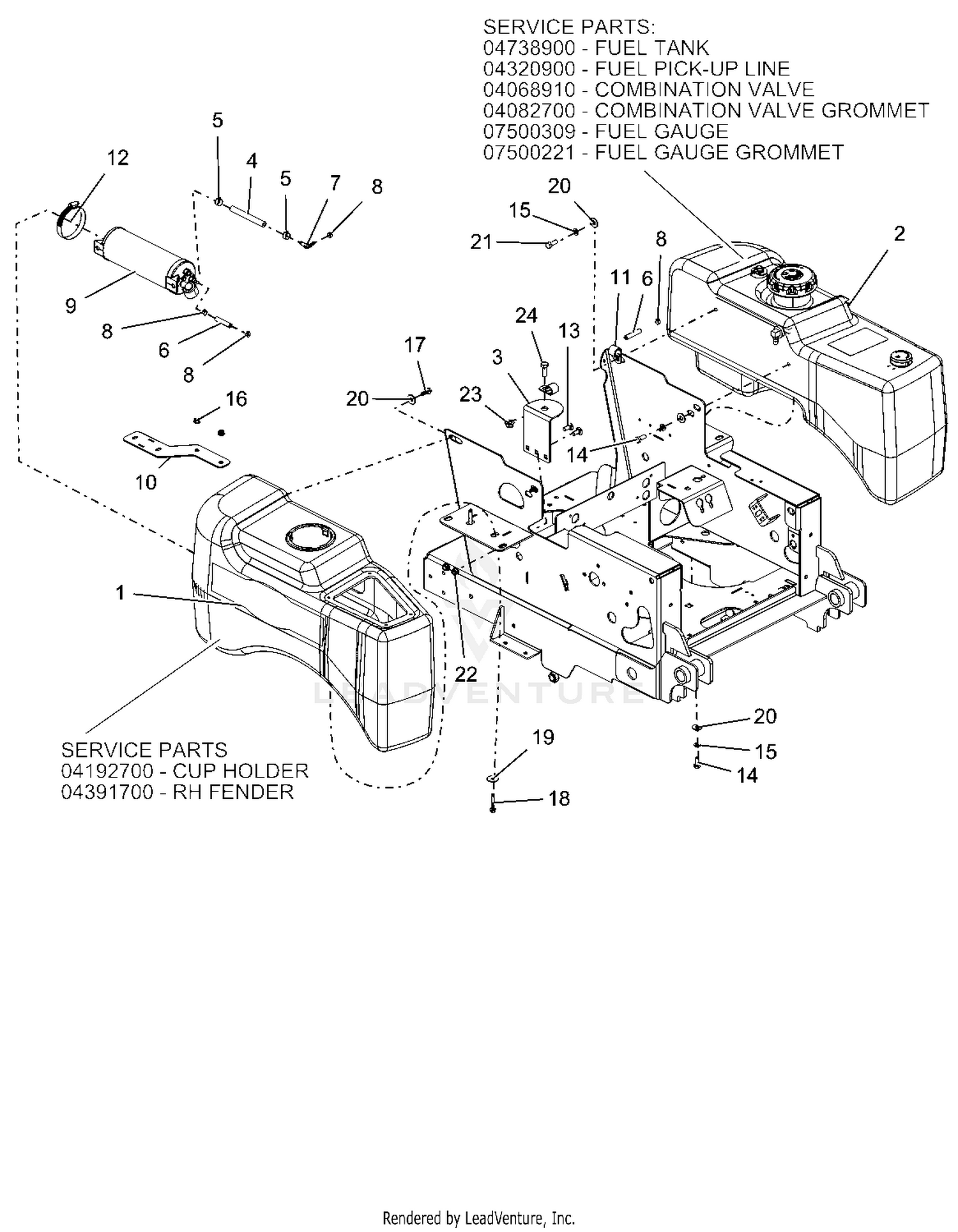

| Ref | Part Number | Description |
|---|
| 1 |
04685900 |
ASM, FENDER W/CUPHOLDER Price: $272.95 |
| 2 |
04739000 |
HD, FUEL TANK ASSEMBLY Price: $509.95 |
| 3 |
00361951 |
BRKT, FUEL VALVE MNTG Price: $6.45 |
| 5 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
| 6 |
03375900 |
HOSE, .188 LOW-PERM BULK GAS Price: $0.95 |
| 7 |
04097000 |
FITTING-3/16X1/4 90DEGREE VAC Price: $13.45 |
| 8 |
04097700 |
CLAMP-HOSE- SPRING .188 Price: $1.45 |
| 9 |
04545900 |
CANISTER, CARBON 9.3G CAP. Price: $70.95 |
| 10 |
04546051 |
PLATE, CANISTER MTG Price: $5.95 |
| 11 |
06900036 |
CLAMP, CUSHIONED STEEL .75 Price: $5.45 |
| 12 |
06940200 |
CLAMP-HOSE,WORM 2.3/3.2 SS #44 Price: $3.45 |
| 13 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC This part replaces 06215700. Price: $2.45 |
| 14 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 15 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 16 |
06500813 |
NUT,NYL-FLG .25-20 GF ZCC This part replaces 06500012. Price: $1.45 |
| 17 |
06100231 |
SCR, PLASTITE-HWH 0.25 X 0.75 ZC120 This part replaces 06100213. Price: $1.45 |
| 19 |
06401020 |
WSHR,FLT .281X1.000X.063 ZCC This part replaces 06426600. Price: $0.95 |
| 20 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
| 21 |
05901801 |
BLT, HEX .31-18X.875 G5 ZCC This part replaces 05947800. Price: $2.45 |
| 22 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 23 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
