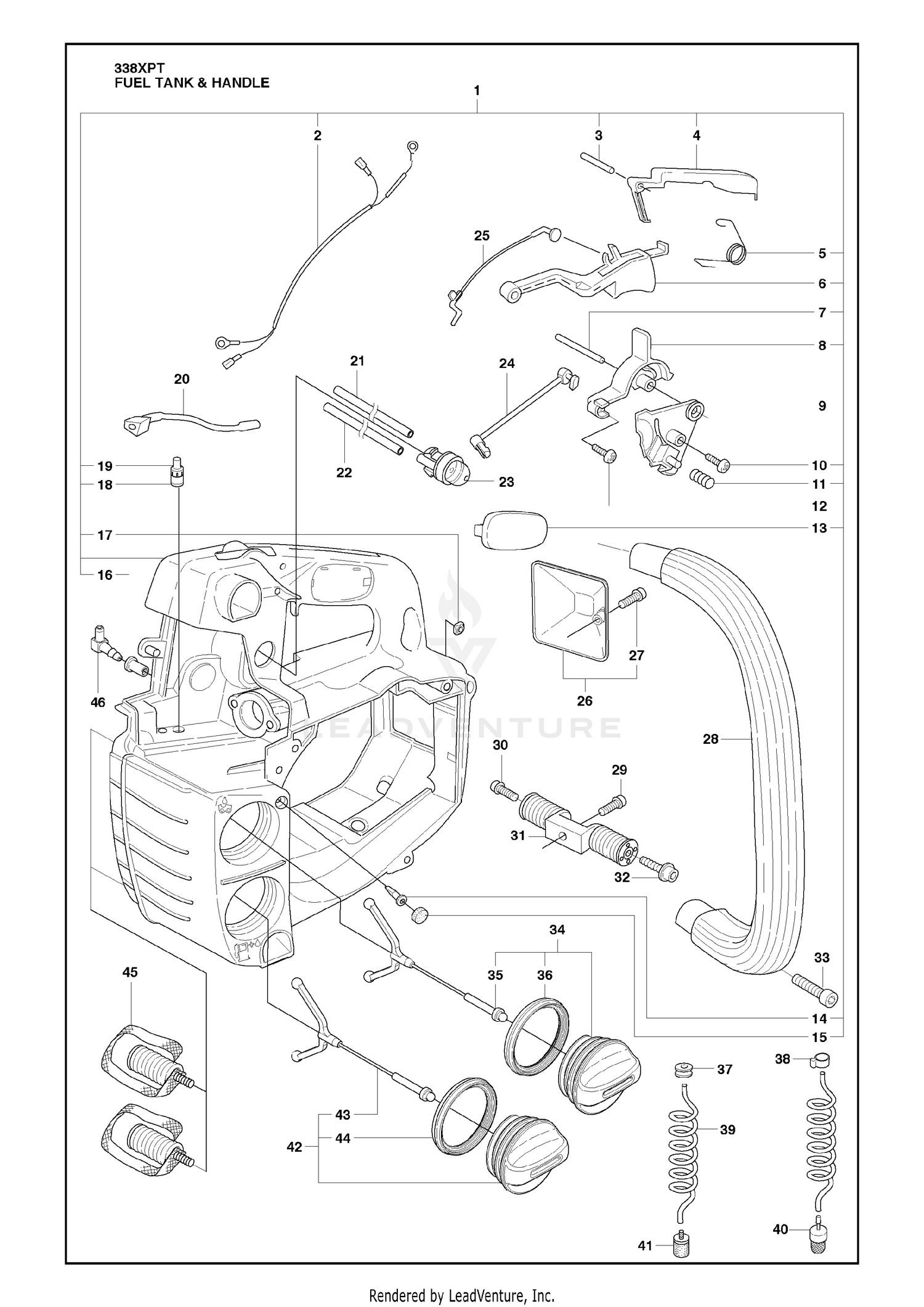

| Ref | Part Number | Description |
|---|
| 1 |
544110904 |
FUEL TANK Price: $119.99 |
| 1 |
94-5028 |
SEE PB #941 Price: Call Us |
| 2 |
503963201 |
CABLE ASSY Price: $22.99 |
| 2 |
93-6881 |
RIM ASM Price: $152.01 |
| 3 |
340-6 |
FITTING-STRAIGHT Price: $18.79 |
| 3 |
720182520 |
PIN This part replaces 720124020. Price: $1.99 |
| 4 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 4 |
503813301 |
THROTTLE LOCK Price: $5.99 |
| 5 |
10-6870-03 |
HUB-WHEEL This part replaces 10-6870. Price: $150.01 |
| 5 |
503851301 |
SPRING Price: $3.99 |
| 6 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 6 |
503813201 |
TRIGGER Price: $8.99 |
| 7 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 7 |
720124620 |
PIN Price: $3.99 |
| 8 |
503813401 |
SWITCH, START/STOP & CHOKE Price: $6.99 |
| 8 |
75-9990 |
HYD MOTOR ASM Price: $831.33 |
| 9 |
503813501 |
PLATE Price: $5.99 |
| 9 |
93-6782-01 |
FORK-WHEEL, REAR This part replaces 93-6782. Price: $916.89 |
| 10 |
3274-93 |
SCREW-HSH Price: $3.39 |
| 10 |
503212810 |
SCREW Price: $2.99 |
| 11 |
3220-3 |
NUT-HJ Price: $0.28 |
| 11 |
503929601 |
SPRING Price: $5.99 |
| 12 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 12 |
729565501 |
SCREW Price: $2.99 |
| 13 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 13 |
544042003 |
HANDLE INSERT GREY This part replaces 544042001. Price: $5.99 |
| 14 |
322-9 |
SCREW-HH Price: $3.09 |
| 14 |
530026119 |
VALVE-CHECK (DUCKBILL) Price: $4.99 |
| 15 |
3255-2 |
WASHER-LOCK, EXT Price: $0.95 |
| 15 |
503981301 |
PLUG Price: $5.99 |
| 16 |
537052801 |
SLEEVE Price: $5.99 |
| 16 |
75-7730 |
WASHER-THRUST Price: $2.88 |
| 17 |
325-6 |
SCREW-HH Price: $1.42 |
| 17 |
503226504 |
NUT Price: $4.99 |
| 18 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 18 |
501152901 |
FUEL TANK VENT This part replaces 537359501. Price: $14.99 |
| 19 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 19 |
537139701 |
CAP Price: $2.99 |
| 20 |
503842601 |
HOSE Price: $9.99 |
| 20 |
69-9760 |
COVERPLATE Price: $5.38 |
| 21 |
537042408 |
HOSE Price: $5.99 |
| 21 |
56-7976 |
CLAMP-TUBE Price: $2.44 |
| 22 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 22 |
537042409 |
HOSE Price: $5.99 |
| 23 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 23 |
503936601 |
AIR PURGE BUBBLE Price: $9.99 |
| 24 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 24 |
503822702 |
CHOKE ROD Price: $5.99 |
| 25 |
503822801 |
ROD Price: $4.99 |
| 25 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 26 |
537390501 |
SPARK PLUG COVER Price: $9.99 |
| 26 |
93-6843 |
HYD HOSE ASM Price: $194.30 |
| 27 |
503215601 |
SCREW Price: $2.99 |
| 27 |
61-2070-03 |
TUBE-STEERING This part replaces 61-2070. Price: $89.00 |
| 28 |
237-30 |
O-RING Price: $2.50 |
| 28 |
503816901 |
HANDLE Price: $27.99 |
| 29 |
503200216 |
SCREW Price: $3.99 |
| 30 |
503200216 |
SCREW Price: $3.99 |
| 31 |
503823302 |
VIBRATION ABSORBER Price: $19.99 |
| 32 |
503200216 |
SCREW Price: $3.99 |
| 33 |
503218830 |
SCREW Price: $2.99 |
| 34 |
537215207 |
TANK CAP This part replaces 537215202. Price: $9.99 |
| 35 |
503578901 |
TANK LOCK Price: $4.99 |
| 36 |
589241101 |
SEALING This part replaces 537215001. Price: $4.99 |
| 37 |
503735801 |
FUEL TANK BUSHING Price: $5.99 |
| 38 |
537184901 |
O-RING This part replaces 537051101. Price: $3.99 |
| 39 |
591375201 |
KIT HOSE SPIRAL 300 This part replaces 544325002. Price: $4.99 |
| 40 |
503967501 |
OIL PLUMMET Price: $8.99 |
| 41 |
591375401 |
KIT FUEL FILTER This part replaces 503443201. Price: $8.99 |
| 42 |
537215204 |
TANK CAP LIGHT GRAY Price: $9.99 |
| 43 |
503578901 |
TANK LOCK Price: $4.99 |
| 44 |
589241101 |
SEALING This part replaces 537215001. Price: $4.99 |
| 45 |
503853804 |
ANTI-VIBE ELEMENT Price: $17.99 |
