| Ref | Part Number | Description |
|---|
| 1 |
40-9520 |
SPACER Price: $0.33 |
| 2 |
32122-28 |
SCREW Price: $5.02 |
| 3 |
56-2770 |
EXTENSION SPRING Price: $17.95 |
| 4 |
56-3330-01 |
TENSION ADJ CONT WA This part replaces 56-3330. Price: $51.05 |
| 5 |
32128-13 |
NUT-HF Price: $1.79 |
| 6 |
56-3340-01 |
TENSION ADJ BRKT WA This part replaces 56-3340. Price: $23.64 |
| 7 |
321-4 |
SCREW-HH Price: $0.99 |
| 8 |
59-5390 |
SPRING BRACKET Price: $45.02 |
| 9 |
56-2780 |
CABLE RETAINER Price: Call Us |
| 10 |
252-98 |
THRUST WASHER Price: Call Us |
| 11 |
56-3360-01 |
PULLEY BRKT This part replaces 56-3360. Price: $8.81 |
| 12 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 13 |
3-8775 |
DISCONTINUED Price: Call Us |
| 14 |
256-159 |
BUSHING Price: $24.63 |
| 15 |
56-3350 |
CABLE Price: $49.86 |
| 16 |
59-5400 |
BOLT-SHOULDER Price: $50.99 |
| 17 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 18 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 19 |
16-2009 |

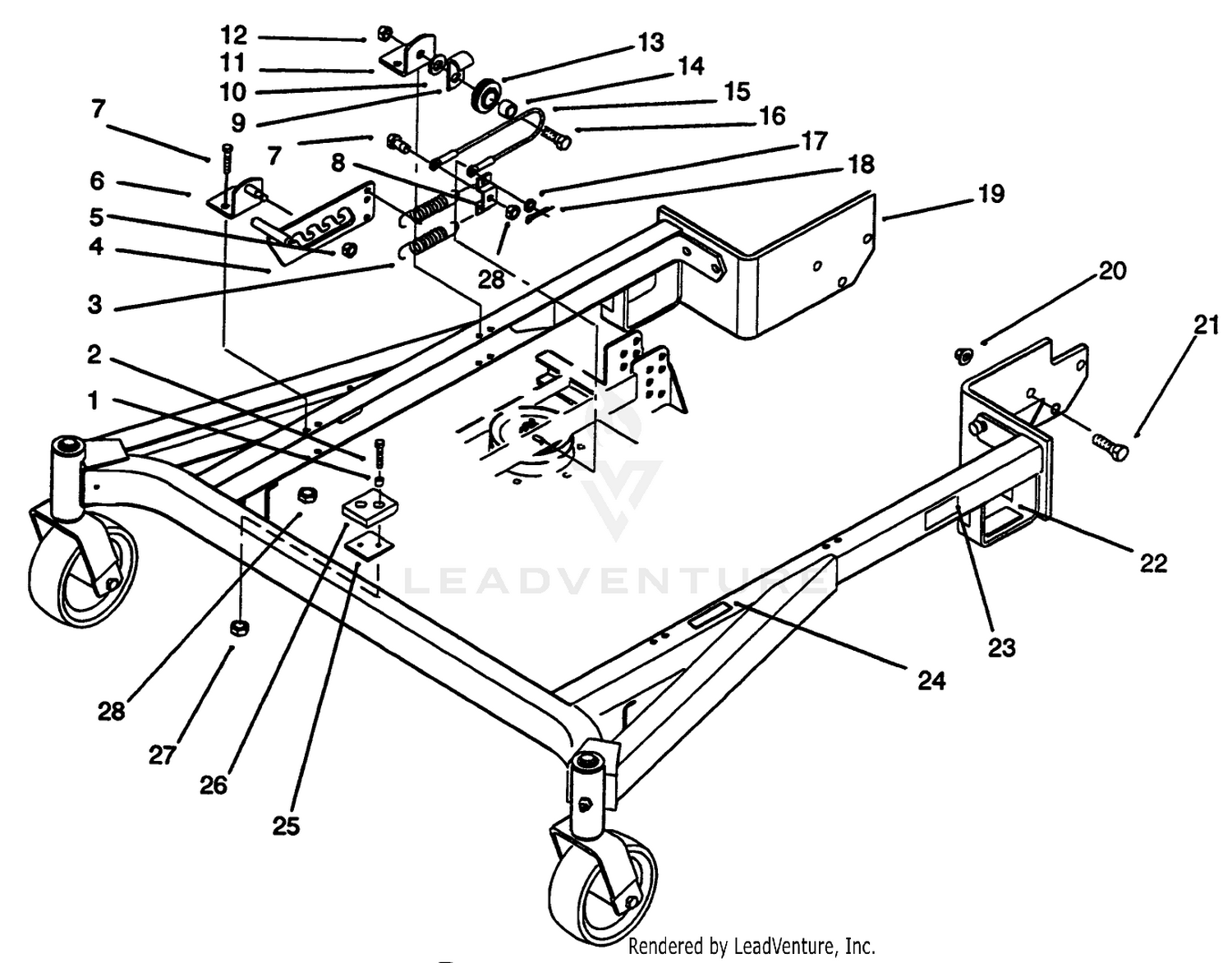

Carrier Frame Assembly (Incl. Ref. #23, 24) Price: Call Us |
| 20 |
32128-23 |
NUT-HF Price: $1.51 |
| 21 |
3234-6 |
SCREW-HHF Price: $3.19 |
| 22 |
92-5416 |
REAR RUBBER PAD Price: Call Us |
| 23 |
68-8360 |
DECAL-HOC, LH Price: $21.99 |
| 24 |
55-4300 |
DECAL-WARNING Price: $13.99 |
| 25 |
92-5418 |
CUSHING SHIM Price: $15.06 |
| 26 |
92-5417 |
CUSHION-RUBBER Price: Call Us |
| 27 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
