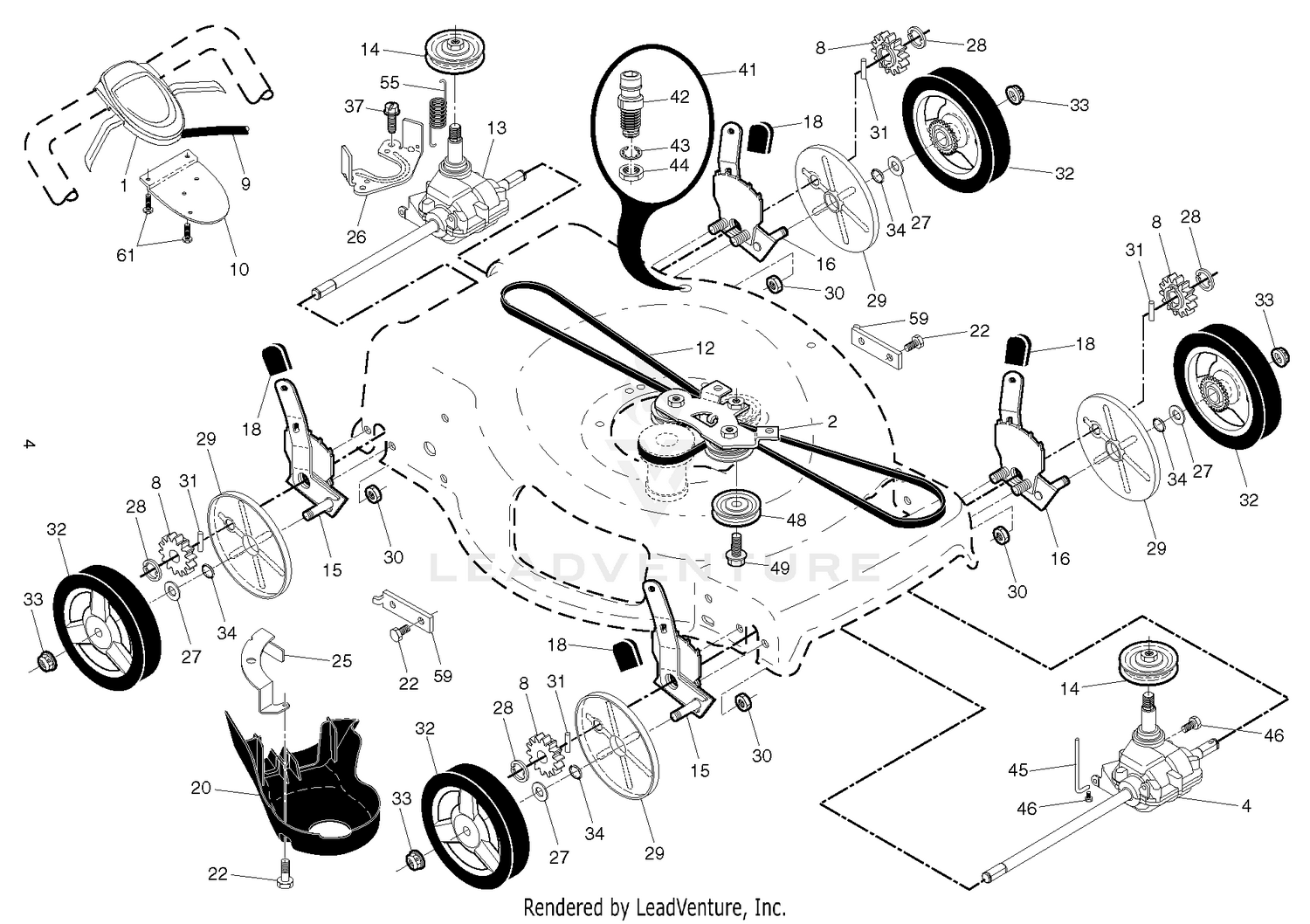

| Ref | Part Number | Description |
|---|
| 1 |
589818808 |
CONTROL.DR.AW2.22+.BLK.GEN This part replaces 581950505. Price: $39.99 |
| 1 |
94-3131 |
SCREW-HH Price: $1.06 |
| 2 |
586072802 |
BRACKET.ASM.AWD.BZP.BLACK Price: $6.99 |
| 2 |
94-3208 |
STUB-OUTLET Price: $184.75 |
| 3 |
98-9970 |
DISCONTINUED Price: Call Us |
| 4 |
589599201 |
TRANSMISSION.22+.AWD.FRT This part replaces 585305701. Price: $119.99 |
| 4 |
94-3207 |
RING Price: $10.14 |
| 5 |
94-3214 |
CAPSCREW Price: $4.42 |
| 6 |
94-3211 |
TEMP SENDING UNIT BLUE Price: $82.56 |
| 7 |
94-3212 |
PLUG Price: $10.14 |
| 8 |
532404835 |
PINIION.14.TOOTH.RGD Price: $5.99 |
| 8 |
94-3213 |
CAPSCREW Price: $30.93 |
| 9 |
581952101 |
CABLE.DRIVE.RWD.WALK. Price: $29.99 |
| 9 |
76-5410 |
COLLECTOR GASKET This part replaces 94-3206. Price: $7.82 |
| 10 |
532432790 |
BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $3.99 |
| 10 |
94-3210 |
GASKET Price: $11.64 |
| 12 |
580364610 |
BELT V3L 64.10 CLUTCHING COVER This part replaces 580364603. Price: $14.99 |
| 13 |
581975506 |
TRANMISSION.ASM.22+AWD.REAR This part replaces 581975504. Price: $79.99 |
| 14 |
586963002 |
PULLEY AWD/RGD, SCREW-ON AWD/R This part replaces 586038401. Price: $9.99 |
| 18 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 20 |
580806901 |
COVER.REAR.DRIVE.22+2013 Price: $19.99 |
| 22 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 25 |
532426065 |
BRACKET.DRIVE.COVER.RGD.BZP Price: $6.99 |
| 26 |
581152502 |
BRACKET.TRAN.BELTKEEPER.22+RGD Price: $5.99 |
| 27 |
532067725 |
WASHER FLUT Price: $5.99 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK Price: $5.99 |
| 30 |
596041001 |
Hardware This part replaces 532438130. Price: $2.99 |
| 31 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 32 |
580365301 |
WHEEL.8".AWD.3SP.EXT.DR.GREY Price: $37.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 34 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 37 |
532163409 |
SCREW Price: $3.99 |
| 41 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK Price: $14.99 |
| 42 |
532438489 |
KIT.WASH-OUT.PORT.ZINC.WALK This part replaces 532434994. Price: $14.99 |
| 43 |
532415585 |
WASHER.LOCK.INTERNAL.TOOTH Price: $2.99 |
| 44 |
532415586 |
LOCKNUT.HEX.WITH.O-RING Price: $4.99 |
| 45 |
581241301 |
BRACKET.AWD.FRONT.BELT.KEEPER Price: $3.99 |
| 46 |
584299401 |
SCREW.HI-LO. 5/16 X 1.00 Price: $2.99 |
| 48 |
587973001 |
PULLEY.ASM.22+ AWD This part replaces 581904001. Price: $19.99 |
| 49 |
581334501 |
SCREW Price: $11.99 |
| 59 |
532442113 |
BRACKET.SUPPORT.22+RWGD.BZP Price: $3.99 |
| 61 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
