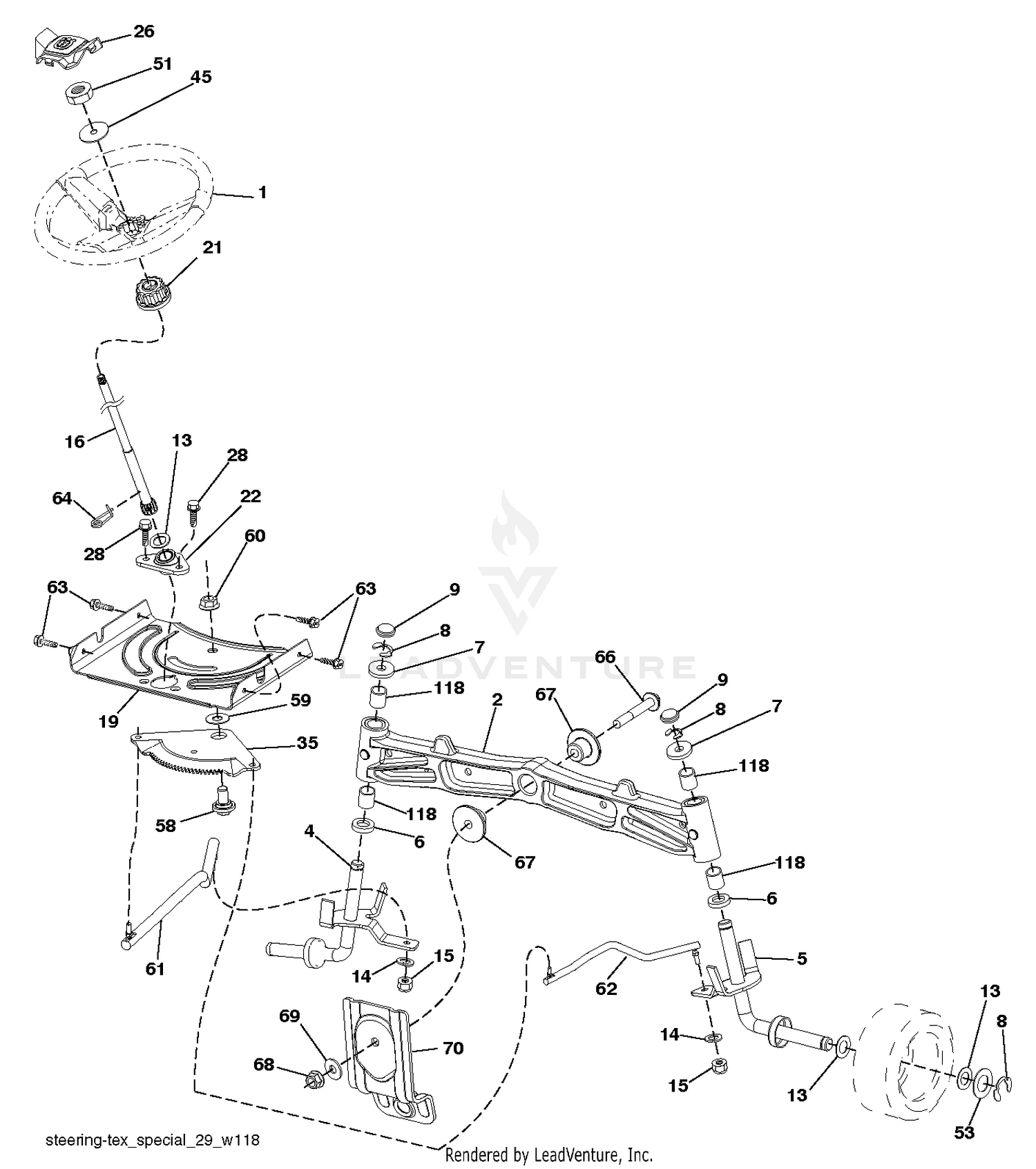

| Ref | Part Number | Description |
|---|
| 1 |
253-144 |
SEAL-GREASE Price: $20.77 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 2 |
254-103 |
CONE-BEARING, INNER Price: $38.71 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 3 |
254-104 |
CUP-BEARING, INNER Price: $17.18 |
| 4 |
115-4944 |
WHEEL HUB ASM This part replaces 77-0650. Price: $281.80 |
| 4 |
538690901 |
SPINDLE.WLDMT.LH.16IN.CE BLK.X This part replaces 532403172. Price: $32.99 |
| 5 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 5 |
583282701 |
SPINDLE.ASM.RH.16"TIRE.CE This part replaces 532403173. Price: $109.99 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
56-7960 |
TIRE (11-15) 8-PLY Price: $201.63 |
| 7 |
217-109 |
WHEEL Price: $694.71 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
3272-19 |
PIN-COTTER Price: $0.31 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
217-111 |
CAP-HUB Price: $22.31 |
| 11 |
32136-1 |
NUT-SLOTTED Price: $3.46 |
| 12 |
47-2540 |
WASHER-FLAT Price: $4.14 |
| 13 |
254-62 |
BEARING-ROLLER, CONE Price: $12.61 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
217-103 |
BOLT-WHEEL Price: $2.51 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 532194746. Price: $34.99 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532420537. Price: $14.99 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 51 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 118 |
532406013 |
BUSHING, AXLE CAST Price: $4.99 |
