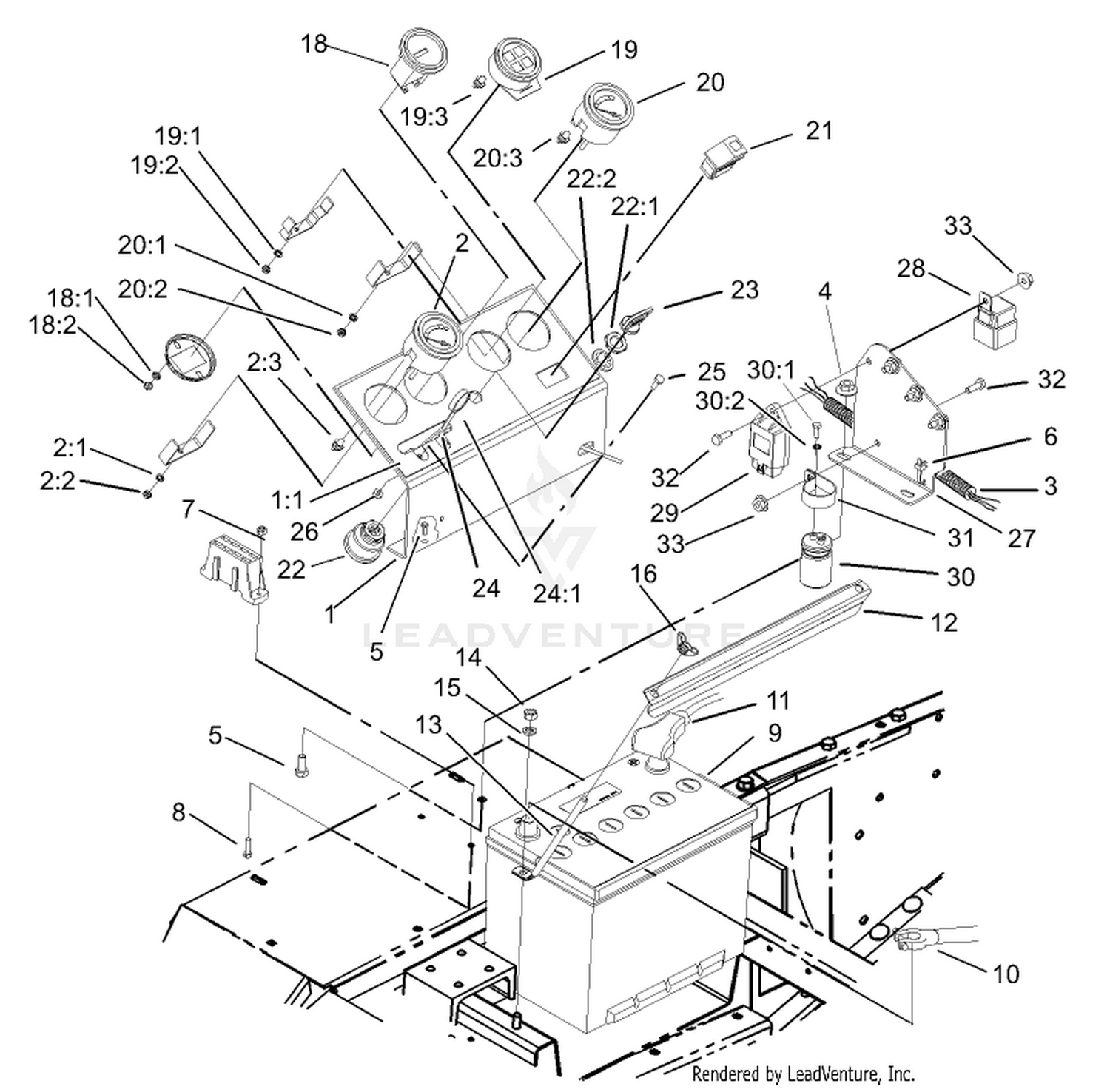

| Ref | Part Number | Description |
|---|
| 1 |
105-2917 |
INSTRUMENT PANEL ASM Price: $119.85 |
| 2 |
98-9339 |
GAUGE-FUEL Price: $115.28 |
| 3 |
104-4065 |
HARNESS-WIRE, MAIN Price: $714.83 |
| 4 |
32128-30 |
NUT Price: $2.69 |
| 5 |
322-3 |
SCREW-HH Price: $0.79 |
| 6 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 7 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 8 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 9 |
106-5190 |
BATTERY Price: $170.85 |
| 10 |
104-9497 |
CABLE-BATTERY, NEGATIVE Price: $75.01 |
| 11 |
95-8853 |
CABLE-BATTERY, POSITIVE Price: $95.21 |
| 12 |
24-6420-03 |
HOLDDOWN-BATTERY Price: $55.90 |
| 13 |
24-6390 |
STUD-HOLDDOWN, BATTERY Price: $19.83 |
| 14 |
3217-6 |
NUT-HEX Price: $1.19 |
| 15 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 16 |
32103-2 |
NUT-WING Price: $0.68 |
| 18 |
120-2244 |
HOURMETER This part replaces 66-2950. Price: $48.06 |
| 19 |
112-6561 |
WARNING LIGHT ASM This part replaces 98-9306. Price: $121.84 |
| 20 |
98-9308 |
GAUGE-TEMPERATURE Price: $112.90 |
| 21 |
100-8072 |
SWITCH Price: $94.07 |
| 22 |
104-2541 |
SWITCH ASM Price: $36.70 |
| 23 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 24 |
43-3990 |
CONTROL-THROTTLE Price: $49.39 |
| 25 |
3290-134 |
SCREW Price: $0.27 |
| 26 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 27 |
105-0002-01 |
BRACKET-RELAY Price: $34.06 |
| 28 |
70-1480 |
RELAY Price: $105.19 |
| 29 |
98-7611 |
CONTROLLER-GLOW This part replaces 107-9097. Price: $316.53 |
| 30 |
37-2690 |
CAPACITOR Price: $155.98 |
| 31 |
2412-74 |
R-CLAMP Price: $2.37 |
| 32 |
321-4 |
SCREW-HH Price: $0.99 |
