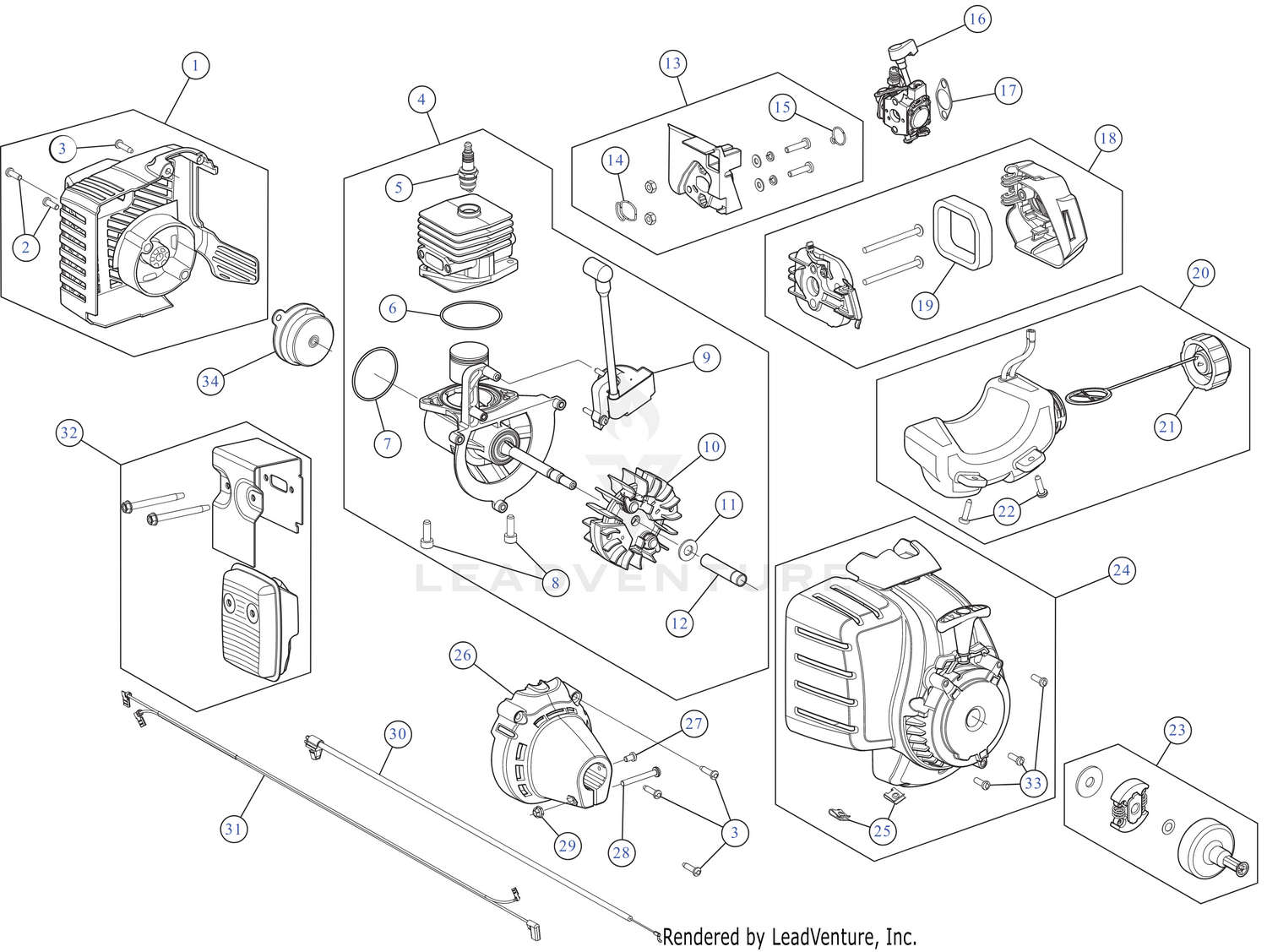

| Ref | Part Number | Description |
|---|
| 2 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 3 |
791-181345 |
SCREW, #8-16X.750 PH Price: $3.75 |
| 5 |
753-06847 |
SPARK PLUG Price: $6.35 |
| 6 |
753-06275 |
O-RING Price: $2.52 |
| 7 |
753-06174 |
O-RING Price: $2.54 |
| 8 |
791-182723 |
SCREW, 1/4-20 x .75 Price: $4.02 |
| 9 |
753-06763 |
MODULE 27CC DIG Price: $24.18 |
| 10 |
753-06175 |
FLYWHEEL ASSEMBLY Price: $16.80 |
| 11 |
753-06247 |
BELL WASHER Price: $3.05 |
| 12 |
753-06218 |
SPACER Price: $2.57 |
| 14 |
753-06184 |
O-RING Price: $2.93 |
| 15 |
753-06185 |
O-RING Price: $2.93 |
| 16 |
753-06288 |
CARBURETOR Price: $32.65 |
| 17 |
753-06253 |
GASKET CARB Price: $2.98 |
| 19 |
753-06417 |
AIR FLITER Price: $2.30 |
| 21 |
791-182612 |
FUEL CAP ASSEMBLY Price: $17.64 |
| 22 |
791-181930 |
SCREW:10-6 x .75 Price: $5.95 |
| 23 |
753-05860 |
SMALL CLUTCH ASSEMBLY W/SMALL DRUM Price: $22.50 |
| 25 |
791-182366 |
NUT, TINNERMAN U-T Price: $4.90 |
| 27 |
791-182519 |
SCREW, 8-32 x .312 P Price: $4.37 |
| 28 |
9689A |
Clamp Screw This part replaces 753-04003. Price: $9.81 |
| 29 |
712-0161 |
HEX NUT Price: $4.02 |
| 30 |
746P04754 |
THROTTLE CABLE This part replaces 746-05231. Price: $6.32 |
| 31 |
753-06583 |
LEAD WIRES Not Available Price: |
| 32 |
753-08745 |
Muffler Assembly This part replaces 753-06418. Price: $23.25 |
| 33 |
1964 |
SCREW:10-32X.5 This part replaces 791-181862. Price: $3.89 |
