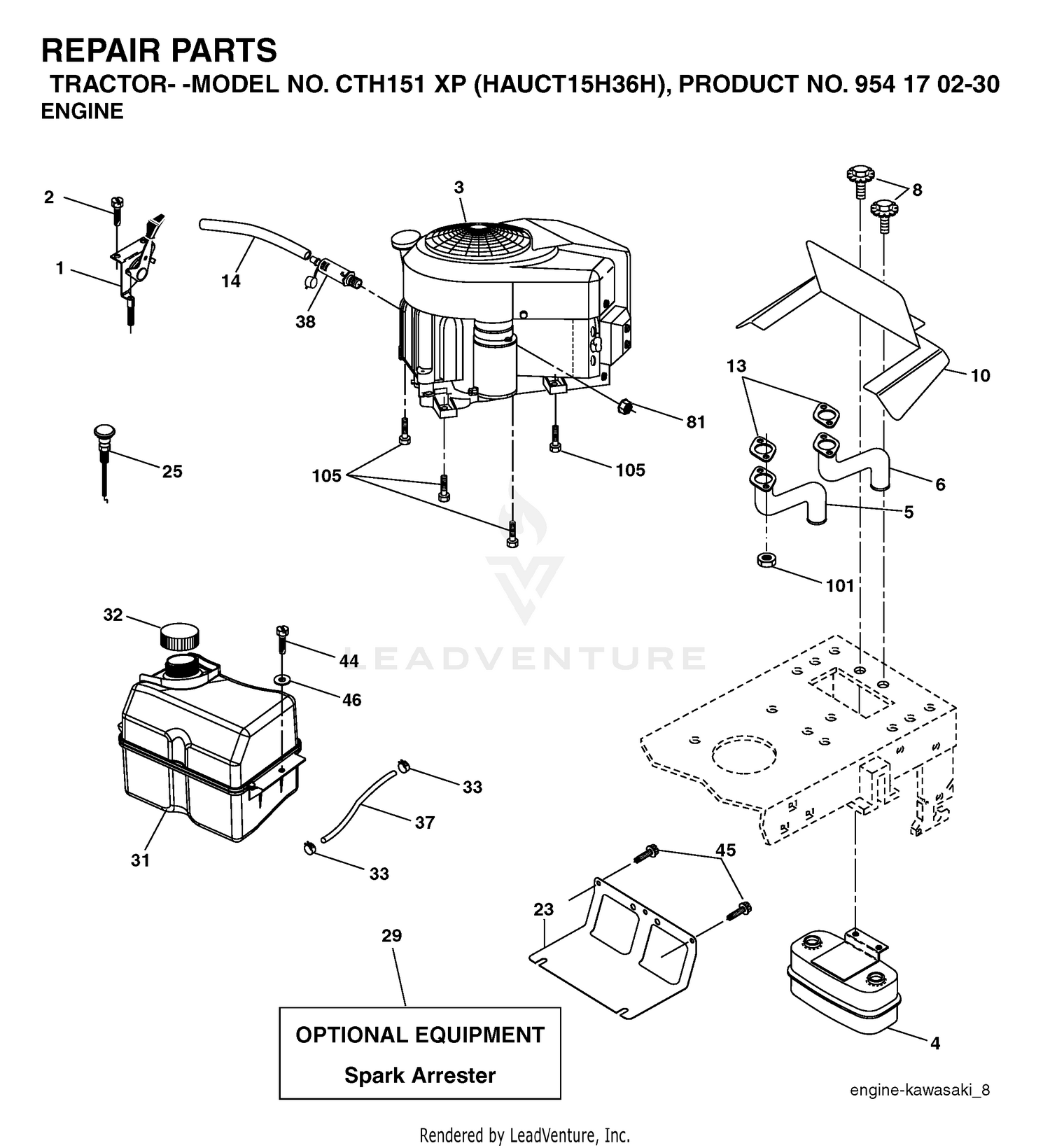

| Ref | Part Number | Description |
|---|
| 1 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 1 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 2 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 2 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532171875. Price: $14.99 |
| 3 |
13-6520 |
SEAL Price: $9.22 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 4 |
70-2420 |
DISCONTINUED-SEE SVC BULLETIN Price: Call Us |
| 5 |
13-6610 |
DISCONTINUED This part replaces 13-6490. Price: Call Us |
| 5 |
532181444 |
EXHAUST TUBE LH KAWI Price: $54.99 |
| 6 |
13-6610 |
DISCONTINUED Price: Call Us |
| 6 |
532181442 |
EXHAUST TUBE RH KAWI Price: $59.99 |
| 7 |
13-6600 |
DISCONTINUED Price: Call Us |
| 8 |
13-6590 |
GASKET Price: $17.53 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
254-57 |
BEARING CUP F/W Price: $17.38 |
| 10 |
254-58 |
BEARING CONE Price: $48.61 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 11 |
70-2440 |
THRUST COLLAR Price: $63.13 |
| 12 |
93-4430 |
DISCONTINUED Price: Call Us |
| 13 |
13-6650 |
DISCONTINUED Price: Call Us |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
70-2450 |
DISCONTINUED Price: Call Us |
| 16 |
70-2380 |
DISCONTINUED Price: Call Us |
| 17 |
70-2360 |
BLANK CAP Price: $157.29 |
| 18 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 19 |
254-62 |
BEARING-ROLLER, CONE Price: $12.61 |
| 20 |
13-6540 |
SHIM Price: $4.22 |
| 21 |
13-6630 |
SHIM Price: $9.29 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 23 |
70-2370 |
DISCONTINUED Price: Call Us |
| 24 |
70-2390 |
DISCONTINUED Price: Call Us |
| 25 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 25 |
70-2410 |
DISCONTINUED Price: Call Us |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532185534. Price: $44.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 101 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 105 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
