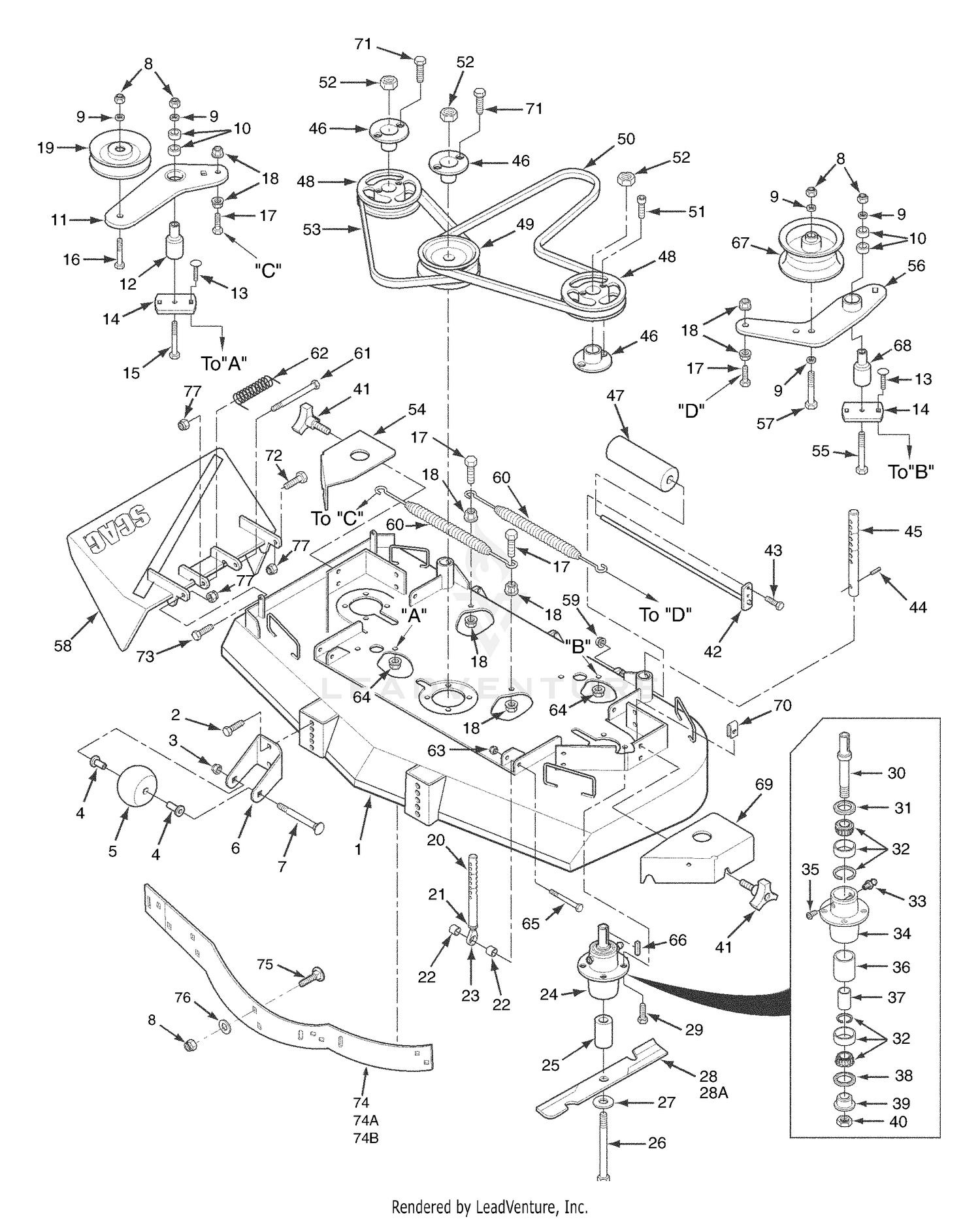

| Ref | Part Number | Description |
|---|
| 1 |
461654K |
CUTTER DECK W/ BAFFLES, SWMU-61A This part replaces 461503. Price: Call Us |
| 2 |
04017-27 |
Capscrew, 3/8-16 x 1" Serr. Flng. Price: Call Us |
| 3 |
04021-05 |
Lock Nut, 3/8-16 Center Lock Price: Call Us |
| 4 |
48100-15 |
Bushing, .376" ID Oilite Price: Call Us |
| 5 |
481632 |
Wheel, Anti-Scalp Price: Call Us |
| 6 |
422478 |
Bracket, Anti-Scalp Wheel Price: Call Us |
| 7 |
04003-26 |
Bolt, Carriage 3/8-16 x 4" Price: Call Us |
| 8 |
04021-09 |
Hex Nut, 3/8-16 Elastic Stop Price: Call Us |
| 9 |
04043-04 |
Flatwasher, 3/8" (.938 x .391 x .105) Price: Call Us |
| 10 |
48224 |
Ball Bearings Price: Call Us |
| 12 |
43503 |
Pivot, Idle - Short Price: Call Us |
| 13 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 14 |
422713 |
Base, Idler Pivot Price: Call Us |
| 15 |
04001-31 |
Capscrew, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 16 |
04001-45 |
Capscrew, Hex Head 3/8-16 x 2" Price: Call Us |
| 17 |
04001-136 |
Capscrew, Hex Head 3/8-16 x 1-1/2" Price: Call Us |
| 18 |
04019-04 |
Nut, 3/8-16 Serrated Flange Price: Call Us |
| 19 |
48181 |
Pulley, Idler Price: Call Us |
| 21 |
04020-25 |
Nut, 3/8-24 Jam Price: Call Us |
| 22 |
43512 |
Spacer, Deck Adjustment Pin Price: Call Us |
| 23 |
482586 |
Rod End, Male 3/8-24 RH Thread This part replaces 481539. Price: Call Us |
| 24 |
461663 |
Spindle Assembly This part replaces 46631. Price: Call Us |
| 25 |
43590 |
Spacer, Spindle Price: Call Us |
| 26 |
04001-41 |
Bolt,Hex Head 5/8-11 x 9-1/2" Price: Call Us |
| 27 |
04043-06 |
Flatwasher, 5/8 W Price: Call Us |
| 28 |
481708 |
Cutter Blade 21" Price: Call Us |
| 28A |
481712 |
Cutter Blade 21" Hi Lift Price: Call Us |
| 29 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" Price: Call Us |
| 30 |
43589 |
Spindle Shaft Price: Call Us |
| 31 |
481024 |
Seal, Cutter Spindle - Top Price: Call Us |
| 32 |
481022 |
Tapered Bearings (Two) Price: Call Us |
| 33 |
48114-04 |
Grease Fitting Price: Call Us |
| 34 |
43644 |
Spindle Housing This part replaces 43294. Price: Call Us |
| 35 |
48677 |
Relief Fitting, Cutter Spindle Price: Call Us |
| 36 |
43312 |
Spacer Outside Price: Call Us |
| 37 |
43296 |
Spacer, Inside Price: Call Us |
| 38 |
481025 |
Seal, Cutter Spindle - Bottom Price: Call Us |
| 39 |
43297 |
Spindle Bushing Price: Call Us |
| 40 |
481035 |
Nut, Spindle Price: Call Us |
| 41 |
481625-01 |
Wing Nut, 3/8-16 Price: Call Us |
| 42 |
45944 |
Roller Shaft (large frame) Price: Call Us |
| 43 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 44 |
04060-08 |
Pin, Slotted Spring 3/16 x 1-1/2" Price: Call Us |
| 45 |
43515 |
Pin, Deck Adjustment Rear Price: Call Us |
| 46 |
48926 |
Tapered Hub Price: Call Us |
| 47 |
48038 |
Guide, Roller Price: Call Us |
| 48 |
482744 |
Pulley, 5.75 OD Taper Bore This part replaces 48924. Price: Call Us |
| 49 |
48940 |
Pulley, 6.35 Double Groove Price: Call Us |
| 50 |
481923 |
Belt, Deck Drive Price: Call Us |
| 51 |
04015-14 |
Capscrew, Sckt. Hd. 1/4-20 x 1-3/8" Price: Call Us |
| 52 |
04020-09 |
Hex Nut, 5/8-11 Price: Call Us |
| 53 |
48265 |
Belt, Cutter Deck RH Price: Call Us |
| 54 |
422911 |
Belt Cover, RH Price: Call Us |
| 55 |
04001-62 |
Capscrew, HH 3/8-16 x 3-1/4" Price: Call Us |
| 57 |
04001-51 |
Capscrew, Hex Head 3/8-16 x 3-3/4" Price: Call Us |
| 58 |
461296 |
Discharge Chute Price: Call Us |
| 59 |
04019-03 |
Nut, 5/16-18 Serrated Flange Price: Call Us |
| 60 |
483704 |
Spring, Cutter Deck This part replaces 481597. Price: Call Us |
| 61 |
04001-154 |
Bolt, Hex Head 5/16-18 x 4-1/4" Price: Call Us |
| 62 |
482245 |
Spring, Chute Return Price: Call Us |
| 63 |
04021-09 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
| 64 |
04019-03 |
Nut, 5/16-18 Serrated Flange Price: Call Us |
| 65 |
04001-31 |
Bolt, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 66 |
04063-08 |
Key, 1/4" x 1/4" x 2" Price: Call Us |
| 67 |
483210 |
Pulley, 5" Idler This part replaces 481962. Price: Call Us |
| 68 |
43510 |
Pivot, Idler - Long Price: Call Us |
| 69 |
422910 |
Belt Cover LH Price: Call Us |
| 70 |
04110-03 |
U-Nut, 3/8-16 Price: Call Us |
| 71 |
04001-14 |
Bolt, Hex Head 1/4-20 x 1" Price: Call Us |
| 72 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" Price: Call Us |
| 73 |
04001-12 |
Bolt, Hex Head 5/16-18 x 1-3/4" Price: Call Us |
| 74B |
451509 |
Baffle Weldment 61A Price: Call Us |
| 75 |
04003-23 |
Bolt, Carriage 3/8-16 x 1" Price: Call Us |
| 76 |
04041-07 |
Flatwasher, 3/8" (.391 x .938 x .105) Price: Call Us |
