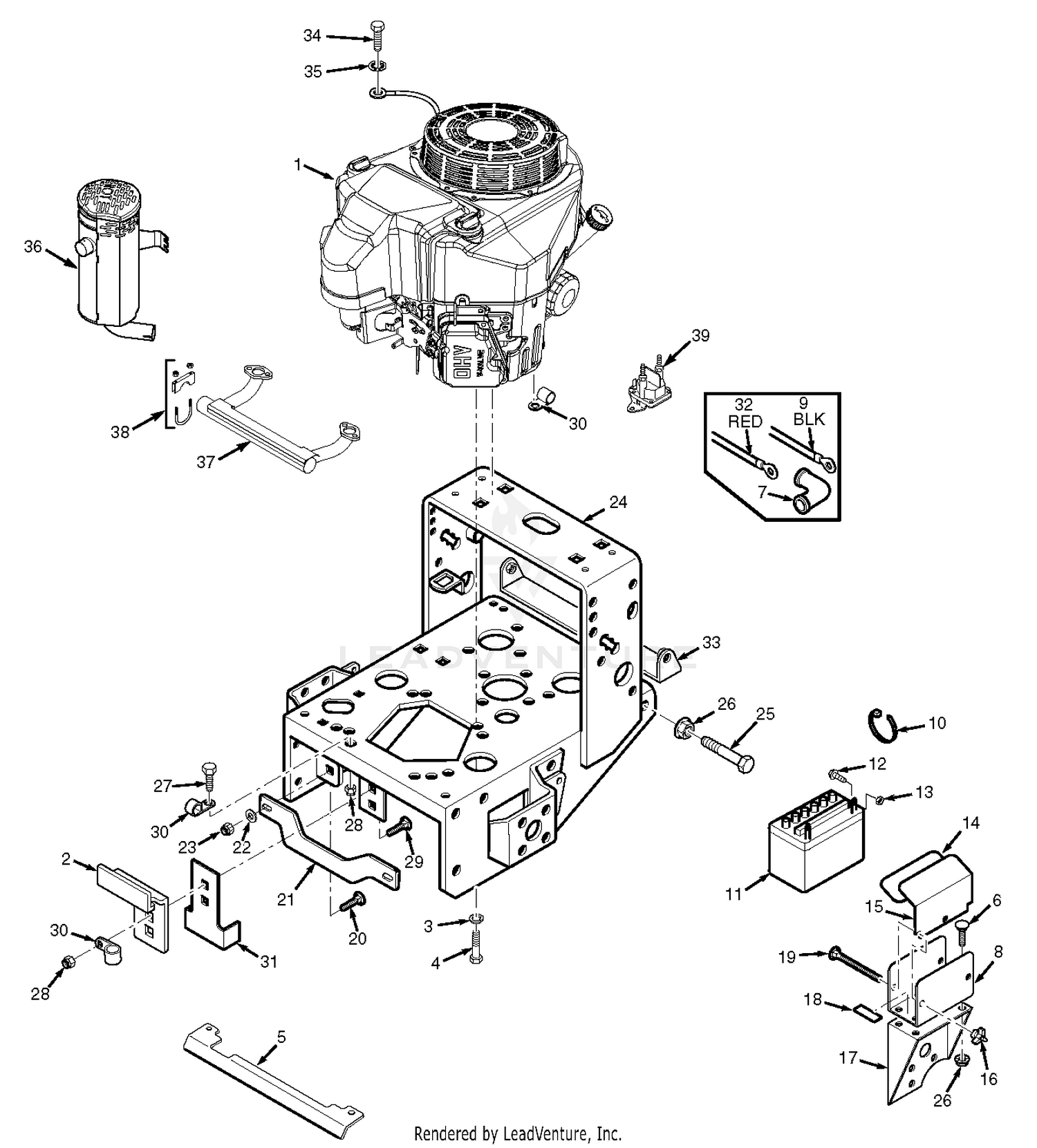

| Ref | Part Number | Description |
|---|
| 1 |
485017 |
Engine, Kawasaki FS22 (FS651V) Price: Call Us |
| 2 |
424620 |
Plate, Clutch Bracket Price: Call Us |
| 3 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 4 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 5 |
424730 |
Heatshield, 20" Large Frame Price: Call Us |
| 6 |
04003-12 |
Carriage Bolt, 5/16-18 x .75" Price: Call Us |
| 7 |
48126 |
Rubber Boot Price: Call Us |
| 8 |
423308 |
Battery Box Price: Call Us |
| 9 |
48029-14 |
Battery Cable, 31.5" Black Price: Call Us |
| 10 |
48028-05 |
Cable Tie Price: Call Us |
| 12 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 13 |
04020-02 |
Nut, 1/4-20 Price: Call Us |
| 14 |
48099 |
Pad Price: Call Us |
| 15 |
42392 |
Battery Cover Price: Call Us |
| 16 |
04029-01 |
Wing Nut, 1/4-20 Price: Call Us |
| 17 |
423746 |
Battery Support Price: Call Us |
| 18 |
48661 |
Pad, Rubber Price: Call Us |
| 19 |
04003-39 |
Bolt, Carriage 1/4-20 x 6" This part replaces 04003-01. Price: Call Us |
| 20 |
04003-11 |
Carriage Bolt, 3/8-16 X 1-1/4" Price: Call Us |
| 21 |
424009 |
Brace, 20" Large Frame Price: Call Us |
| 22 |
04043-04 |
Flat Washer .391 x .938 x .105 Price: Call Us |
| 23 |
04021-09 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
| 24 |
462288 |
Engine Deck, 20" Wide, w/decals Price: Call Us |
| 25 |
04001-17 |
Bolt, 5/16-18 x 2" Hex Head Price: Call Us |
| 26 |
04019-03 |
Nut, 5/16-18 Serr. Flange Price: Call Us |
| 27 |
04001-08 |
Hex Head Bolt, 5/16-18 x .75" Price: Call Us |
| 28 |
04021-10 |
Nut, 5/16-18 Elastic Stop Price: Call Us |
| 29 |
04003-04 |
Carriage Bolt, 5/16-18 x 1" Price: Call Us |
| 30 |
48030-09 |
Clamp Price: Call Us |
| 31 |
421370 |
Clutch Bracket Price: Call Us |
| 32 |
48029-06 |
Battery Cable, 18" Red Price: Call Us |
| 32 |
48029-13 |
Battery Cable, 25" Red Price: Call Us |
| 33 |
45419 |
Pulley Guard, 20" Frame Price: Call Us |
| 34 |
04002-06 |
Bolt, Hex Head M8-1.25 x 16 Price: Call Us |
| 35 |
04031-03 |
Lockwasher, 5/16" Ext. Tooth Price: Call Us |
| 36 |
484326 |
Muffler Price: Call Us |
| 37 |
484327 |
Exhaust Manifold Price: Call Us |
| 38 |
481259 |
Clamp, Muffler 1-1/4" Dia. Price: Call Us |
