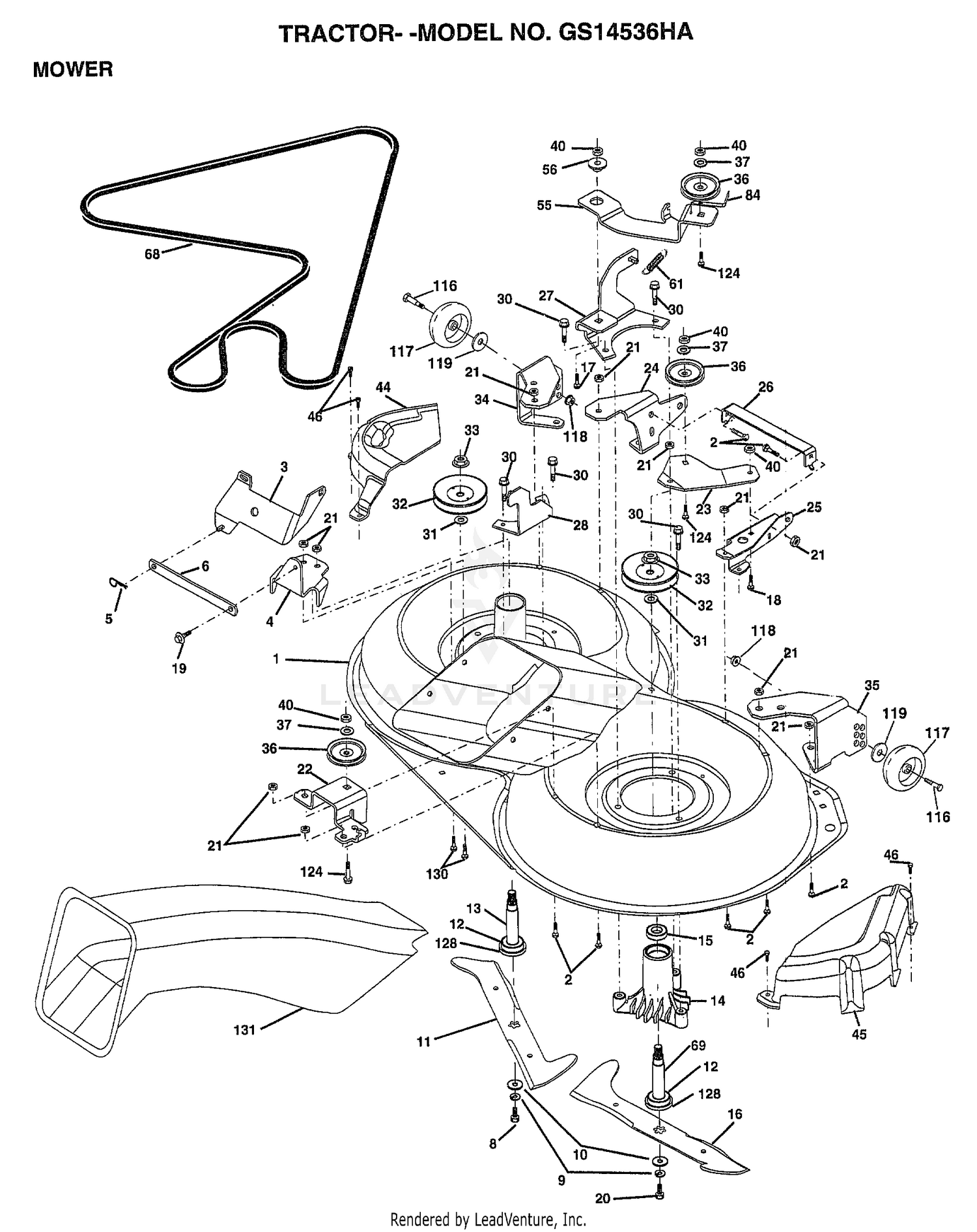

| Ref | Part Number | Description |
|---|
| 1 |
165552 |
HOUSING.ASM.MOWER Price: Call Us |
| 1 |
62-5550 |
DECAL Price: $9.32 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 2 |
93-7996-01 |
COVER-TOWER Price: $64.83 |
| 3 |
106-5950 |
RH FENDER ASM Price: $661.25 |
| 3 |
165569 |
BRKT.ASM.S-BAR.CHASSIS Price: Call Us |
| 4 |
165558 |
BRKT.BAR.SWAY.DECK Price: Call Us |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
106-5951 |
LH FENDER ASM Price: $625.15 |
| 6 |
165557 |
BAR.SWAY.92.CRD Price: Call Us |
| 7 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 8 |
107-2385 |
FRAME ASM Price: $4,941.32 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 11 |
165560 |
BLADE.3-1.LH.92.CRD Price: Call Us |
| 11 |
98-4572 |
BRACKET-CLAMP, HOSE Price: $33.62 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 13 |
75-1390-01 |
COVER-ACCESS, FRONT Price: $78.27 |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
75-1410-01 |
PLATE-ACCESS, FLOOR Price: $142.43 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
75-6840 |
KNOB-KNURLED Price: $16.22 |
| 16 |
165561 |
BLADE.3-1.RH.CRD.92 Price: Call Us |
| 16 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 17 |
72140610 |
BOLT.3/8-14X1.25 Price: Call Us |
| 17 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 18 |
72110608 |
BOLT D Price: Call Us |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 19 |
94-1410 |
HOLDER-CAN, BEVERAGE Price: $5.81 |
| 20 |
165484 |
BOLT.3/8-24X1.25 Price: Call Us |
| 21 |
104-0026 |
TOOLBOX Price: $160.81 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
104-1476 |
RING-RUBBER Price: $18.49 |
| 22 |
165243 |
BRKT.IDLER.SPRT.CRD Price: Call Us |
| 23 |
75-0630 |
TREAD-FOOT, CENTER Price: $56.24 |
| 24 |
104-1496 |
HINGE-PIN Price: $13.22 |
| 24 |
165242 |
BRKT.SUSP.LF.92.CRD Price: Call Us |
| 25 |
104-1497 |
HINGE-RECEIVER Price: $13.90 |
| 25 |
165244 |
BRKT.SUSP.RF.92.CRD Price: Call Us |
| 26 |
165237 |
BRACE.SUPT.SUSP.FRT.CRD Price: Call Us |
| 27 |
165568 |
BRKT.ASM.SUSP.RR.92.CRD Price: Call Us |
| 27 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 28 |
104-9294 |
DECAL-WARNING Price: $44.98 |
| 28 |
104-9295 |
DECAL-WARNING, CE Price: $47.20 |
| 28 |
165567 |
BRKT.ASM.SUSP.LR.92.CRD Price: Call Us |
| 29 |
104-1489-03 |
COVER-TOOLBOX Price: $87.10 |
| 30 |
110-9721 |
DECAL-INSTRUCTIONS, SERVICE This part replaces 107-8841. Price: $25.78 |
| 31 |
129963 |
WASHER Price: Call Us |
| 31 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 32 |
153531 |
PULLEY.MAND.36/46 Price: Call Us |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
94-5626 |
FLEXIBLE DRAW LATCH ASM Price: $42.59 |
| 34 |
165239 |
BRKT.GUAGE.WHL.LF.92.CRD Price: Call Us |
| 35 |
165238 |
BRKT.GUAGE.WHL.RF.92.CRD Price: Call Us |
| 36 |
146763 |
PULLEY.IDLER.4.25 Price: Call Us |
| 37 |
19131316 |
WASHER Price: Call Us |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 44 |
165724 |
COVER.MANDREL.LH.92.CRD Price: Call Us |
| 45 |
165556 |
COVER.MANDREL.RH.92.CRD Price: Call Us |
| 46 |
137729 |
SCREW.1/4-20X5/8 Price: Call Us |
| 55 |
165445 |
ARM.IDLER.92.CRD Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 61 |
165945 |
SPRING.TENSION.BELT Price: Call Us |
| 68 |
165555 |
HEX-BELT.92.MWR.105AA Price: Call Us |
| 69 |
165482 |
SHAFT.ASM.W/LWR.BRG.RH.THD Price: Call Us |
| 116 |
137644 |
BOLT.SHOULDER Price: Call Us |
| 117 |
133957 |
WHEEL GAGE DONUT Price: Call Us |
| 118 |
73930600 |
LOCKNUT Price: Call Us |
| 119 |
19121414 |
WASHER Price: Call Us |
| 124 |
72110612 |
BOLT.3/8-16X1.50 Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 130 |
72110506 |
SUB= 72270506 Price: Call Us |
| 131 |
165661 |
CHUTE.BAGGER.CRD Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
| 165579 |
MANDREL.ASM.CRD.LH.THREADS |
Price: Call Us 165579 |
