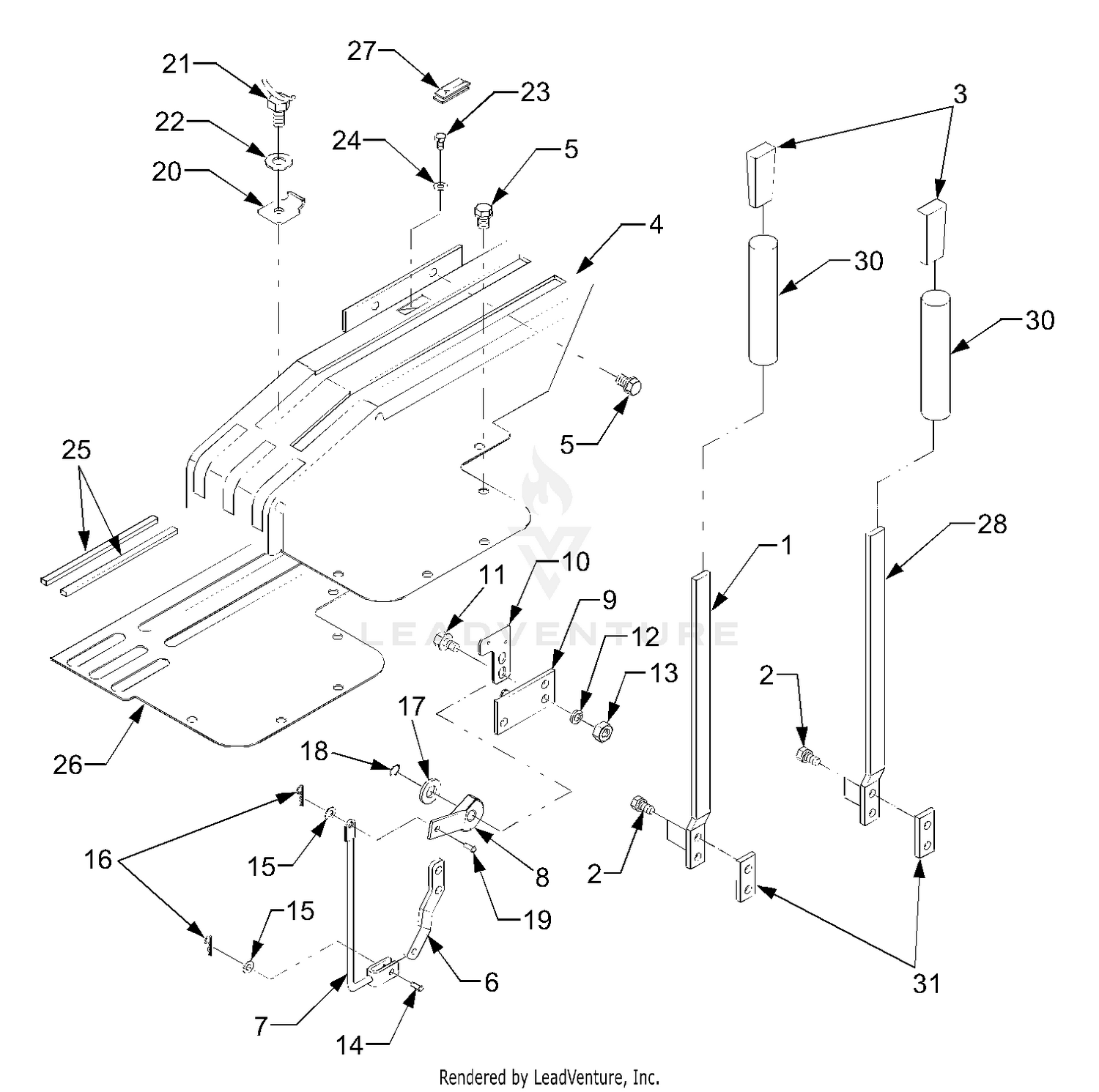

| Ref | Part Number | Description |
|---|
| 1 |
DD-T2610-65414 |
LEVER-DRAFT CONTRO Not Available Price: |
| 2 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 2 |
DD-01123-50816 |
HEX BOLT Not Available Price: |
| 3 |
10-6821 |
BRAKE DRUM ASM Price: $170.90 |
| 3 |
DD-T4260-24461 |
GRIP-HI LOW SHIFT Not Available Price: |
| 4 |
104-7705 |
BRAKE ASM Price: $175.69 |
| 4 |
DDT261065454YW |
GUIDE-HYD LEVER Not Available Price: |
| 5 |
325-11 |
SCREW-HH Price: $1.93 |
| 5 |
DD-01754-50816 |
HEX FLANGE BOLT Not Available Price: |
| 6 |
147-3595 |
BRACKET-BRAKE This part replaces 84-2000-03. Price: $8.08 |
| 6 |
DD-T4680-65351 |
LEVER-SWITCH CONTR Not Available Price: |
| 7 |
340-14 |
FITTING-HYD, 45 DEG Price: $42.29 |
| 7 |
DD-T2630-65371 |
ROD-SWITCH CONTROL Not Available Price: |
| 8 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 8 |
DD-T4681-65361 |
LEVER-MICRO SWITCH Not Available Price: |
| 9 |
105-0433-01 |
CHANNEL-STEP, RH Price: $65.59 |
| 9 |
DD-T4681-65511 |
PLATE-MTG BRACKET Not Available Price: |
| 10 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 10 |
DD-T4681-65382 |
BRACKET-SWITCH MOUNTING Not Available Price: |
| 11 |
10090400 |
SUB= 10040400 Price: Call Us |
| 11 |
DD-01754-50820 |
HEX FLANGE BOLT Not Available Price: |
| 12 |
73350400 |
NUT Price: Call Us |
| 12 |
DD-04512-50080 |
LOCK WASHER Not Available Price: |
| 13 |
74780408 |
BOLT Price: Call Us |
| 13 |
DD-02114-50080 |
HEX NUT Not Available Price: |
| 14 |
73510400 |
NUT Price: Call Us |
| 14 |
83-1700 |
BUSHING-FLANGE Price: $7.80 |
| 14 |
DD-05122-50618 |
CLEVIS PIN Not Available Price: |
| 15 |
93-2096 |
LEVER-BRAKE Price: $89.45 |
| 15 |
DD-04013-50060 |
FLAT WASHER Not Available Price: |
| 16 |
11050400 |
LOCKWASHER Price: Call Us |
| 16 |
92-9199 |
MOTOR-WHEEL, HYD Price: $923.71 |
| 16 |
DD-05525-50600 |
HAIR PIN Not Available Price: |
| 17 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 17 |
DD-04013-50100 |
FLAT WASHER Not Available Price: |
| 18 |
321-5 |
SCREW-HH Price: $0.22 |
| 18 |
DD-04612-00100 |
SNAP RING Not Available Price: |
| 19 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 19 |
DD-05122-50610 |
CLEVIS PIN Not Available Price: |
| 20 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 20 |
DD-T4520-36911 |
STOP-CONTROL LEVER Not Available Price: |
| 21 |
DD-01811-50815 |
WING BOLT Not Available Price: |
| 22 |
93-2509 |
CLAMP-TUBE Price: $14.32 |
| 22 |
DD-04015-50080 |
FLAT WASHER Not Available Price: |
| 23 |
105-8282-01 |
SHIELD-SIDE Price: $77.28 |
| 23 |
DD-03024-50512 |
SCREW Not Available Price: |
| 24 |
105-4674 |
DECAL-NOISE Price: $4.80 |
| 24 |
DD-04013-50050 |
FLAT WASHER Not Available Price: |
| 25 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 25 |
DD-T2610-65471 |
STRIP-RUBBER Not Available Price: |
| 26 |
105-5470 |
DECAL Price: $29.92 |
| 26 |
DDT261065482YW |
PLATE-HYD LEVER GU Not Available Price: |
| 27 |
325-5 |
SCREW-HH Price: $1.20 |
| 27 |
DD-T2610-65461 |
PLUG-HYD LEVER GUI Not Available Price: |
| 28 |
32128-52 |
NUT-LOCK, FLANGE Price: $1.69 |
| 28 |
DD-T2610-65421 |
LEVER-POSITON CONT Not Available Price: |
| 29 |
105-8263-01 |
BRACKET-ROPS Price: $37.76 |
| 30 |
340-73 |
FITTING-45, BULKHEAD UNION Price: $44.33 |
| 30 |
DD-T4340-24921 |
SLEEVE-CONTROL LEV Not Available Price: |
| 31 |
69-9010 |
WASHER Price: $1.83 |
| 32 |
240-3 |
GROMMET-RUBBER Price: $17.44 |
| 33 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 34 |
125-1984 |
SPACER This part replaces 69-9000. Price: $0.68 |
| 35 |
17021008 |
SCREW Price: Call Us |
| 35 |
321-11 |
SCREW-HH Price: $0.36 |
| 36 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 36 |
74641008 |
SUB= 71031008 Price: Call Us |
| 37 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 38 |
340-70 |
NUT-LOCK Price: $2.10 |
| 39 |
340-68 |
FITTING-TEE, BULKHEAD Price: $36.00 |
| 101539X |
SHEET |
INSTR LT Price: Call Us 101539X |
| 129985 |
MANUAL |
NLA Price: Call Us 129985 |
| 271971 |
MANUAL |
Price: Call Us 271971 |
