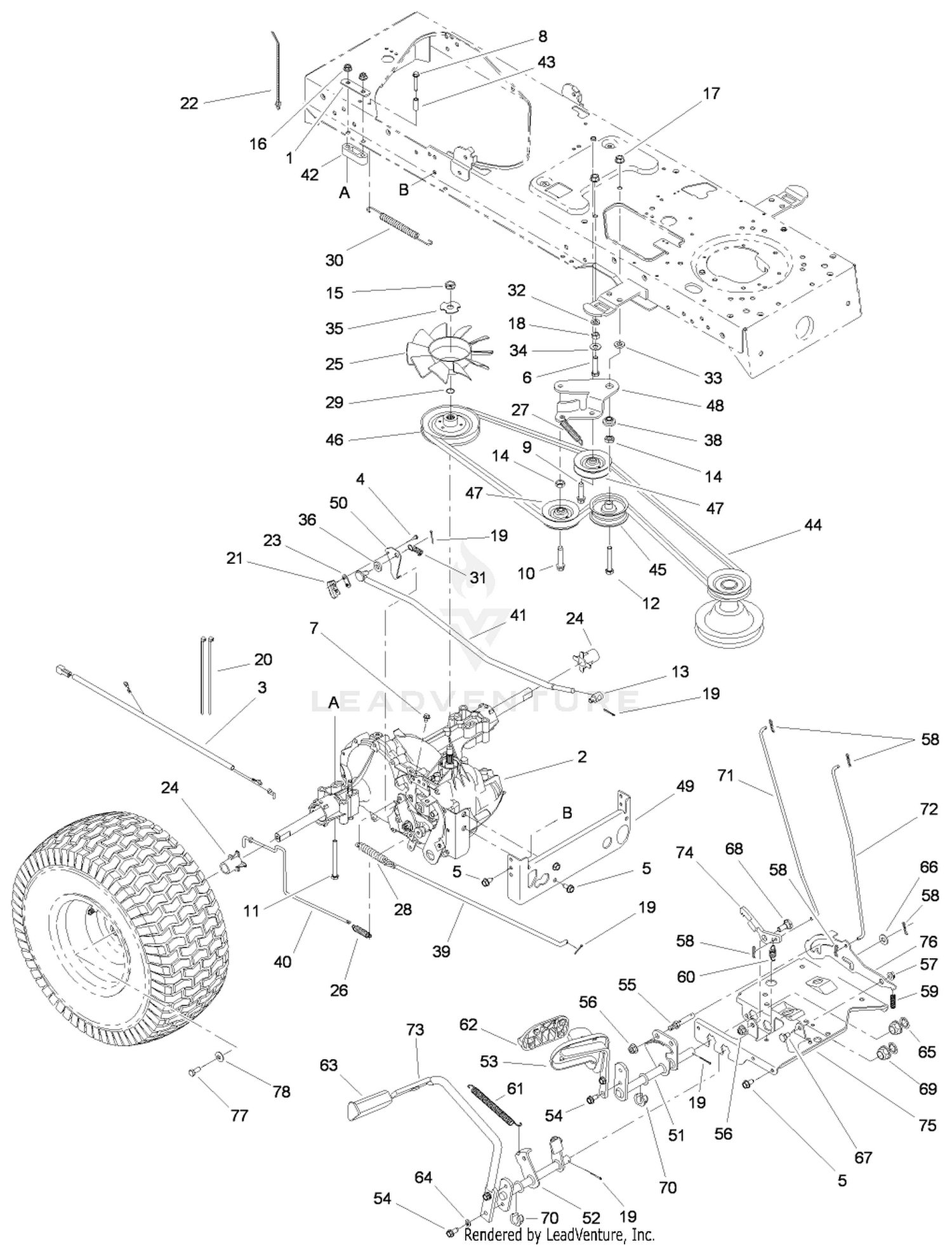

| Ref | Part Number | Description |
|---|
| 1 |
112-0628 |
BRACKET-MOUNTING, TRANSMISSION Price: $7.62 |
| 2 |
112-6019 |
HYDRO TRANSMISSION ASM Price: $2,300.99 |
| 3 |
112-6020 |
HARNESS ASM Price: $55.99 |
| 4 |
112-0626 |
SCREW-HWHTF Price: $5.99 |
| 5 |
112-6070 |
SCREW-TAP Price: $5.59 |
| 6 |
112-0578 |
SCREW-HH Price: $5.99 |
| 7 |
112-6022 |
SCREW-TAP Price: $5.69 |
| 8 |
112-0843 |
SCREW-HWH Price: $5.99 |
| 9 |
112-0469 |
SCREW-TAP Price: $5.91 |
| 10 |
112-6143 |
SCREW-TAP Price: $5.21 |
| 11 |
112-0667 |
SCREW-HH Price: $7.67 |
| 12 |
112-6009 |
SCREW-HH Price: $10.99 |
| 13 |
112-0908 |
FERRULE Price: $18.09 |
| 14 |
112-0493 |
NUT-JAM Price: $5.99 |
| 15 |
112-6144 |
NUT-JAM Price: $6.29 |
| 16 |
112-0650 |
NUT-LOCK, FLANGE Price: $5.89 |
| 17 |
112-0385 |
NUT-LOCK, FLANGE Price: $5.99 |
| 18 |
112-0668 |
NUT-LOCK, FLANGE Price: $5.79 |
| 19 |
112-0568 |
PIN-COTTER Price: $6.29 |
| 20 |
112-0527 |
TIE-CABLE Price: $5.79 |
| 21 |
112-0602 |
SWITCH-SPRING, SHORT Price: $11.99 |
| 22 |
112-0866 |
TIE-CABLE Price: $6.09 |
| 23 |
112-0625 |
PLATE-INSULATOR Price: $6.29 |
| 24 |
112-6025 |
SLEEVE Price: $5.59 |
| 25 |
112-6145 |
FAN Price: $26.99 |
| 26 |
112-6027 |
SPRING-EXTENSION Price: $9.99 |
| 27 |
112-0873 |
SPRING-EXTENSION Price: $16.99 |
| 28 |
112-0350 |
SPRING-EXTENSION Price: $18.99 |
| 29 |
112-6028 |
RING-WIRE Price: $5.99 |
| 30 |
112-6029 |
SPRING-EXTENSION Price: $14.99 |
| 31 |
112-0875 |
SPRING-EXTENSION Price: $13.99 |
| 32 |
112-0415 |
WASHER-LOCK Price: $4.00 |
| 33 |
112-0920 |
WASHER-FLAT Price: $5.99 |
| 34 |
112-0572 |
WASHER-FLAT Price: $3.52 |
| 35 |
112-6146 |
WASHER-LOCK Price: $6.59 |
| 36 |
112-0544 |
WASHER-FLAT Price: $5.99 |
| 38 |
112-0345 |
SPACER-SHOULDER Price: $13.99 |
| 39 |
112-6030 |
ROD-BRAKE Price: $26.99 |
| 40 |
112-6031 |
ROD-HYDRO Price: $24.46 |
| 41 |
112-6032 |
ROD-CONTROL Price: $36.26 |
| 42 |
112-0673 |
SPACER-TRANSAXLE Price: $10.10 |
| 43 |
112-0644 |
SPACER Price: $7.47 |
| 44 |
112-6147 |
BELT-V Price: $68.99 |
| 45 |
112-0313 |
PULLEY-IDLER, FLAT Price: $45.99 |
| 46 |
112-6148 |
PULLEY-INPUT Price: $22.33 |
| 47 |
112-6149 |
PULLEY-IDLER, Y TYPE Price: $40.99 |
| 48 |
112-0525 |
BRACKET-IDLER, CENTER DOUBLE Price: $48.99 |
| 49 |
112-6034 |
BRACKET-TORQ, TRANSMISSION Price: $27.97 |
| 50 |
112-6035 |
BRACKET-ACTUATOR Price: $13.99 |
| 51 |
112-0850 |
CONTROL ASM Price: $60.44 |
| 52 |
112-5998 |
SPEED CONTROL ASM Price: $44.99 |
| 53 |
112-0851 |
CONTROL PEDAL ASM Price: $69.66 |
| 54 |
112-0395 |
SCREW-HWH Price: $11.99 |
| 55 |
112-0599 |
PIN Price: $8.94 |
| 56 |
112-0668 |
NUT-LOCK, FLANGE Price: $5.79 |
| 57 |
112-0511 |
NUT-LOCK, FLANGE Price: $5.79 |
| 58 |
112-0459 |
PIN-COTTER Price: $3.16 |
| 59 |
112-0506 |
SPRING Price: $3.24 |
| 60 |
112-0510 |
SPRING-EXTENSION Price: $9.99 |
| 61 |
112-0348 |
SPRING-EXTENSION Price: $13.99 |
| 62 |
112-0543 |
PAD-PEDAL Price: $8.13 |
| 63 |
112-6001 |
PAD-BRAKE Price: $12.79 |
| 64 |
112-0366 |
WASHER-LOCK Price: $3.11 |
| 65 |
112-0339 |
WASHER-FLAT Price: $5.39 |
| 66 |
112-0541 |
WASHER-FLAT Price: $5.99 |
| 67 |
112-0542 |
BOLT-SHOULDER Price: $5.09 |
| 68 |
112-0442 |
BOLT-SHOULDER Price: $5.56 |
| 69 |
112-0347 |
BEARING-FLANGE Price: $13.99 |
| 70 |
112-0387 |
BEARING-FLANGE, HEX (SPLIT) Price: $10.99 |
| 71 |
112-6150 |
ROD-BRAKE, LOCK Price: $34.99 |
| 72 |
112-0662 |
ROD-CONTROL, CRUISE Price: $18.81 |
| 73 |
112-6005 |
PEDAL-BRAKE Price: $46.99 |
| 74 |
112-6004 |
LATCH-CRUISE Price: $13.40 |
| 75 |
112-0681 |
BRACKET-SUPPORT, STEERING Price: $129.99 |
| 76 |
112-5812 |
BRACKET-LOCKOUT Price: $24.32 |
| 77 |
112-0551 |
SCREW-HH Price: $5.99 |
