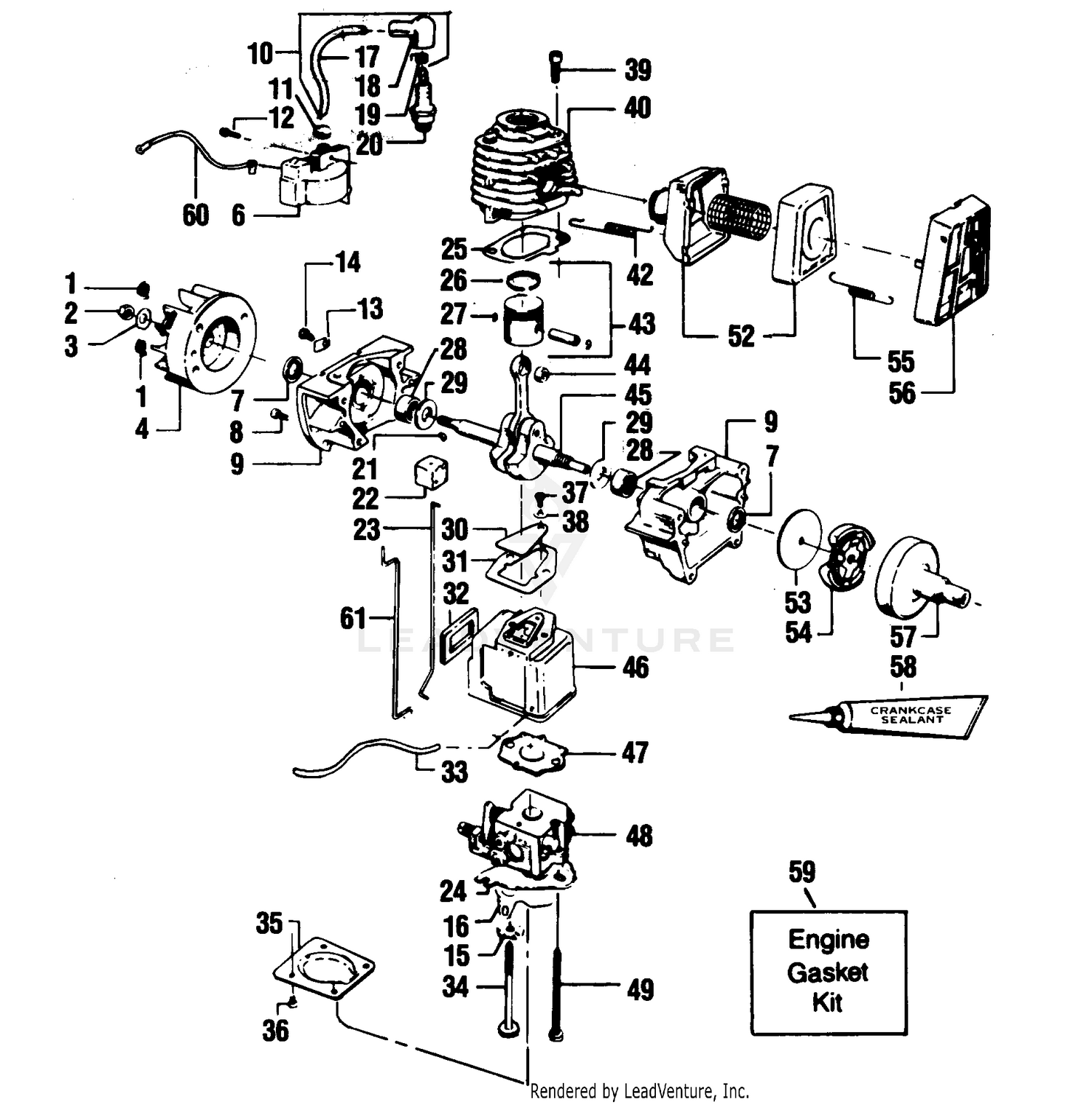

| Ref | Part Number | Description |
|---|
| 1 |
530023817 |
Spring-Starter Dog This part replaces 530042059. Price: $1.99 |
| 1 |
X-167-1 |
Screw, R.H.M. Price: Call Us |
| 2 |
530626605 |
Flywheel-Nut Price: $1.99 |
| 2 |
X-276-7 |
Nut-Wing Price: Call Us |
| 3 |
220537 |
Gasket Price: Call Us |
| 3 |
530015127 |
Flywheel Washer Price: $1.99 |
| 4 |
230838 |
Base Air Cleaner Price: Call Us |
| 5 |
230839 |
Cover, air cleaner Price: Call Us |
| 6 |
230840 |
Element, Air Cleaner Price: Call Us |
| 6 |
530069181 |
Ignition Module Kit Price: $3.33 |
| 7 |
230757 |
Baffle side air Price: Call Us |
| 7 |
530019059 |
Crankcase Seal Price: $4.99 |
| 8 |
234795 |
Baffle cylinder Price: Call Us |
| 8 |
530015369 |
Screw-Crankcase Price: $0.04 |
| 9 |
234796 |
Baffle, Head Price: Call Us |
| 10 |
41_027_36 |
Housing, Blower Price: Call Us |
| 10 |
530039103 |
High Tension-Load Assembly Incl. #17, 18 & 19 Price: Call Us |
| 11 |
230043 |
Stud valve cover Price: Call Us |
| 11 |
530024435 |
Grommet-Plug Wire Price: $1.99 |
| 12 |
230046 |
Seal Price: Call Us |
| 12 |
530015816 |
Screw This part replaces 530015128. Price: $1.99 |
| 13 |
230048 |
Gasket-Valve Cover Price: Call Us |
| 13 |
530024651 |
Choke Wire Clamp Price: $3.33 |
| 14 |
230066 |
Breather Price: Call Us |
| 14 |
530015004 |
Screw Price: $1.99 |
| 15 |
530015254 |
Washer Price: $1.99 |
| 15 |
A-234678 |
Cover, Valve Price: Call Us |
| 16 |
231419 |
Filter Price: Call Us |
| 16 |
530024558 |
Choke Shutter Price: $2.99 |
| 17 |
230008 |
Valve-Intake Price: Call Us |
| 17 |
530039082 |
High Tension Lead Wire Price: Call Us |
| 18 |
230010 |
OBSOLETE FEBRUARY 2005 Price: Call Us |
| 18 |
530003934 |
Spark Plug Boot Price: Call Us |
| 19 |
230011 |
Retainer-Spring Price: Call Us |
| 19 |
507475326 |
Spark Plug Boot This part replaces 530003933. Price: $3.99 |
| 20 |
230013 |
Tappet, Valve Price: Call Us |
| 20 |
530030077 |
Spark Plug (CJ-14) Price: $2.27 |
| 21 |
230020 |
Rotator Price: Call Us |
| 21 |
530015126 |
Key-Flywheel Price: $1.99 |
| 22 |
230027 |
Valve-Exhaust Price: Call Us |
| 22 |
530023373 |
Boot-Throttle Choke Wire Price: $1.99 |
| 23 |
230168 |
Spring Exhaust Valve Price: Call Us |
| 23 |
530024902 |
Throttle Wire (Red) Price: $3.33 |
| 24 |
230293 |
Spacer camshaft .005 Price: Call Us |
| 24 |
530026237 |
Guide Plate Price: $3.33 |
| 25 |
230294 |
Spacer, Camshaft.010 Price: Call Us |
| 25 |
530069219 |
Engine Gasket Kit This part replaces 530019111. Price: $11.54 |
| 26 |
230053 |
Pin, Camshaft Price: Call Us |
| 26 |
530026681 |
Ring-Piston Price: Call Us |
| 27 |
530015162 |
Retainer-Wrist Pin Price: $1.99 |
| 27 |
E-232776 |
Camshaft Price: Call Us |
| 28 |
47_089_01 |
Spring-Actuating Price: Call Us |
| 28 |
530032029 |
Bearing-Crankcase Price: $7.99 |
| 29 |
232777 |
Tappet-Exhaust Valve Price: Call Us |
| 29 |
530015351 |
Washer-Thrust-Crankcase Price: $3.99 |
| 30 |
240013 |
Keeper, Valve Price: Call Us |
| 30 |
530024438 |
Reed Valve Price: Call Us |
| 31 |
530019108 |
Gasket-Carburetor Case to Crankcase Price: $2.99 |
| 31 |
X-391-1 |
Elbow Price: Call Us |
| 32 |
530019105 |
Seal-Carburetor Case Price: Call Us |
| 32 |
G-220517 |
Carburetor Price: Call Us |
| 33 |
210223 |
Gasket-Carburetor Price: Call Us |
| 33 |
530069238 |
Line Kit Price: $3.33 |
| 34 |
231555 |
Repairkit Price: Call Us |
| 34 |
530015404 |
Screw Price: $2.99 |
| 35 |
530026029 |
Cover-Carburetor Case Price: $3.99 |
| 35 |
X-75-3 |
Plug Price: Call Us |
| 36 |
530015235 |
Screw-#6-18x9/16"-Pan Hd.-Carburetor Case Cover Price: Call Us |
| 36 |
X-230-11 |
Plug Price: Call Us |
| 37 |
530015241 |
Screw-#5-19x5/16"-Pan Hd. Reed Valve Price: $1.99 |
| 37 |
X-583-1 |
Seal Front Oil Price: Call Us |
| 38 |
530023367 |
Washer-Reed Valve Screw Price: Call Us |
| 38 |
X-583-2 |
Seal Rear Oil Price: Call Us |
| 39 |
230071 |
Gasket Price: Call Us |
| 39 |
530015239 |
Screw-#14-20x3/4" Hex Socket Hd. Cylinder Price: $1.99 |
| 40 |
230125-S |
Pin-Dowel Price: Call Us |
| 40 |
530012191 |
Cylinder Price: $3.33 |
| 41 |
231625 |
Ball Bearing Price: Call Us |
| 42 |
530036409 |
Muffler Spring This part replaces 530024903. Price: $1.99 |
| 43 |
230170 |
Insert Price: Call Us |
| 44 |
230007-S |
Guide-Valve Price: Call Us |
| 44 |
530032092 |
Bearing-Wrist Pin Price: $6.99 |
| 45 |
41_156_02 |
Plate,Bearing Price: Call Us |
| 46 |
230450 |
Crankshaft Price: Call Us |
| 46 |
530024409 |
Carburetor Housing Price: $9.99 |
| 47 |
530019157 |
Gasket-Carburetor Price: $0.74 |
| 47 |
X-352-35 |
Stud Price: Call Us |
| 48 |
220534 |
Washer Price: Call Us |
| 48 |
530035183 |
Carburetor Price: $65.89 |
| 49 |
232867 |
Strap Lifting Price: Call Us |
| 49 |
530015379 |
Screw-#10-24x1-7/8"-Fil. Hd. Carburetor Price: $2.99 |
| 50 |
232943 |
Head Cylinder Price: Call Us |
| 51 |
234847 |
Spacer Price: Call Us |
| 52 |
41_086_02 |
Screw H.C. Price: Call Us |
| 52 |
530069243 |
Muffler Ass'y. Price: $3.33 |
| 53 |
41_041_05 |
Gasket, Head Price: Call Us |
| 53 |
530069196 |
Kit-Clutch Washer Price: $3.33 |
| 54 |
A-231271 |
Dipstick Price: Call Us |
| 55 |
530024932 |
Spring-Muffler Guard Price: $3.33 |
| 55 |
X-25-15 |
Washer Price: Call Us |
| 56 |
530024855 |
Guard-Muffler Price: $5.99 |
| 56 |
X-119-14 |
Nut Price: Call Us |
| 57 |
530010797 |
Coupling & Bearing Assembly Price: $3.33 |
| 57 |
X-286-15 |
Key Price: Call Us |
| 58 |
41_025_11 |
Flywheel Price: Call Us |
| 58 |
530030054 |
Sealent-Crankcase (Not Supplied with Unit) Price: $17.99 |
| 59 |
240282 |
Cover-Pump Price: Call Us |
| 59 |
530069219 |
Kit-Engine Gasket Price: $11.54 |
| 60 |
47_041_01 |
Gasket, pump Price: Call Us |
| 60 |
530024158 |
Lead Wire-Kill Switch Price: $4.99 |
| 61 |
230078 |
Link-Governor Price: Call Us |
| 62 |
230476 |
Bushing Governor Price: Call Us |
| 63 |
230477 |
Bracket Speed Control Price: Call Us |
| 64 |
231355 |
Pin-GovemorStop Price: Call Us |
| 65 |
232614 |
Lever, Governor Price: Call Us |
| 66 |
232617 |
Spring-Governor Price: Call Us |
| 67 |
X-67-5 |
Pin Price: Call Us |
| 68 |
232836 |
Disc, Regulating Price: Call Us |
| 69 |
A-237031 |
Gear, Governor Price: Call Us |
| 70 |
230540-S |
Shaft-Governor Cross Price: Call Us |
| 71 |
X-489-2 |
Rod, Breaker Price: Call Us |
| 72 |
A-220136 |
Cover breaker Price: Call Us |
| 73 |
220174 |
Gasket, Cover Price: Call Us |
| 74 |
220297 |
Grommet Price: Call Us |
| 75 |
220791 |
Boot, Spark Plug Price: Call Us |
| 76 |
230249 |
Clip Price: Call Us |
| 77 |
47_147_01 |
Condenser Price: Call Us |
| 78 |
41_085_01 |
Stator Price: Call Us |
| 79 |
41_132_06 |
SparkPlug Price: Call Us |
| 80 |
47_150_01 |
Breaker Price: Call Us |
| 81 |
X-75-28 |
Plug-Pipe Price: Call Us |
| 82 |
230021 |
Pan, Oil Price: Call Us |
| 83 |
41_041_03 |
Gasket-Pan Price: Call Us |
| 84 |
232575 |
Ring Set Std. Price: Call Us |
| 85 |
230004 |
Retainer, Pin Price: Call Us |
| 86 |
A-234950 |
Piston-Assembly Std. (Includes Pin Retainers) Price: Call Us |
| 87 |
230525 |
Lock, Conn. Rod Price: Call Us |
| 88 |
B-230039 |
Rod, Connecting Std. Price: Call Us |
| 89 |
A-231643 |
Starter, recoil-assem. Price: Call Us |
| 90 |
41_071_02 |
Cup, Drive w/Screen Price: Call Us |
| 232576 |
Ring |
Set .010 Price: Call Us 232576 |
| 232577 |
Ring |
Set.020 Price: Call Us 232577 |
| 232578 |
Ring |
Set .030 Price: Call Us 232578 |
