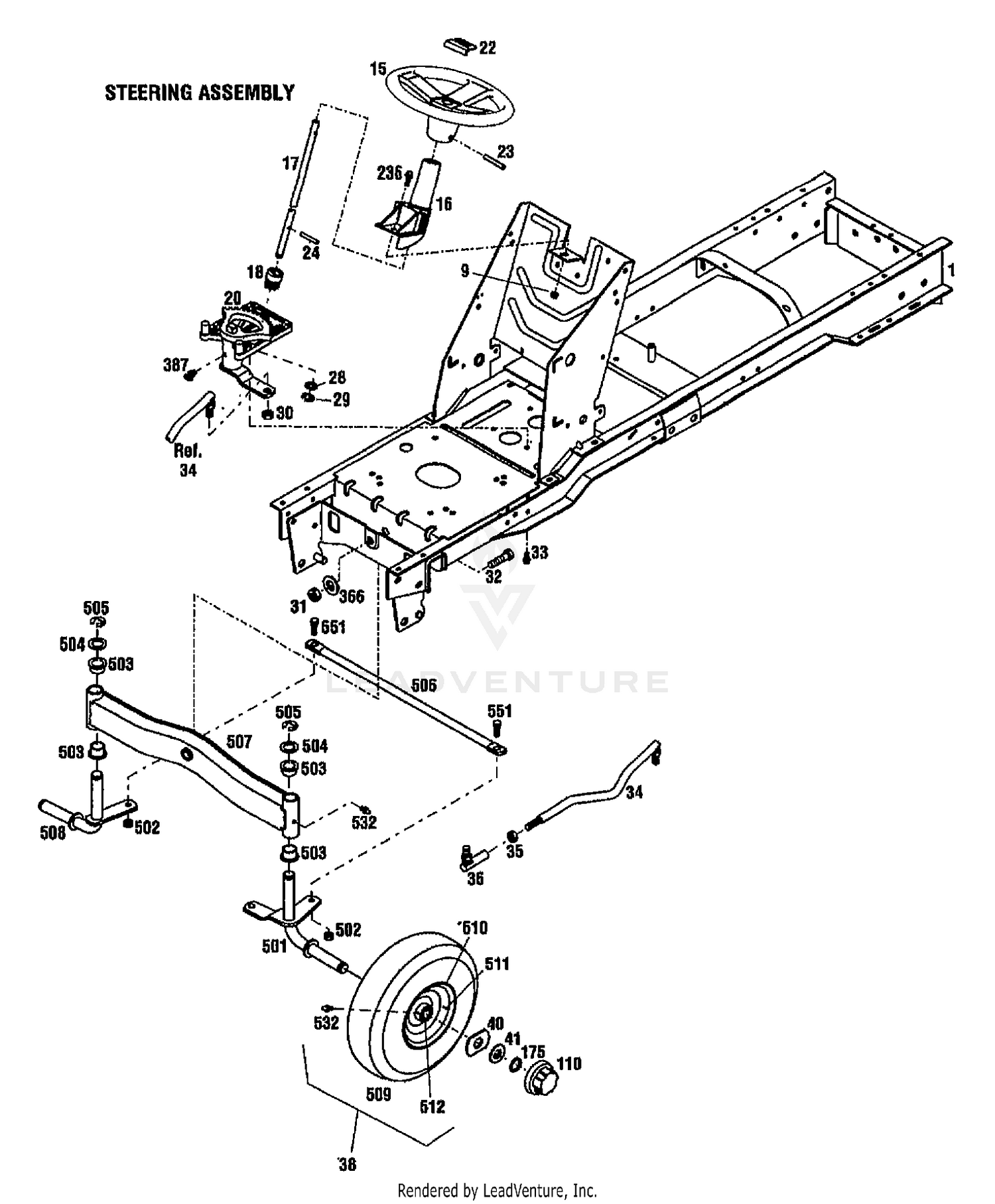

| Ref | Part Number | Description |
|---|
| 1 |
1772924001 |
FRAME BLACK Not Available This part replaces 1771825001. Price: |
| 9 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 15 |
1766027 |
STEERING W Not Available Price: |
| 16 |
1765443 |
SUPPORT-STEERING S Not Available Price: |
| 17 |
1765010 |
SHAFT-STEE Not Available Price: |
| 18 |
1771039 |
GEAR-PINIO Not Available Price: |
| 20 |
1771320 |
GEAR ASSEMBLY-S Not Available Price: |
| 22 |
1766221 |
CAP-STEERING Not Available Price: |
| 23 |
715-0121 |
Spirol Pin, 1/4 x 2.0 This part replaces 1185284. Price: $5.95 |
| 24 |
715-0143 |
Spring Spiral Pin, .25 x 1.25 This part replaces 1185348. Price: $4.04 |
| 28 |
736-0156 |
Flat Washer, 5/8 This part replaces 1705092. Price: $3.95 |
| 29 |
716-0106 |
E-ring This part replaces 1177567. Price: $3.52 |
| 30 |
712-3059 |
Nut, Hex Jam Patch, 1/2-20 This part replaces 1768796. Price: $4.08 |
| 31 |
712-3016 |
Nut, Hex Lock, Nylon, 5/8-11, Gr5 This part replaces 1758231. Price: $5.94 |
| 32 |
1767953 |
HEX SCREW Not Available Price: |
| 33 |
1766984 |
SCREW-FLANGE LOCK Not Available Price: |
| 34 |
1765315 |
DRAG LINK Not Available Price: |
| 35 |
712-3029 |
Nut, 1/2-20, Jam This part replaces 1186247. Price: $6.01 |
| 36 |
1716180 |
BALL JOINT Not Available Price: |
| 38 |
1767277 |
ASSM-WHEEL & TIRE FRONT Not Available Price: |
| 40 |
1766241 |
SPECIAL WASHER Not Available Price: |
| 41 |
736-0188 |
Washer-Fl-.760Id X This part replaces 1185830. Price: $3.75 |
| 110 |
1766215 |
HUB CAP Not Available Price: |
| 175 |
716-0231 |
E-ring..75 This part replaces 1185388. Price: $3.50 |
| 236 |
710-04043 |
SCREW 5/16-18 This part replaces 1186329. Price: $3.96 |
| 366 |
736-04088 |
Flat Washer .635x1.24x.181 This part replaces 1100266. Price: $3.90 |
| 387 |
737-3004 |
Fitting, Lube, 90ø 1/4-28 Tapper Thd This part replaces 1731504. Price: $10.22 |
| 501 |
1765263001 |
SPINDLE-WHEEL (LH) Not Available Price: |
| 502 |
712-0214 |
Nut, Hex Lock, 3/8-24 This part replaces 1110150. Price: $5.94 |
| 503 |
1764140 |
BUSHING Price: $4.40 |
| 504 |
1701447 |
WASHER-1.25X.765X.049 Price: $3.93 |
| 505 |
1185689 |
RETAINING RING EXT Not Available Price: |
| 506 |
1768883001 |
TIE ROD Not Available Price: |
| 507 |
1765169001 |
AXLE-FRONT Price: Call Us |
| 508 |
1765004001 |
ASSM-SPINDLE WHEEL RH Price: Call Us |
| 509 |
734-0864-0901 |
TIRE 15 x 6 CARLISLE Not Available This part replaces 1762254. Price: |
| 510 |
1767276 |
RIM ASSEMBLY Not Available Price: |
| 511 |
934-0255 |
TUBELESS VALVE This part replaces 1718086. Price: $3.83 |
| 512 |
IH-384881-R94 |
BEARING This part replaces 1185616. Price: $25.09 |
| 532 |
937-0146 |
Grease Fitting This part replaces 1185976. Price: $4.80 |
