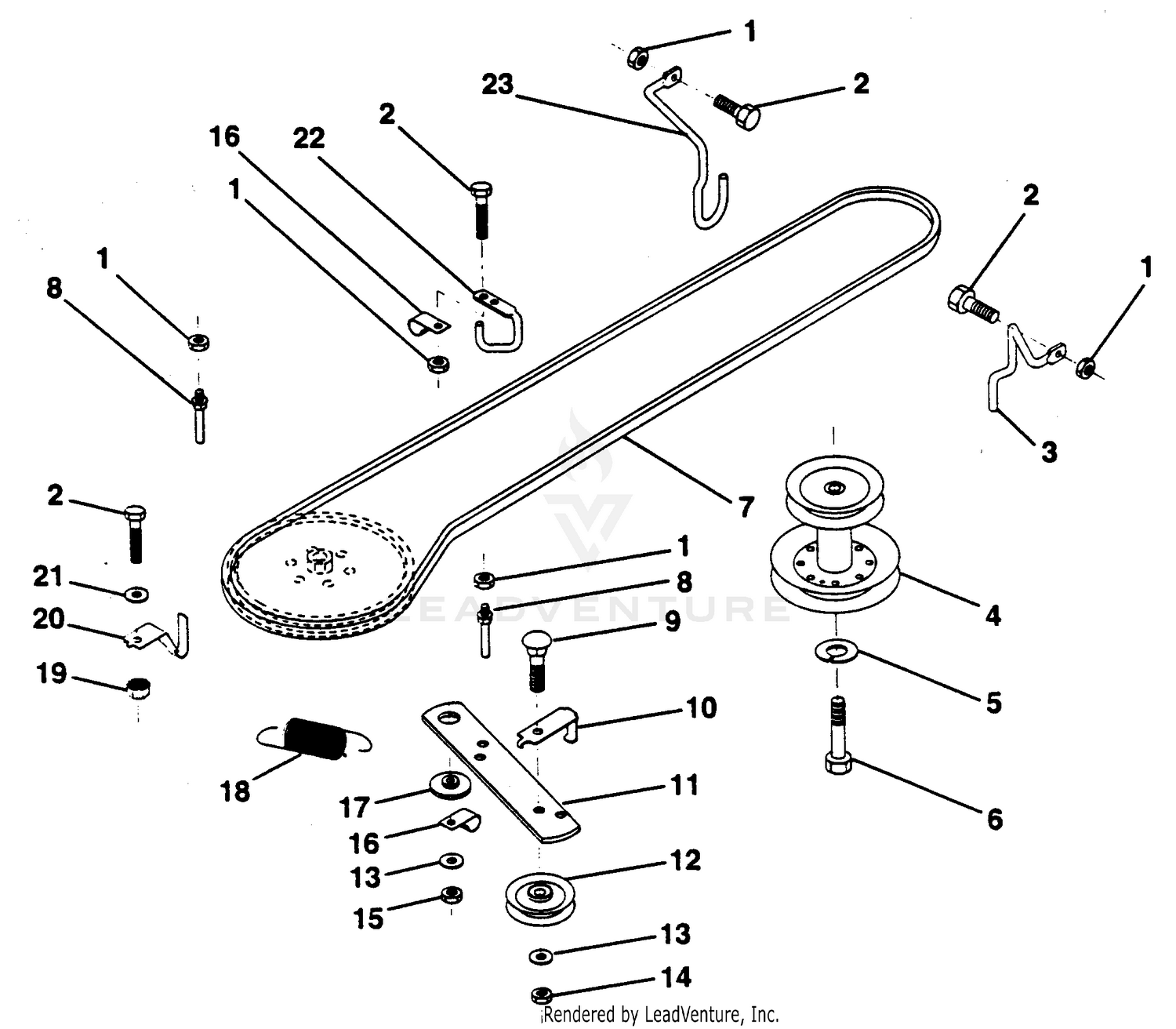

| Ref | Part Number | Description |
|---|
| 1 |
873800500 |
Nut, Lock Hex w/Ins 5/16-18 Price: $2.69 |
| 2 |
539976934 |
HCS.5/16-18X3/4 This part replaces 874760512. Price: $1.99 |
| 2 |
66-5730 |
DISCONTINUED Price: Call Us |
| 3 |
532141341 |
Keeper, Mower Drive, R.H. Price: $4.99 |
| 3 |
94-3603 |
MOTOR BODY ASM Price: $247.19 |
| 4 |
532138029 |
Pulley, Engine Price: $48.99 |
| 4 |
94-3602 |
DRIVE GEAR ASM Price: $672.24 |
| 5 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 5 |
94-3601 |
IDLER GEAR ASM Price: $384.99 |
| 6 |
59-8420 |
RING Price: $6.90 |
| 6 |
871170744 |
Bolt, Hex Hd. 7/16-20 UNF Grade 5 Price: $2.99 |
| 7 |
532124525 |
Traction, V-Belt Drive Price: $34.99 |
| 7 |
60-5890 |
WASHER Price: $4.68 |
| 8 |
532164173 |
KEEPER.BELT.ENGINE This part replaces 532123405. Price: $4.99 |
| 8 |
59-8320 |
RING-RETAINING Price: $5.29 |
| 9 |
872140612 |
Bolt, Carriage 3/8-16 UNC x 1-1/2 Price: $2.99 |
| 10 |
532123396 |
Keeper, Ground Drive Belt Idler Price: $4.99 |
| 11 |
532140911 |
Arm, Ground Drive Clutch Price: $4.35 |
| 11 |
94-3600 |
CAPSCREW Price: $6.65 |
| 12 |
117-8976 |
SEAL This part replaces 66-5710. Price: $48.67 |
| 12 |
532123674 |
Idler, Flat Price: $17.99 |
| 13 |
819131316 |
Washer 13/32 x 13/16 x 16 Gauge Price: $2.99 |
| 14 |
873680600 |
Nut This part replaces 873930600. Price: $1.99 |
| 15 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 16 |
532126472 |
Clip, Insulated Price: $2.45 |
| 17 |
532165723 |
Spacer Retainer This part replaces 532122052. Price: $2.99 |
| 18 |
532131459 |
Spring, Extension Price: $4.99 |
| 18 |
94-3606 |
KEY Price: $7.52 |
| 19 |
42-2010 |
PIN-DOWEL Price: $2.67 |
| 19 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873510500. Price: $2.69 |
| 20 |
532139919 |
Keeper, T/A, Ground Drive Belt Price: $2.99 |
| 20 |
94-3605 |
BACKPLATE ASM Price: $531.42 |
| 21 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111016. Price: $2.02 |
| 21 |
92-9260 |
RELIEF VALVE KIT Price: $246.39 |
| 22 |
532123404 |
Keeper, Frame Ground Drive Belt Price: $3.22 |
