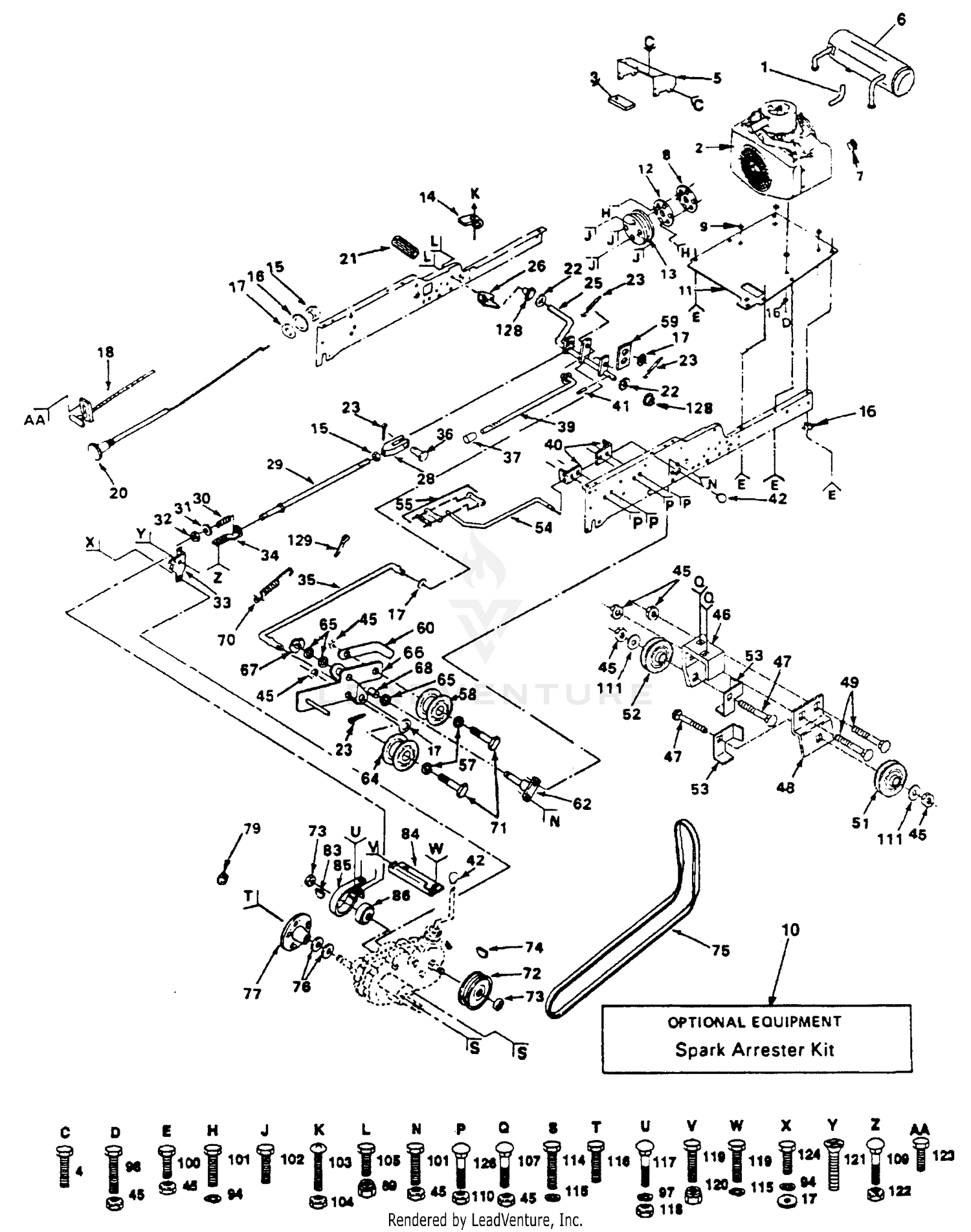

| Ref | Part Number | Description |
|---|
| 1 |
532126086 |
EXHAUST OUTLET Price: $24.91 |
| 2 |
532124276 |
Engine-18HP Kohler M18QS Type 24644 Price: Call Us |
| 3 |
532126350 |
DUCT, LOWER ASS'Y Price: $96.79 |
| 4 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 5 |
532124508 |
DUCT,EXHAUST UPPE Price: $97.89 |
| 6 |
532124532 |
MUFFLER EXHAUST Price: $157.31 |
| 8 |
532133692 |
Chaff Guard Price: Call Us |
| 9 |
532110869 |
SPACER T Price: $58.25 |
| 10 |
532674380 |
SPARK ARRESTOR KIT This part replaces 532132922. Price: $42.99 |
| 11 |
532110867 |
BASE ENG. T Price: $32.99 |
| 12 |
532104577 |
ADAPTER T Price: $22.99 |
| 13 |
532121355 |
PULLEY GROUND DRI Price: $15.99 |
| 14 |
532178575 |
ACTUATOR INTERLOCK SWITCH This part replaces 532005304. Price: $3.99 |
| 15 |
873610600 |
NUT Price: $2.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 17 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 18 |
532132746 |
CONTROL, THROTTLE Price: $12.18 |
| 20 |
532132780 |
CONTROL, CHOKE Price: $19.99 |
| 21 |
532123533 |
COVER, PEDAL (1 2) Price: $6.99 |
| 22 |
532121749 |
WASHER Price: $2.99 |
| 23 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 25 |
532104375 |
SHAFT ASSY GT Price: $32.62 |
| 26 |
532104601 |
BRKT SWITCH GT Price: $5.46 |
| 28 |
532100604 |
YOKE GTV Price: $6.16 |
| 29 |
532005308 |
BRAKE ROD T Price: $6.12 |
| 30 |
532007241 |
SPRING T Price: $4.99 |
| 31 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 32 |
873610600 |
NUT This part replaces 873530600. Price: $2.99 |
| 33 |
532677637 |
BRAKE BRACKET This part replaces 532124692. Price: $5.99 |
| 34 |
532007229 |
GUIDE ROD This part replaces 532124695. Price: $10.91 |
| 35 |
532101356 |
ROD CLUTCH GTV Price: $14.29 |
| 36 |
532005102 |
CLEVIS PIN T Price: $3.08 |
| 37 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 39 |
532136284 |
ROD, PARKING BRAKE Price: $7.59 |
| 40 |
532105598 |
ROD BRACKET GT Price: $4.99 |
| 41 |
532005142 |
ROLL PIN STD Price: $3.99 |
| 42 |
532121466 |
KNOB Price: $3.99 |
| 45 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 46 |
532139995 |
KIT BRKT DR MULE This part replaces 532121063. Price: $22.23 |
| 47 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 48 |
532122825 |
BRKT IDLER FLAT Price: $2.42 |
| 49 |
872140606 |
Bolt, Carriage 3/8-16 x 3/4 Price: $4.99 |
| 51 |
532102403 |
IDLER-FLAT T Price: $34.99 |
| 52 |
532101344 |
PULLEY V IDLR GTV Price: $39.99 |
| 53 |
532122824 |
GUARD BELT Price: $8.99 |
| 54 |
532122253 |
ROD SHIFT HI LO Price: $14.99 |
| 55 |
532122268 |
CONNECTING LINK Price: $4.99 |
| 57 |
819131413 |
Washer 13/32 x 7/8 x 13 Gauge Price: $2.99 |
| 58 |
597025001 |
CLG This part replaces 532104360. Price: $22.99 |
| 59 |
532121358 |
RETAINER SPRING Price: $2.38 |
| 60 |
532121360 |
RETAINER BELT Price: $2.99 |
| 62 |
532101358 |
BRACKET ASSY GTV Price: $27.21 |
| 64 |
532139123 |
PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99 |
| 65 |
532000207 |
WASHER T Price: $4.99 |
| 67 |
812000039 |
KLIP RING Price: $4.99 |
| 68 |
532105706 |
BEARING LT (2 2) Price: $5.99 |
| 70 |
532121357 |
SPRING EXT CLUTCH Price: $9.08 |
| 71 |
582740701 |
BOLT This part replaces 874760628. Price: $4.99 |
| 72 |
532120332 |
PULLEY GT Price: $22.99 |
| 73 |
532009204 |
NUT STD Price: $2.38 |
| 74 |
532009858 |
KEY This part replaces 532124708. Price: $5.39 |
| 75 |
532110883 |
V-BELT T Price: $44.99 |
| 76 |
532007563 |
WASHER T Price: $6.99 |
| 77 |
532634692 |
HUB.ASSEMBLY.WHEEL.REAR This part replaces 532135758. Price: $42.99 |
| 79 |
812000034 |
Klip, Ring Price: $2.99 |
| 83 |
532125096 |
KEY STD (1373) DANA Price: $7.99 |
| 84 |
532156404 |
SUPPORT BRACKET This part replaces 532120404. Price: $6.60 |
| 85 |
532101122 |
BRAKE BAND ASM Price: $71.99 |
| 86 |
532000214 |
BRAKE DRUM T Price: $18.29 |
| 89 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 94 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 97 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 98 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874780624. Price: $6.99 |
| 100 |
874760612 |
BOLT Price: $3.99 |
| 101 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 102 |
817190516 |
Screw, Hex 5/16-18 x 1 Price: $2.42 |
| 103 |
874321016 |
Screw, Fin #10-24 x 1 Price: $2.99 |
| 104 |
532069180 |
LOCKNUT This part replaces 873631000. Price: $2.99 |
| 105 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 107 |
872140606 |
Bolt, Carriage 3/8-16 x 3/4 Grade 5 Price: $4.99 |
| 109 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 110 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 111 |
596140201 |
Washers This part replaces 819131612. Price: $2.99 |
| 114 |
874780720 |
BOLT, HEX This part replaces 874760720. Price: $5.99 |
| 115 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 116 |
596218701 |
Bolts This part replaces 532001304. Price: $2.99 |
| 117 |
872140405 |
BOLT T Price: $3.99 |
| 118 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 119 |
596238601 |
Bolts This part replaces 874760716. Price: $2.99 |
| 120 |
873680700 |
Nut, Crownlock 7/16-14 Price: $2.99 |
| 121 |
874370612 |
SCREW Price: $2.99 |
| 122 |
532124949 |
LOCKNUT Price: $3.99 |
| 123 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 124 |
596564401 |
Bolts This part replaces 874760614. Price: $3.99 |
| 126 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
