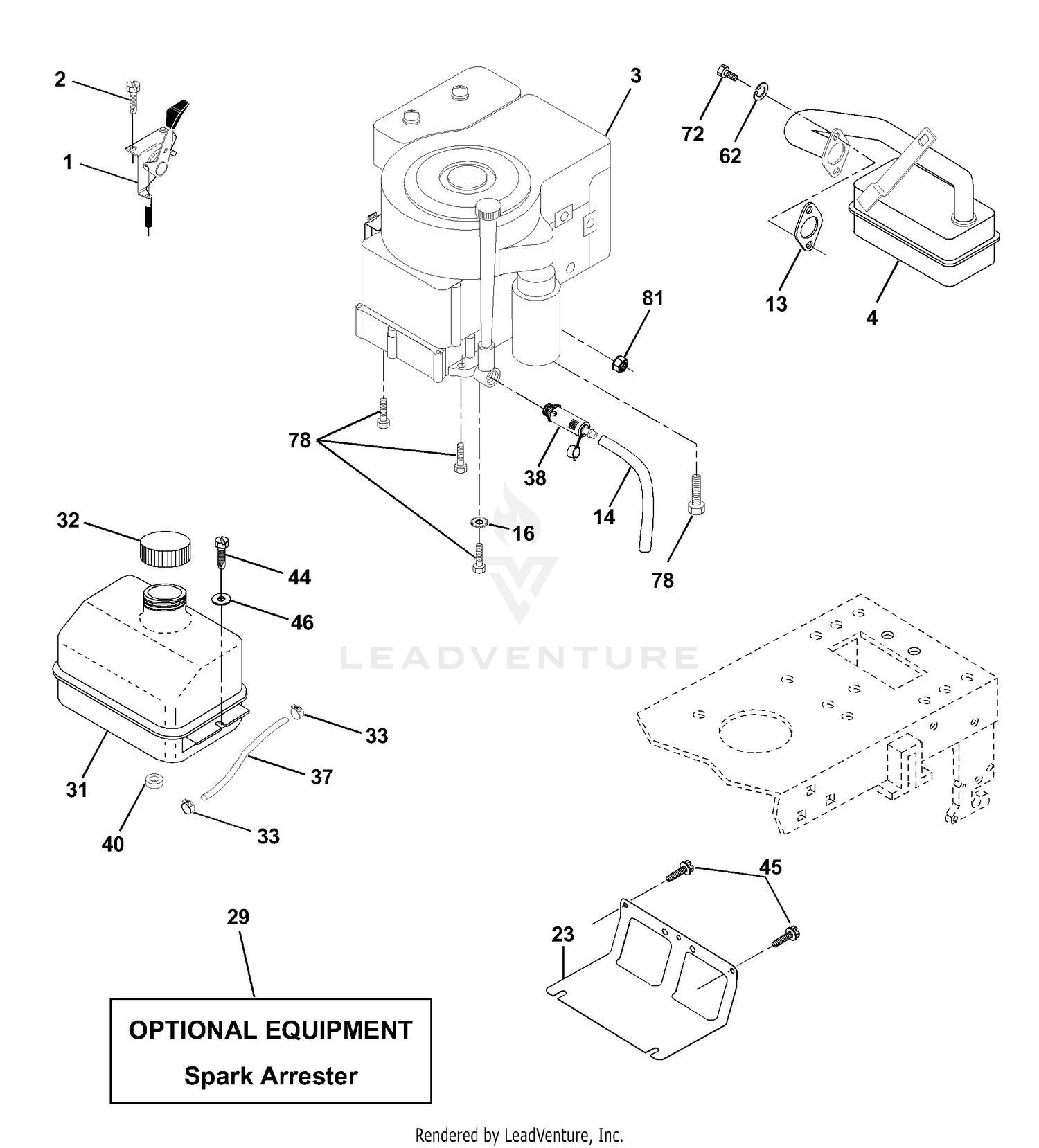

| Ref | Part Number | Description |
|---|
| 1 |
532170551 |
CONTROL.THROTTLE/CHOKE.BLACK Price: $24.99 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 4 |
532137348 |
MUFFLER.SINGLE.B&S.10-12HP Price: $89.99 |
| 010 |
98-9604 |
CRANKCASE ASM This part replaces 105-3778. Price: $1,882.83 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 020 |
98-9398 |
CAP-SEALING Price: $6.08 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 030 |
98-7539 |
CAP-SEALING Price: $6.44 |
| 31 |
532184900 |
TANK.ASM.FUEL.FRONT.W/CAP This part replaces 532109202. Price: $39.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 040 |
98-9687 |
PLUG This part replaces 98-7540. Price: $2.86 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 050 |
105-3779 |
PLUG Price: $8.05 |
| 060 |
98-9597 |
PLUG Price: $17.66 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 070 |
98-7487 |
PLUG Price: $3.18 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 080 |
98-9379 |
PLUG-EXPANSION This part replaces 98-7489. Price: $0.76 |
| 090 |
98-9668 |
PLUG-EXPANSION Price: $2.17 |
| 100 |
98-9375 |
PIN-STRAIGHT This part replaces 105-3793. Price: $0.41 |
| 110 |
105-3794 |
PIN-STRAIGHT Price: $1.21 |
| 120 |
105-3795 |
PIN-STRAIGHT Price: $0.99 |
| 130 |
98-9387 |
PIN-PIPE Price: $2.92 |
| 140 |
98-9539 |
PIN-PIPE Price: $1.15 |
| 150 |
98-9599 |
PLUG Price: $6.08 |
| 160 |
98-9630 |
PIN-SPRING, START Price: $1.47 |
| 170 |
98-9675 |
PLUG Price: $8.54 |
| 180 |
98-9656 |
BUSHING-GOVERNOR, GEAR Price: $29.04 |
| 190 |
98-7507 |
PLUG Price: $2.64 |
| 200 |
98-7428 |
GASKET Price: $0.68 |
| 210 |
98-7509 |
O-RING Price: $4.31 |
| 220 |
120-3121 |
DRAINCOCK ASM This part replaces 98-9436. Price: $16.19 |
