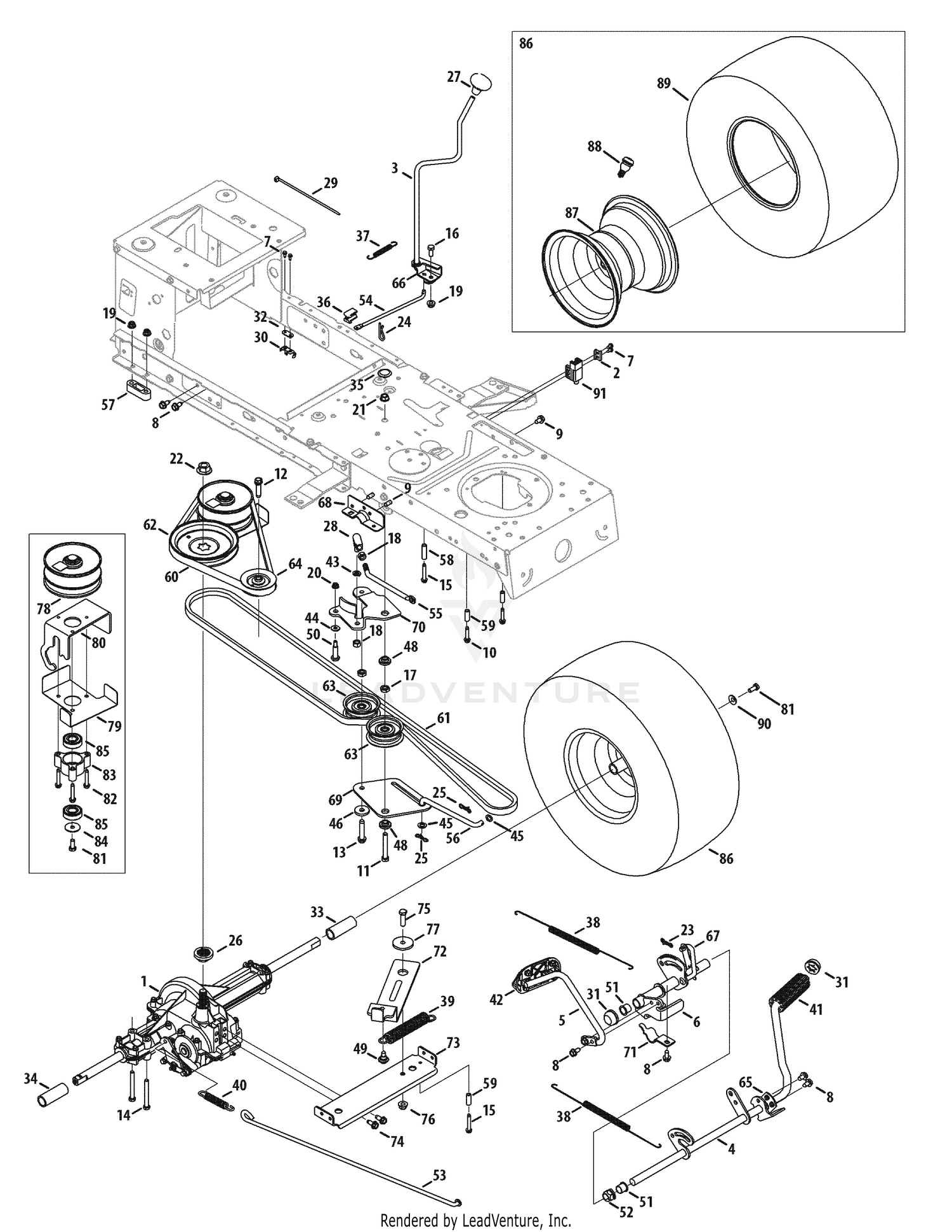

| Ref | Part Number | Description |
|---|
| 1 |
618P09815 |
TRANSAXLE This part replaces 918-04566. Price: $398.09 |
| 2 |
17962 |
Plate Switch Price: $4.36 |
| 3 |
647-04035 |
Lever Assembly, Shift Price: $33.15 |
| 4 |
947-04201A-0637 |
Pedal Assembly, drive This part replaces 647-04201-0637. Price: $41.69 |
| 5 |
647-04203A-0637 |
Pedal Assembly, control This part replaces 647-04203-0637. Price: $18.42 |
| 6 |
683-04607 |
Bracket Assembly, Pedal Price: $38.66 |
| 7 |
710-0227 |
Screw, ab, #8-18, 0.500, Hxindwsh Price: $3.90 |
| 8 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 9 |
710-0604A |
Screw, tt, 5/16-18, 0.625, Hxindwsh Price: $3.96 |
| 10 |
710-0809 |
Screw, tt, 1/4-20, 1.250, Hxindwsh Price: $6.37 |
| 11 |
710-0859 |
Hhcs, 3/8-16, 2.50, Gr5, Std Price: $5.99 |
| 12 |
710-1007 |
Screw, ttsems, 3/8-16, 1.500, Hxlwsh Price: $5.71 |
| 13 |
710-1008 |
Screw, ttsems, 3/8-16, 1.875, Hxlwsh Price: $4.75 |
| 14 |
710-1266 |
Hhcs, 5/16-18, 3.50, Gr5, Std Price: $8.66 |
| 15 |
710-1325 |
Screw, tt, 1/4-20, 1.625, Hxindwsh Price: $4.11 |
| 16 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 17 |
912-0240 |
Nut, jam, 7/16-20, Gr2 Price: $3.90 |
| 18 |
712-0241 |
Nut, hex, 3/8-24, Gr5 Price: $3.86 |
| 19 |
712-04063 |
Nut, flglk, 5/16-18, Grf, nylon Price: $3.56 |
| 20 |
712-04064 |
Nut, flglk, 1/4-20, Grf, nylon Price: $3.64 |
| 21 |
912-0431 |
Nut, flglk, 3/8-16, Grf, top Lk Price: $4.29 |
| 22 |
712-0700 |
Nut, flg, 9/16-18, Gr2 Price: $10.12 |
| 23 |
714-0111 |
Cotter Pin This part replaces 914-0111. Price: $4.20 |
| 24 |
914-0209 |
Pin, cotter Int- .125 Dia Price: $3.22 |
| 25 |
714-04040 |
Pin, cotter, bow-Tie 72 Price: $1.28 |
| 26 |
718-04407 |
Hub, Pulley, 5/8 Spline Price: $11.11 |
| 27 |
720-04028 |
Knob, Shift Price: $9.44 |
| 28 |
923-3018 |
Ball, joint Price: $15.50 |
| 29 |
725-0157 |
Cable, tie, 3/16 X .05 X 7.4 Price: $3.46 |
| 30 |
725-1644 |
SAFETY SPRING SWITCH Price: $8.34 |
| 31 |
726-0214 |
Cap, push 5/8 Price: $9.11 |
| 32 |
926-0320 |
Plate, Insulator Nut Price: $6.01 |
| 33 |
731-04602 |
Sleeve, .758 X .821 X 3.3125 Price: $5.62 |
| 34 |
731-04604 |
Sleeve, .758 X .821 X 2.4375 Price: $5.78 |
| 35 |
731-06330 |
Plug, deck Hole, 7/8 Price: $3.99 |
| 36 |
731-06894A |
SHIFT ROD BEARING This part replaces 731-06894. Price: $4.66 |
| 37 |
732-04488 |
Spring, extension, .38 Od X 3.25 Lg Price: $5.32 |
| 38 |
732-04612 |
Spring, extension, .70 Dia X 12.00 Lg Price: $14.09 |
| 39 |
732-04616B |
Spring Extension, .97 Od X 6.18 Lg This part replaces 732-04616. Price: $12.75 |
| 40 |
732-0716D |
Spring, extension, .59 Od X 4.00 Lg Price: $11.49 |
| 41 |
735-0239A |
FOOT PAD This part replaces 735-0239. Price: $10.76 |
| 42 |
735-0662 |
Pad, Control Price: $10.46 |
| 43 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 936-0169. Price: $3.33 |
| 44 |
736-0173 |
Washer, flat, .28 X .74 X .063 Price: $3.76 |
| 45 |
736-0185 |
Flat Washer, .375 x .738 x .063 This part replaces 936-0185. Price: $3.43 |
| 46 |
736-0322 |
Washer, flat, .450x1.250x.164, Ht Price: $8.42 |
| 48 |
738-0372B |
Spacer, Drive, 1.00 X .38 X .38 Price: $8.78 |
| 49 |
738-04091A |
Screw, Drive, .43x.29, Tt, 5/16-18 Price: $3.50 |
| 50 |
938-0572 |
Screw, shld, .374 Dia. X 1.16 Lg. Price: $7.03 |
| 51 |
741-0495 |
NYLINER BEARING Price: $4.02 |
| 52 |
741-3065B |
Bearing, hex Flg, .628 Id, split Price: $7.45 |
| 53 |
747-05188 |
Rod, brake,Trans Price: $11.31 |
| 54 |
747-05243 |
Rod, shift, 46" Price: $9.73 |
| 55 |
747-05251A |
IDLER ADJUSTMENT ROD Not Available Price: |
| 56 |
747-05307 |
TRANSMISSION FOOTPEDAL ROD Not Available Price: |
| 57 |
948-0334 |
Spacer, T-Axle .68 Price: $9.87 |
| 58 |
750-04456 |
Spacer, .260 X .372 X 1.420 Lg Price: $6.20 |
| 59 |
750-0566A |
Spacer, .260 X .375 X 1.030 Lg Price: $9.17 |
| 60 |
954-04208A |
V Belt, 5L 40.9 Poly This part replaces 954-04208. Price: $42.39 |
| 61 |
954-0467A |
V Belt, 5L, 90.93 Poly This part replaces 954-0467. Price: $46.63 |
| 62 |
956-04002 |
Pulley, v Typ, 7.25 Dia Spun Price: $24.33 |
| 63 |
756-04224 |
Pulley, Idler, flat 2.75 Od Price: $24.80 |
| 64 |
756-04325 |
Pulley, Idler, v-Type X 3.06 Price: $22.60 |
| 65 |
783-04536B-0637 |
Bracket, Pedal, support Price: $5.67 |
| 66 |
783-04595A |
Bracket, Shift, adj Price: $9.09 |
| 67 |
783-06278 |
Plate, Bracket, reinforcement Price: $6.36 |
| 68 |
783-06562A-0637 |
Frame Pedal Bracket, Rh This part replaces 783-06562-0637. Price: $4.02 |
| 69 |
783-06570 |
CENTER DOUBLE IDLER BRACKET Not Available Price: |
| 70 |
783-06592B |
DOULE IDLER BRACKET This part replaces 783-06592. Price: $14.59 |
| 71 |
783-06641A |
Pedal Support Bracket This part replaces 783-06641. Price: $7.18 |
| 72 |
753-06662 |
KIT:REPL:IDLER BRKT This part replaces 683-04521. Price: $20.15 |
| 73 |
783-06568A |
TRANSMISSION BRACKET This part replaces 683-04606. Price: $20.53 |
| 74 |
710-1260A |
Screw, tt, 5/16-18, 0.750, Hxindwsh Price: $3.34 |
| 75 |
710-3005 |
Hhcs, 3/8-16, 1.25, Gr5, Std Price: $3.61 |
| 76 |
712-04065 |
Nut, flglk, 3/8-16, Grf, nylon Price: $3.68 |
| 77 |
738-04162C |
Shoulder Spacer, .8840 x .190 This part replaces 738-04162A. Price: $12.76 |
| 78 |
656P05011 |
VARIABLE SPEED PULLEY (4.75 OD) This part replaces 956-04015A. Price: $90.80 |
| 79 |
783-06227A |
TRANSMISSION BELT KEEPER This part replaces 683-04522. Price: $14.09 |
| 80 |
783-06587A |
VARIABLE SPEED BRACKET This part replaces 683-04612-0637. Price: $30.43 |
| 81 |
710-0627 |
Hhcs, 5/16-24, .750, Gr5, Lock Price: $3.68 |
| 82 |
710-0778 |
Screw, tt, 1/4-20, 1.500, Hxindwsh Price: $3.90 |
| 83 |
718-04261 |
Cup, Bearing Price: $18.82 |
| 84 |
736-0362 |
Washer, flat, .330 X 1.25 X .06, Ht Price: $3.93 |
| 85 |
941-0600 |
Bearing, ball, 17x40x12, 6203, Ds Price: $23.34 |
| 86 |
634-0104-0911 |
Wheel, 20 x 8 x 8, 42" Price: $127.19 |
| 87 |
634-04369-0662 |
Rim Assembly:8.0 X 7.0 X .750 Id Price: $145.10 |
| 88 |
934-0255 |
Valve, tubeless Air Price: $3.83 |
| 89 |
734-1730-0901 |
Tire, 20 X 8 X 8 Sq Sh Price: $92.28 |
| 90 |
736-0242 |
Bell Washerer, .340 x .872 x .060 Price: $3.75 |
