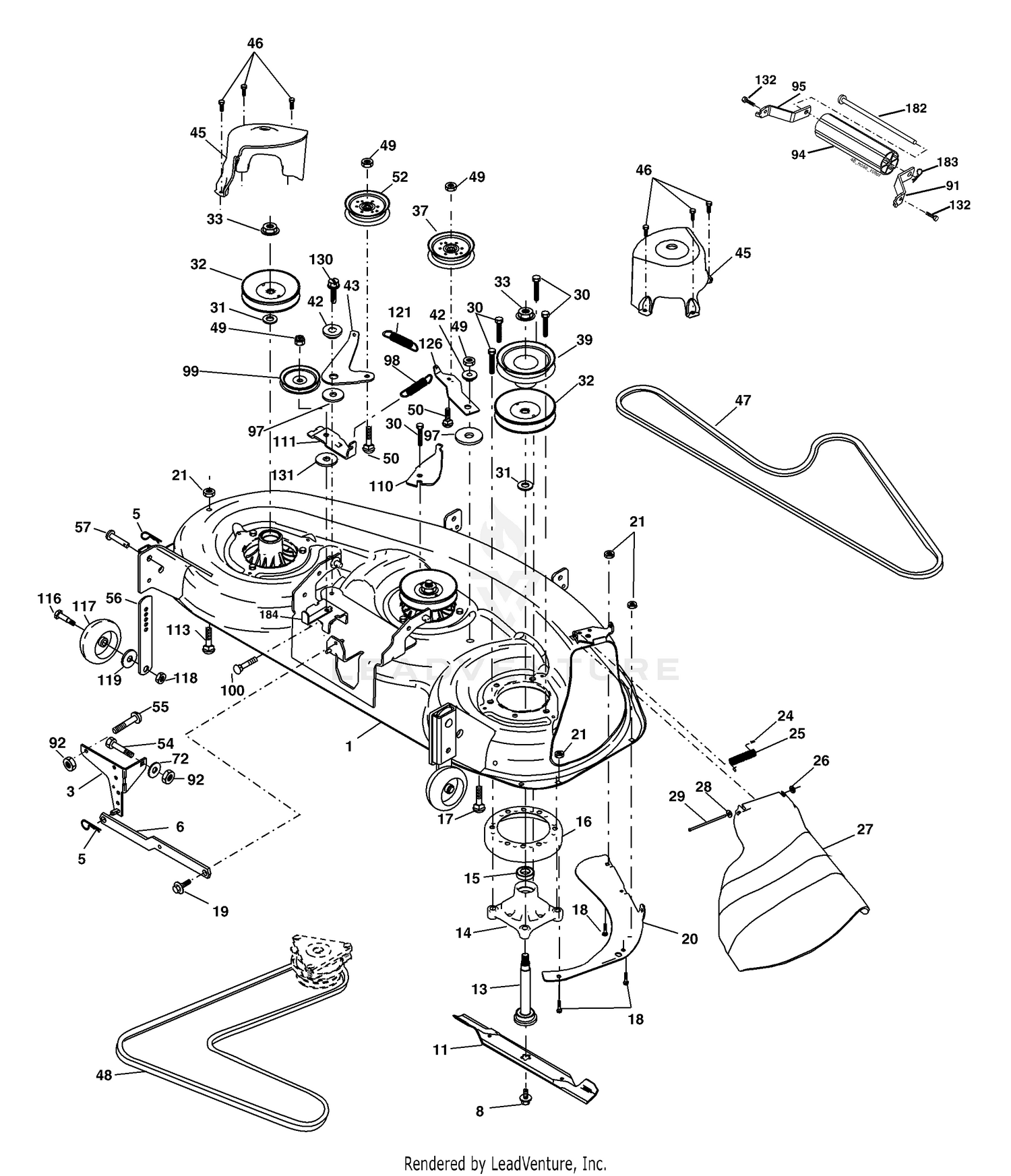

| Ref | Part Number | Description |
|---|
| 1 |
532184233 |
KIT.DECK.SERV.48" This part replaces 532183389. Price: $326.99 |
| 1 |
95-7522 |
AXLE Price: $377.20 |
| 2 |
99-7564 |
SEAL-OIL Price: $25.36 |
| 3 |
532138017 |
Bracket Asm., Sway Bar Price: $7.99 |
| 3 |
95-7544 |
CLIP Price: $4.04 |
| 4 |
95-7523 |
SPACER Price: $26.89 |
| 5 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 5 |
99-7555 |
SHIM 0.3 Price: $3.29 |
| 5 |
99-7556 |
SHIM 0.2 Price: $3.29 |
| 5 |
99-7557 |
SHIM 0.5 Price: $3.37 |
| 6 |
532178024 |
Bar Sway Deck Price: $5.99 |
| 6 |
95-7525 |
GEAR-BEVEL, 27 TOOTH Price: $333.09 |
| 7 |
99-7534 |
BEARING-BALL Price: $65.44 |
| 8 |
532193003 |
BOLT, BLADE This part replaces 532174365. Price: $5.99 |
| 8 |
95-7521 |
COVER-AXLE Price: $107.87 |
| 9 |
106-1071 |
O-RING This part replaces 99-7538. Price: $18.43 |
| 10 |
93-7775 |
BEARING-BALL This part replaces 99-7561. Price: $127.75 |
| 11 |
532180054 |
Blade Price: $12.99 |
| 11 |
99-7539 |
CLIP Price: $11.07 |
| 12 |
104-2374 |
BOLT This part replaces 99-7596. Price: $6.33 |
| 13 |
532175147 |
Shaft Asm. Mandrel Sealed Price: $22.99 |
| 14 |
532174358 |
Housing Mandrel 48" Price: $22.99 |
| 15 |
532110485 |
Bearing, Ball, Mandrel Price: $7.99 |
| 16 |
532174493 |
Stripper, Mower Price: $3.99 |
| 17 |
872140614 |
BOLT This part replaces 872110610. Price: $2.99 |
| 18 |
872140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: $2.69 |
| 19 |
532132827 |
Bolt, Hex Head, Shoulder 5/16-18 Price: $2.99 |
| 20 |
532174378 |
Baffle, Vortex Mower Price: $8.99 |
| 21 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 24 |
532105304 |
Cap, Sleeve Price: $2.99 |
| 25 |
539107609 |
SPRING.TORSION This part replaces 532178102. Price: $1.99 |
| 26 |
532110452 |
Nut, Push Price: $1.99 |
| 27 |
532180655 |
DEFLECTOR.ASM.BLACK.48" This part replaces 532181707. Price: $29.99 |
| 28 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111016. Price: $2.02 |
| 29 |
532131491 |
Rod, Hinge Price: $1.99 |
| 30 |
532173984 |
Screw, Thdroll, Washer Head Price: $2.99 |
| 31 |
532187690 |
Washer, Spacer Mower Vented Price: $1.99 |
| 32 |
532173436 |
Pulley, Mandrel Price: $7.99 |
| 33 |
532400234 |
NUT, LOCK This part replaces 532178342. Price: $3.99 |
| 36 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: $2.99 |
| 37 |
532177968 |
Pulley, Idler, Flat Price: $14.99 |
| 39 |
532174375 |
Pulley, Idler, Driven Price: $22.99 |
| 42 |
532165723 |
Spacer Retainer This part replaces 532122052. Price: $2.99 |
| 43 |
532174373 |
Arm, Idler Secondary Price: $8.99 |
| 45 |
532180806 |
Cover, Mandrel Deck Price: $11.99 |
| 46 |
532137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: $2.49 |
| 48 |
532174368 |
V-Belt, Mower, Primary Price: $35.99 |
| 49 |
839000600 |
Nut, Lock 3/8-16 unc Price: Call Us |
| 50 |
872110612 |
Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5 Price: $3.99 |
| 52 |
532175820 |
Pulley Idler Flat 46 Pri. Drive Price: $19.99 |
| 54 |
874780616 |
Bolt Fin Hex 3/8-16 x 1 Price: $3.99 |
| 55 |
872110608 |
Bolt, Carriage 3/8-16 x 1 Gr. 5 This part replaces 872140608. Price: $3.99 |
| 56 |
532155986 |
Bar Pnt Adjusting Wheel Gauge Price: $5.99 |
| 57 |
532156941 |
Pin Head Rivet Price: $2.99 |
| 72 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 91 |
532180535 |
Bracket, Asm Noseroller, RH 48 Price: $2.99 |
| 92 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 94 |
532176066 |
Roller, Nose 48" Price: $6.99 |
| 95 |
532180534 |
Bracket, Asm Noseroller LH 48 Price: $2.99 |
| 97 |
532178515 |
Washer Hardened Price: $2.99 |
| 98 |
532179479 |
Spring Primary Drive Price: $2.99 |
| 99 |
532193195 |
PULLEY.V.IDLER This part replaces 532184058. Price: $37.99 |
| 100 |
872110616 |
Bolt RDHD Sqnk 3/8-16 unc x 2 Price: $3.99 |
| 110 |
532175016 |
Arm Spring Secondary Price: $3.99 |
| 111 |
532174610 |
Arm Spring Fixed Tension Price: $4.99 |
| 113 |
872110506 |
Bolt Rdhd Sqnk 5/16-18 unc x 3/4 Price: $3.99 |
| 116 |
532193406 |
BOLT.SHOULDER.3/8-16X3-5/8 This part replaces 532184219. Price: $1.99 |
| 117 |
532133957 |
Gauge Wheel Price: $9.99 |
| 118 |
873680600 |
Nut This part replaces 873930600. Price: $1.99 |
| 119 |
734117201 |
WASHER This part replaces 819121414. Price: $1.99 |
| 121 |
532174371 |
Spring Secondary Drive Price: $4.99 |
| 126 |
532174372 |
Arm, Idler, Primary Deck Price: $8.99 |
| 130 |
817000616 |
Screw 3/8-16 x 1.0 Price: $3.99 |
| 131 |
819131606 |
Washer 13/32 x 1 x 6 Ga. Price: $3.99 |
| 132 |
817000612 |
Screw 3/8-16 x 3/4 Price: $2.99 |
| 182 |
532179127 |
Rod Roller Nose Price: $4.49 |
| 183 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $1.99 |
| 184 |
532173979 |
Keeper Belt Idler Price: $3.99 |
