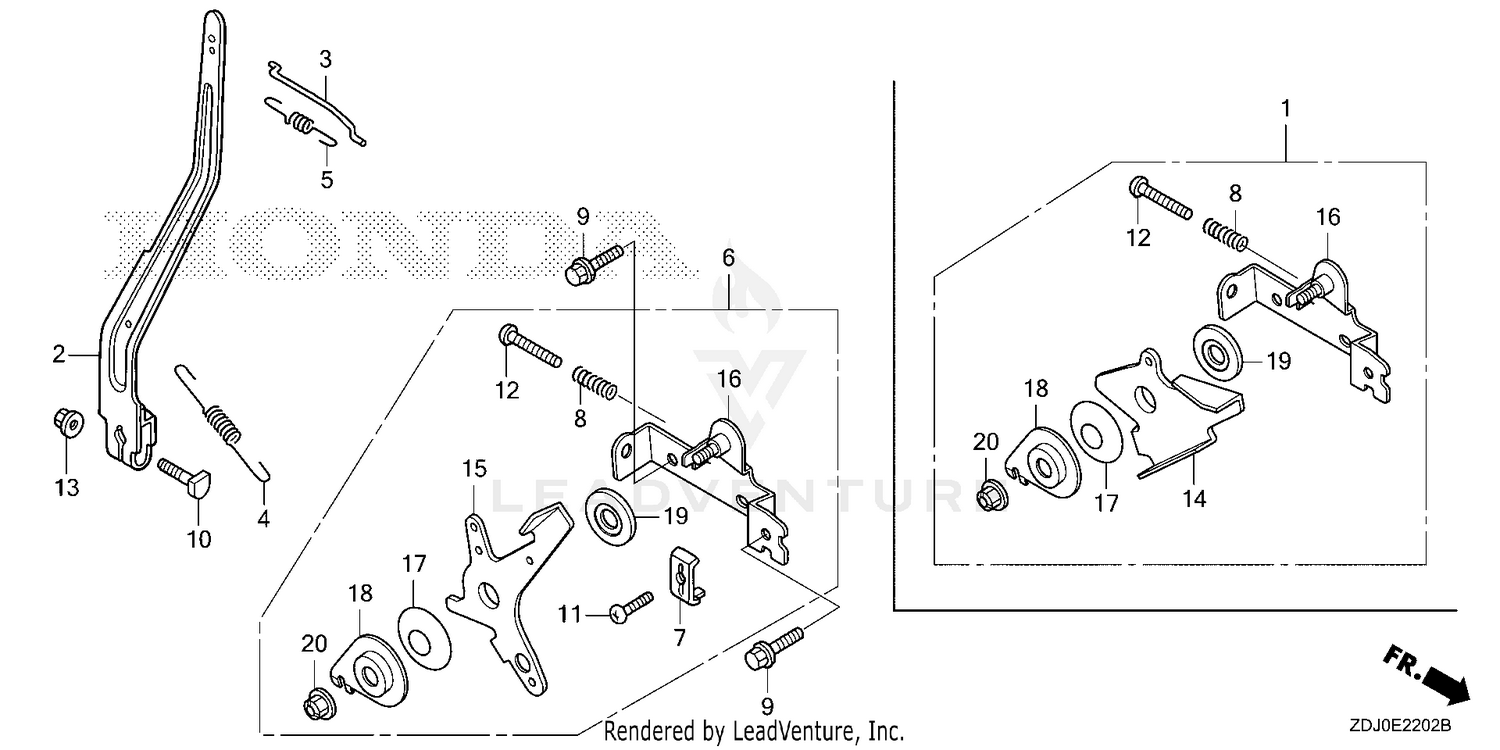

| Ref | Part Number | Description |
|---|
| 2 |
16551-Z0D-010 |
ARM, GOVERNOR Price: $16.76 |
| 3 |
16555-Z0D-000 |
ROD, GOVERNOR Price: $2.44 |
| 4 |
16561-Z0D-V20 |
SPRING, GOVERNOR Price: $3.40 |
| 5 |
16562-Z0D-010 |
SPRING, THROTTLE RETURN Price: $1.06 |
| 6 |
16570-ZG0-W00 |
SEE PART DETAILS - PRI; CONTROL ASSY. (STD) Price: $34.00 |
| 7 |
16576-891-000 |
HOLDER, CABLE (Honda Code 0800466). Price: $5.08 |
| 8 |
16584-883-300 |
SPRING, CONTROL ADJUSTING Use from Engine SN 2327377. Price: $5.00 |
| 9 |
90014-952-000 |
BOLT, FLANGE (6X14) (Honda Code 0803619). Price: $2.94 |
| 10 |
90015-Z5T-000 |
BOLT, GOVERNOR ARM Price: $0.56 |
| 11 |
93500-05016-0A |
SEE PART DETAILS - PRI; SCREW, PAN (5X16) (Honda Code 0145557). Price: $1.14 |
| 12 |
93500-05025-0A |
SEE PART DETAILS - PRI; SCREW, PAN (5X25) (Honda Code 0145565). Price: $1.18 |
| 13 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
| 15 |
16570-ZG0-W00 |
SEE PART DETAILS - PRI; CONTROL ASSY. (STD) Price: $34.00 |
| 16 |
16572-ZG0-000 |
BASE, CONTROL (STD) Price: $17.92 |
| 17 |
16574-ZE1-000 |
SPRING, LEVER (Honda Code 1427384). Price: $4.12 |
| 18 |
16575-ZG0-000 |
WASHER, CONTROL LEVER Price: $5.70 |
| 19 |
16578-ZE1-000 |
SPACER, CONTROL LEVER (Honda Code 1427400). Price: $5.38 |
