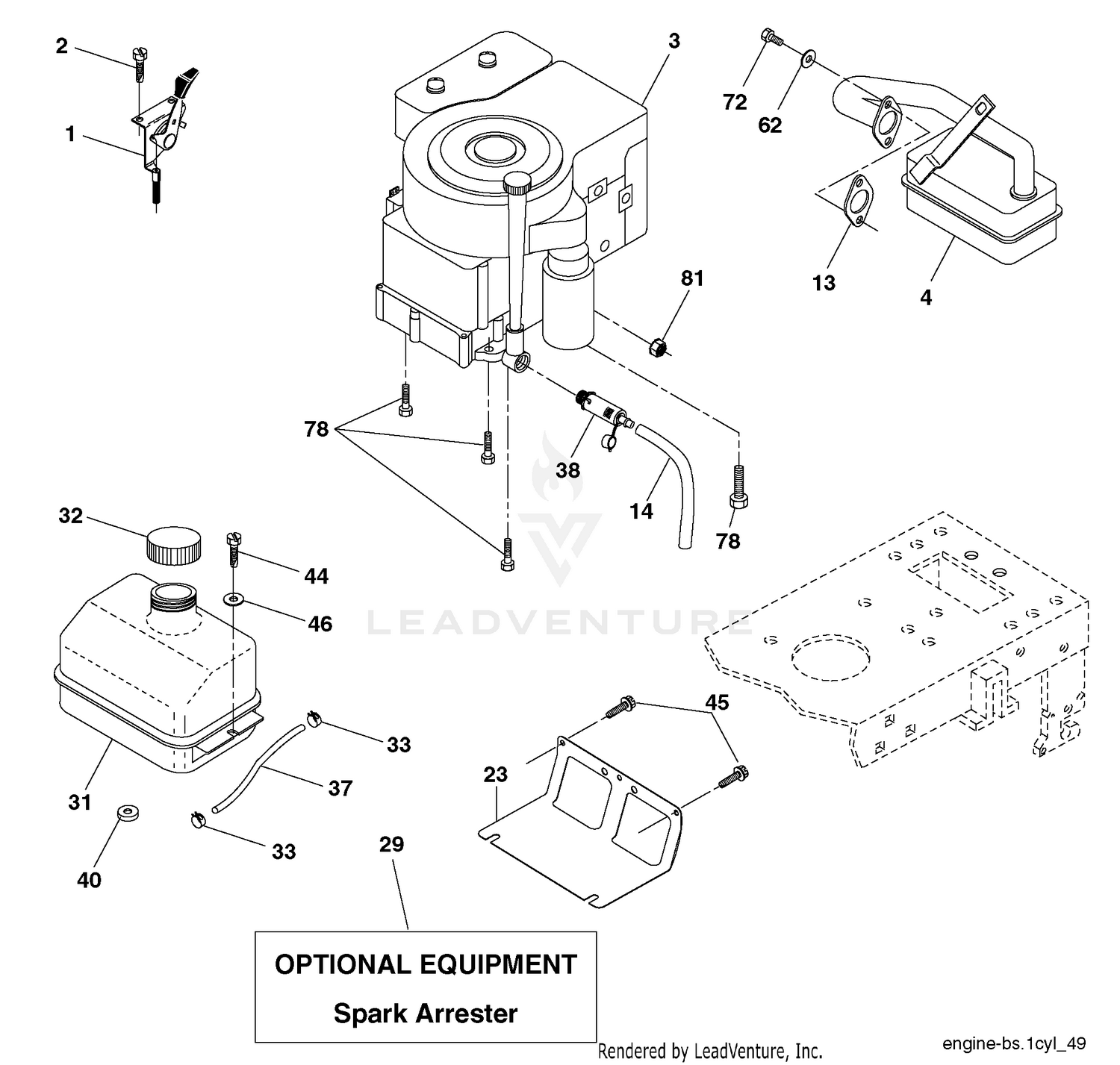

| Ref | Part Number | Description |
|---|
| 1 |
170551 |
Control Th/ch Flag Price: Call Us |
| 2 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 3 |
59-8040 |
SPRING Price: $7.29 |
| 4 |
137352 |
Muffl er Exhaust B&S Price: Call Us |
| 4 |
59-8080 |
WASHER Price: $18.05 |
| 5 |
59-8170 |
WASHER Price: $8.09 |
| 6 |
63-4820 |
BLOCK-DETENT Price: $275.22 |
| 7 |
59-8070 |
LOCKWASHER Price: $0.49 |
| 8 |
63-4830 |
CAPSCREW Price: $0.85 |
| 9 |
59-8060 |
PLUG Price: $22.35 |
| 10 |
59-8050 |
SPRING Price: $15.65 |
| 11 |
59-8150 |
PAWL Price: $36.37 |
| 12 |
63-4840 |
SCREW-DETENT Price: $172.21 |
| 13 |
165291 |
Gasket Eng 1 313 Id Tin Plated Price: Call Us |
| 13 |
59-8100 |
WASHER Price: $8.63 |
| 14 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 14 |
59-8180 |
WASHER Price: $33.37 |
| 16 |
59-8190 |
WIPER Price: $10.41 |
| 17 |
63-4780 |
VALVE-RELIEF Price: $485.19 |
| 18 |
63-4850 |
PLUNGER Price: $88.33 |
| 19 |
63-4510 |
SPRING Price: $38.85 |
| 20 |
63-4860 |
CIRCLIP Price: $28.63 |
| 21 |
59-8230 |
PLUG Price: $47.93 |
| 22 |
AU114313A1 |
O-RING This part replaces 59-7780. Price: $2.40 |
| 23 |
169837 |
Shield BRN/DBR Guard Price: Call Us |
| 23 |
302-66 |
FITTING-GREASE Price: $5.13 |
| 24 |
59-8140 |
RING Price: $1.44 |
| 25 |
59-8160 |
PLUG Price: $18.66 |
| 26 |
59-8120 |
RING Price: $3.69 |
| 27 |
66-5420 |
SLEEVE Price: $29.51 |
| 28 |
60-4550 |
SWITCH-MICRO Price: $318.29 |
| 29 |
137180 |
Kit Spark Arrestor (Flat Scrn) Price: Call Us |
| 29 |
3256-12 |
WASHER-FLAT This part replaces 3256-13. Price: $0.99 |
| 30 |
63-4440 |
O-RING Price: $13.18 |
| 31 |
187750 |
Tank Fuel Front Price: Call Us |
| 31 |
3253-19 |
WASHER-LOCK Price: $0.25 |
| 32 |
140527 |
Cap Asm Fuel Price: Call Us |
| 32 |
66-5430 |
SCREW Price: $10.07 |
| 33 |
123487X |
Clamp Hose Price: Call Us |
| 33 |
66-5440 |
NUT-HEX Price: $1.07 |
| 34 |
59-7860 |
WASHER Price: $4.31 |
| 37 |
137040 |
Line Fuel 20" Price: Call Us |
| 38 |
181654 |
Plug Drain Oil Price: Call Us |
| 40 |
124028X |
Bushing Snap Nyl Blk Fuel Line Price: Call Us |
| 44 |
17670412 |
Screw Thdrol 1/4-20 x 3/4 Price: Call Us |
| 45 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 46 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 62 |
10010500 |
Washer Split Price: Call Us |
| 72 |
71070512 |
Screw Hex Hd Cap 5/16-18 x 3/4 Price: Call Us |
| 78 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
